01 - Body
02 - Control System
03 - Door
New Model Search:

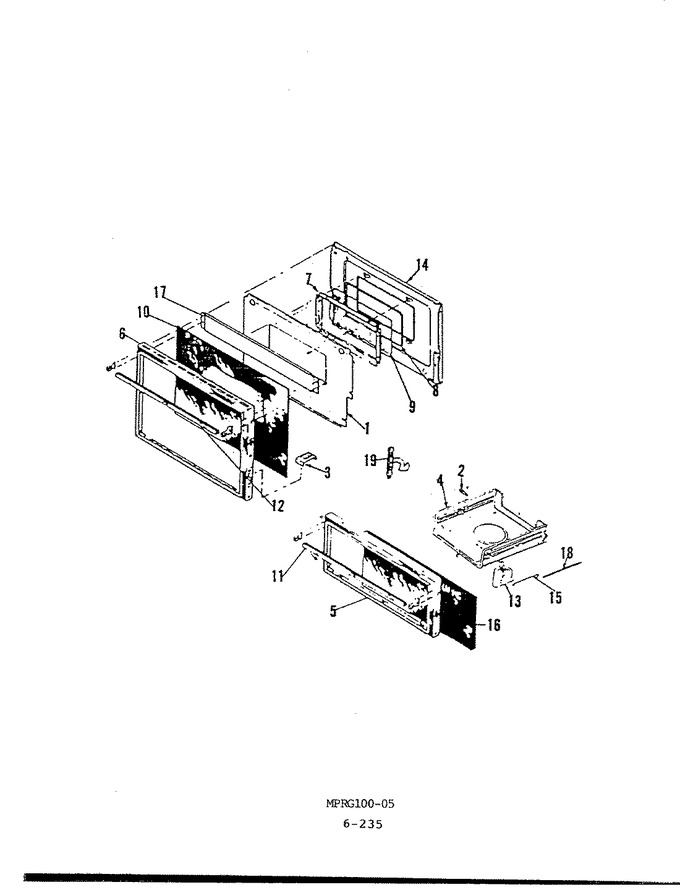

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F094 | Baffle, Oven Door | 1 |
|
- | ||||
| 2 | 1135208 | Catch | 1 |
|
- | ||||
| 3 | 7712E031 | Clip, Door Glass | 1 |
|
- | ||||
| 4 | 0384226 | Drawer Assy. | 1 |
|
- | ||||
| 5 | 1286251 | Frame | 1 |
|
- | ||||
| 6 | 7706P178-60 | Frame, Door | 24 |
|
- | ||||
| 6 | 7706E007 | Frame, Ovn Door | 1-23 |
|
- | ||||
| 7 | 3603J013 | Frame, Window | 1 |
|
- | ||||
| 8 | 1313263 | Gasket | 1 |
|
- | ||||
| 9 | 1327100 | Glass | 1 |
|
- | ||||
| 10 | 7902E064 | + Glass, Door | 1 |
|
- | ||||
| 11 | 7701E019 | Handle, Door | 1 |
|
- | ||||
| 12 | 7701E019 | Handle, Door | 1 |
|
- | ||||
| 13 | 0528233 | Hinge | 1 |
|
- | ||||
| 13 | 2404F015 | Lining, Broiler Drawer | 1 |
|
- | ||||
| 13 | 7728E012 | Insert, Handle | 1 |
|
- | ||||
| 13 | 0528234 | Hinge | 1 |
|
- | ||||
| 14 | 2422L076 | Lining, Oven Door | 1-13 |
|
- | ||||
| 14 | 2402W091-16 | Lining Assy, Ov Dr | 14 |
|
- | ||||
| 15 | 1450200 | Link | 1 |
|
- | ||||
| 16 | 0684306X | Panel,broiler Door | 1 |
|
- | ||||
| 17 | 1726252 | Seal | 1 |
|
- | ||||
| 17 | 3804F040 | Retainer, Glass | 1 |
|
- | ||||
| 17 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 4 |
|
$ 11.95 | ||||
| 17 | 7101E083 | Screw, Oven Door | 1 |
|
- | ||||
| 18 | 1790279 | Spring, Broiler Drawer | 1 |
|
- | ||||
| 19 | Y0112241 | Stop, Door | 1 |
|
- |
