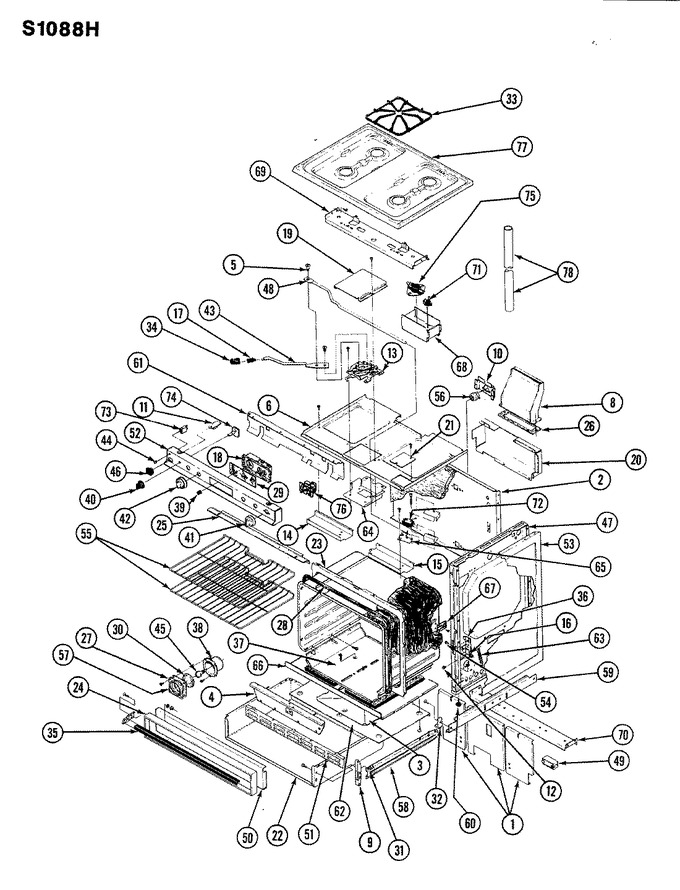

SELECT A DIAGRAM

01 - Body


02 - Control System


03 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F066-45		Back, Broiler Section	1	Appelez-nous	-
2	3601W130-45		Baffle, Bake & Broil	1	Appelez-nous	-
2	4002F070-20		Back, Main	1	Appelez-nous	-
2	3601W129-13		Baffle, Assy	1	Appelez-nous	-
3	3601F116-45		Baffle	1	Appelez-nous	-
4	7401P005-60		Cap, Terminal Block	1	Appelez-nous	-
4	3601W125-12		Baffle, Ovn Front	1	Appelez-nous	-
4	7401P015-60		Block, Terminal	1	Appelez-nous	-
5	7116P002-60		Bolt, Door Lock	1	Appelez-nous	-
6	4011F075-80		Box, Burner	1	Appelez-nous	-
7	2205F012-13		Bottom, Oven	1	Appelez-nous	-
8	3802F050-45		Brace, Inner Side	1	Appelez-nous	-
8	3802F076-51		Brace, Inner Side	1	Appelez-nous	-
8	4006W026-13		Box, Flue	1	Appelez-nous	-
8	3801F022-45		Bracket, Disconnect	1	Appelez-nous	-
8	3802F071-80		Brace, Main Top	1	Appelez-nous	-
8	3801F093-51		Bracket	1	Appelez-nous	-
9	3801F115-51		Bracket, Drawer	1	Appelez-nous	-
10	3801F024-51		Bracket	1	Appelez-nous	-
11	3801F047-34		Bracket,control Panel (r)	1	Appelez-nous	-
11	3801F049-34		Bracket,control Panel (l)	1	Appelez-nous	-
11	3801F101-80		Bracket, Tie Down	1	Appelez-nous	-
12	1784202		Bumper	1	Appelez-nous	-
13	8002P015-60		Catch, Dr Lk	1	Appelez-nous	-
14	3818F032-80		Channel - Air Duct	1	Appelez-nous	-
14	3818F025-45		Channel, Air	1	Appelez-nous	-
15	3818F027-45		Channel, Switch	1	Appelez-nous	-
16	7112P019-60		Clip, Hinge Pin	1	Appelez-nous	-
17	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	1		Immediately	$ 11.07
17	7112P045-60		Clip, Wire	1	Appelez-nous	-
17	7112P051-60		Clip, Retainer	1	Appelez-nous	-
17	7112P003-60		Clip, Latch Handle	1	Appelez-nous	-
18	7601P063-60		Clock	1	Appelez-nous	-
19	4005F137-80		Cover, Catch Assy.	1	Appelez-nous	-
20	4005F176-80		Cover, Module	1	Appelez-nous	-
20	4005F258-51		Cover, Oven Valve	1	Appelez-nous	-
21	4005F139-51		Cover, Switch	1	Appelez-nous	-
22	3405F008-20		Drawer Assy.	1	Appelez-nous	-
23	2201F061-23		Front, Oven Upper	1	Appelez-nous	-
24	7706P180-60		Frame	1	Appelez-nous	-
25	4012F013-80		Front, Burner Box	1	Appelez-nous	-
26	7201P013-60		Gasket	1	Appelez-nous	-
27	7201P015-60		Gasket, Lamp Retainer	1	Appelez-nous	-
28	7201P023-60		Gasket, Vent	1	Appelez-nous	-
28	7201P036-60		Gasket, Oven	1			$ 118.90
29	7902P027-60		Glass, Clock	1	Appelez-nous	-
30	7902P057-60		Glass, Lamp Guard	1	Appelez-nous	-
31	8016P005-60		Glide, Front	1	Appelez-nous	-
32	8016P004-60		Glide, Drawer	1	Appelez-nous	-
33	2003W001-00		Grate	1	Appelez-nous	-
34	7701P068-60		Handle, Latch (blk)	1	Appelez-nous	-
35	7701P047-60		Handle, Door	1	Appelez-nous	-
36	3418A029-34		Hinge Assy. (lt)	1			$ 48.47
36	3418A030-34		Hinge Assy. (rt)	1	Appelez-nous	-
37	4001F036-45		Housing, Bake Burner	1	Appelez-nous	-
38	4396923		Insert   (Replaces: 3413F002-11)	1		Immediately	$ 52.04
38	4001F020-23		Housing, Lamp	1	Appelez-nous	-
39	7711P126-60		Knob, Clock	1	Appelez-nous	-
40	7711P381-60		Knob, Selector	20	Appelez-nous	-
40	7711P261-60		Knob, Selector	1-19	Appelez-nous	-
41	7711P104-60		Knob, Therm	1-19	Appelez-nous	-
41	7731P020-60		Knob, Thermostat	20	Appelez-nous	-
42	WP7711P135-60		Knob, Valve   (Replaces: 7733P038-60)	20			$ 25.06
42	7711P174-60		Knob, Valve	1-19	Appelez-nous	-
43	8009P010-60		Lever, Door Lock	1	Appelez-nous	-
44	7730P001-60		Lens, Signal Lamp	1	Appelez-nous	-
45	40A15		Bulb, Oven   (Replaces: 7407P026-60)	1		Immediately	$ 1.98
46	7407P028-60		Light, Signal	1	Appelez-nous	-
47	4009W034-80		Lining Assy, Inner Side	1	Appelez-nous	-
48	7807P004-60		Link, Switch	1	Appelez-nous	-
49	7431P006-60		Module, Spark	1	Appelez-nous	-
49	4396923		Pan, Broil   (Replaces: 3401F004-11)	1		Immediately	$ 52.04
50	2416F027-70		Panel, Storage Door Blk	1	Appelez-nous	-
51	2614F008-80		Panel, Lower Front	1	Appelez-nous	-
52	7712A019-60		Trim Assy, Manifold	1	Appelez-nous	-
53	2618F050-74		Panel, Side	1	Appelez-nous	-
53	2618F050-76		Panel, Side	1	Appelez-nous	-
53	2618F050-71		Panel, Side	1	Appelez-nous	-
54	7113P002-60		Pin, Hinge	1			$ 9.05
55	7801P011-60		Rack, Oven	1	Appelez-nous	-
56	7408P002-60		Receptacle, Lamp	1	Appelez-nous	-
57	3804F012-45		Retainer, Lamp Guard	1	Appelez-nous	-
58	3406F020-80		Runner, Inner	1	Appelez-nous	-
59	3406F007-80		Runner, Outer	1	Appelez-nous	-
60	7101P055-60		Screw, Leveling Leg	1	Appelez-nous	-
61	3604F085-51		Shield, Manifold Cov	1	Appelez-nous	-
62	3604F083-45		Shield, Svc Drawer	1	Appelez-nous	-
62	7214P004-60		Sleeve, Heat Shrink	1	Appelez-nous	-
63	WP7803P058-60		Spring   (Replaces: 7803P002-60)	1			$ 16.55
64	3807F195-45		Support, Catch Assy.	1	Appelez-nous	-
65	3807F193-45		Support, Lock Switch	1	Appelez-nous	-
66	3807W207-45		Support, Ov Bot Bar Assy	1	Appelez-nous	-
67	3807F205-45		Support, Oven Rear	1	Appelez-nous	-
68	3807F219-51		Support, Therm Disc	1	Appelez-nous	-
69	3807F221-80		Support, Top Burner	1	Appelez-nous	-
70	3807F216-45		Support, Valve	1	Appelez-nous	-
71	7403P187-60		Switch, Hi Limit	18	Appelez-nous	-
71	7403P004-60		Switch, Therm Lock	1-17	Appelez-nous	-
72	7403P077-60		Switch----na	1	Appelez-nous	-
73	7403P067-60		Switch, Rocker (blk)   (Replaces: 7403P102-60)	1			$ 91.35
74	7403P092-60		Switch, Selector	1	Appelez-nous	-
75	7403P091-60		Switch, Thermal	1	Appelez-nous	-
76	7515P020-60		Thermostat, Ov	1	Appelez-nous	-
77	2001F065-30		Top, Main Stainless	1	Appelez-nous	-
77	7724P013-60		Trim, Vent Cover	1	Appelez-nous	-
78	8026P006-60		Tube, Air	1	Appelez-nous	-
78	7402P014-60		Cord, Power	1	Appelez-nous	-
79	8112P009-60		Manual, Use & Care	1-14	Appelez-nous	-
79	8112P034-60		Manual, Use & Care	15	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
