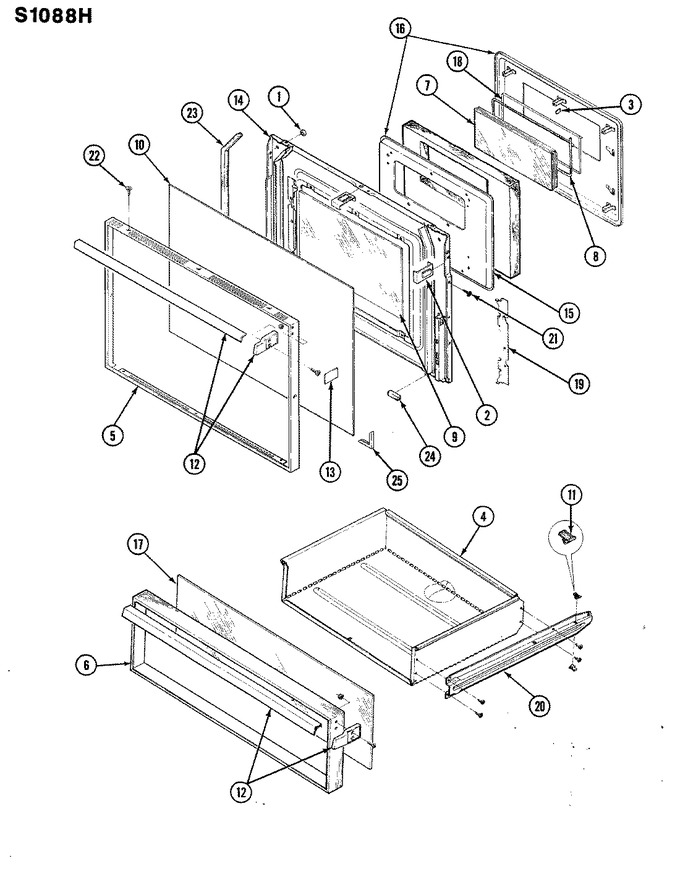

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8003P002-60		Bumper Door (round)	1	Appelez-nous	-
1	8002P015-60		Catch, Dr Lk	1	Appelez-nous	-
2	7112P034-60		Clip, Door	1	Appelez-nous	-
3	7112P051-60		Clip, Retainer	1	Appelez-nous	-
4	3405F008-20		Drawer Assy.	1	Appelez-nous	-
5	7706P222-60		Frame, Oven Door	1-13	Appelez-nous	-
5	7706P243-60		Frame, Door	14	Appelez-nous	-
6	7706P180-60		Frame	1	Appelez-nous	-
7	7706P177-60		Frame, Window	1	Appelez-nous	-
8	7201P018-60		Gasket, Window	1	Appelez-nous	-
9	7902P097-60		Glass, Inner	1			$ 63.87
10	7902P101-60		Glass, Window Outer	1	Appelez-nous	-
10	7902P276-60		Glass, Door	1	Appelez-nous	-
10	7902P103-60		Glass, Window	1	Appelez-nous	-
11	8016P004-60		Glide, Drawer	1	Appelez-nous	-
11	8016P005-60		Glide, Front	1	Appelez-nous	-
12	7701P047-60		Handle, Door	1	Appelez-nous	-
13	7728P012-60		Insert, Oven Door Handle	1	Appelez-nous	-
14	2402W125-12		Lining Assy, Ov Dr	1-12	Appelez-nous	-
14	2402W128-15		Lining	13	Appelez-nous	-
15	2410F016-51		Pad, Inner	1	Appelez-nous	-
16	2410W029-12		Pad Assy, Ov. Dr.	1	Appelez-nous	-
17	2416F027-70		Panel, Storage Door Blk	1	Appelez-nous	-
18	3804F022-45		Retainer	1	Appelez-nous	-
19	3804F051-80		Retainer, Glass	1	Appelez-nous	-
20	3406F020-80		Runner, Inner	1	Appelez-nous	-
20	3406F007-80		Runner, Outer	1	Appelez-nous	-
21	7107P017-60		Rivet	1	Appelez-nous	-
22	7101P013-60		Screw, Special	1	Appelez-nous	-
23	7208P002-60		Seal	1	Appelez-nous	-
24	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	1			$ 11.95
25	8010P045-60		Spacer, Glass Corner	1	Appelez-nous	-
25	3420A033-34		Stop, Oven Door	1	Appelez-nous	-
25	WP7803P058-60		Spring   (Replaces: 7803P002-60)	1			$ 16.55
