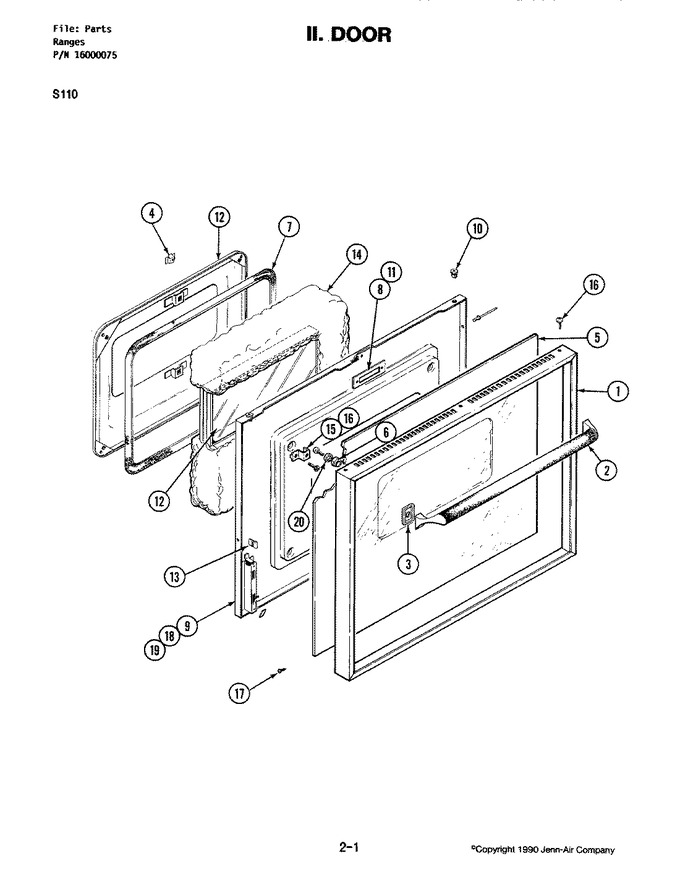

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 705002 | Frame, Oven Door (ss) | 1 |
|
- | ||||
| 2 | Y703429 | Handle, Door | 1 |
|
- | ||||
| 3 | Y703430 | Pad, Mounting | 1 |
|
- | ||||
| 4 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 5 | 703617K | Glass, Screened----na | 1 |
|
- | ||||
| 6 | Y703433 | Bushing | 1 |
|
- | ||||
| 7 | WPY702338 | Seal (lwr) (Replaces: Y703611) | 1 |
|
Immediately | $ 172.53 | |||
| 8 | 703275 | Plate, Latch (lower) | 1 |
|
- | ||||
| 9 | 712567 | Liner | 1 |
|
- | ||||
| 10 | 701643 | Nut, Push In | 1 |
|
- | ||||
| 11 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 12 | 712224 | Plug | 1 |
|
- | ||||
| 13 | 704487 | Clip | 1 |
|
- | ||||
| 14 | DE81-07248A | Insulation, Bottom (Replaces: 703612) | 1 |
|
- | ||||
| 15 | 703289 | Stand-off Bracket (lower) | 1 |
|
- | ||||
| 16 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 17 | 704745 | Screw, Flat | 1 |
|
- | ||||
| 18 | Y703449 | Washer | 1 |
|
- | ||||
| 19 | 703613 | Spacer, Corner (lwr) | 1 |
|
- | ||||
| 20 | Y703431 | Palnut | 1 |
|
- |
