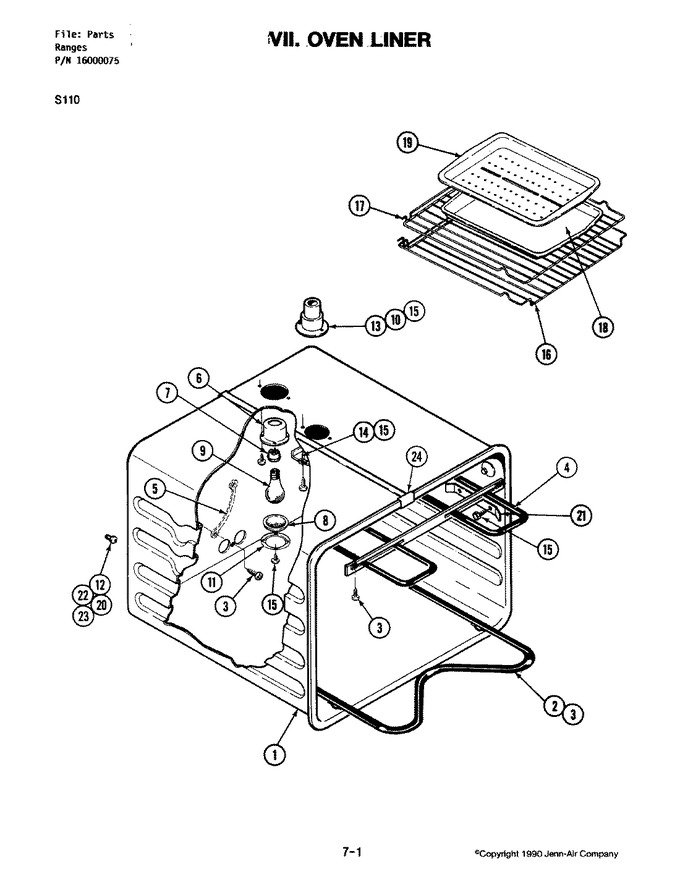

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	712584		Liner	1	Appelez-nous	-
2	WPY04100021		Element, Bake (240v)   (Replaces: Y704664)	1			$ 179.82
3	WP179051		Screw   (Replaces: 708764)	1		Immediately	$ 7.16
4	WPY04100514		Element, Broil (240v)   (Replaces: Y704666)	1			$ 138.97
5	702643		Wire, Ground	1	Appelez-nous	-
6	704142		Receptacle, Holder	1	Appelez-nous	-
7	Y704145		Receptacle, Snap-in	1	Appelez-nous	-
8	Y704143		Lens, Light	1	Appelez-nous	-
9	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	1		Immediately	$ 16.80
10	702290		Tube, Vent	1	Appelez-nous	-
11	Y704144		Retainer, Lens	1	Appelez-nous	-
12	705341		Screw	1	Appelez-nous	-
13	701738		Tube, Vent	1	Appelez-nous	-
14	Y702632		Shield, Vent	1	Appelez-nous	-
15	WP1163283		Screw   (Replaces: Y703741)	1			$ 6.47
16	Y704662		Rack, Oven (offset)	1	Appelez-nous	-
17	Y704660		Rack, Oven	1			$ 104.03
18	4396923		Pan, Broil   (Replaces: 708810)	1		Immediately	$ 52.04
19	4396923		Rack, Broil Pan   (Replaces: Y708811)	1		Immediately	$ 52.04
20	715294		Nut, Tee	1	Appelez-nous	-
21	Y701541		Clip, Bulb	1	Appelez-nous	-
21	702282		Insulation-sides,top,bottom	1	Appelez-nous	-
21	702283		Insulation-back	1	Appelez-nous	-
22	WP210720		Rivet   (Replaces: 701662)	1			$ 12.14
22	701736		Washer	1	Appelez-nous	-
23	705341		Screw	1	Appelez-nous	-
24	Y702618		Clip, Oven	1	Appelez-nous	-
