Diagram for 02 - Door Parts
02 - Door Parts

Diagram for 03 - Cabinet Parts
03 - Cabinet Parts

Diagram for 04 - Shelves And Supports
04 - Shelves And Supports

Diagram for 05 - System And Automatic Defrost Parts
05 - System And Automatic Defrost Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303001486 Gasket-freezer Appelez-nous -
2 5308015544 Gasket-refrigerator Appelez-nous -
3 5318350701 Inner Panel-refr Appelez-nous -
4 3015420 Rack-refr Door (2) Appelez-nous -
5 5317828701 Support-rh (3) Special Order $ 8.18

6 5317828401 Support-lh (3) Special Order $ 11.48

7 G161776-51 Dairy Door-butter Appelez-nous -
8 3015419 Rack-freezer Door Appelez-nous -
9 5318350601 Inner Panel-freezer Appelez-nous -
10 5303001308 Plug-almond Appelez-nous -
11 3916272 Freezer Door-almond Appelez-nous -
12 3205334 Nameplate-assy Appelez-nous -
14 5308000181 Plug-almond (12) Appelez-nous -
15 3916277 Refrigerator Door-almond Appelez-nous -
16 5303007739 Insulation, Bulk Appelez-nous -
17 5318945101 Handle, End-bottom Appelez-nous -
18 5303201377 Grip-handle (2) Special Order $ 60.90

19 5318945301 Handle End, (2) Appelez-nous -
20 5318945201 Handle End-top Appelez-nous -
21 5308011745 Screw Special Order $ 10.38

22 5308012007 Hinge Bearing (8) Appelez-nous -
18A 5303200995 Insert-grip (2) (non-illustrated) Appelez-nous -
3A 218843801 Screw   (Replaces: 5303001001) Special Order $ 14.41

9A 218843801 Screw   (Replaces: 5303001001) Special Order $ 14.41


    View Diagram in Separate Window     Print Icon   Print Part List

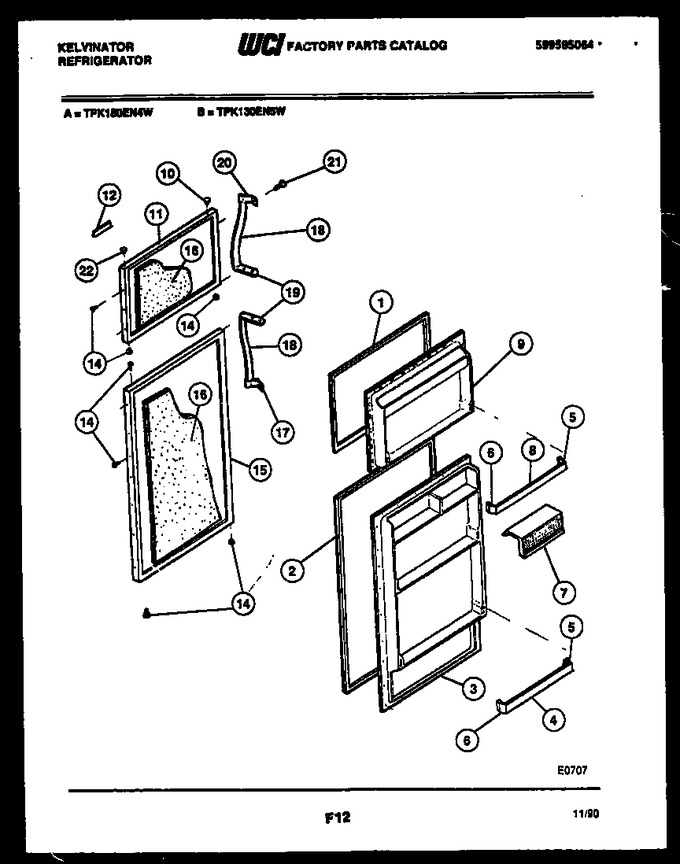

Diagram for TPK180EN4D
