SELECT A DIAGRAM

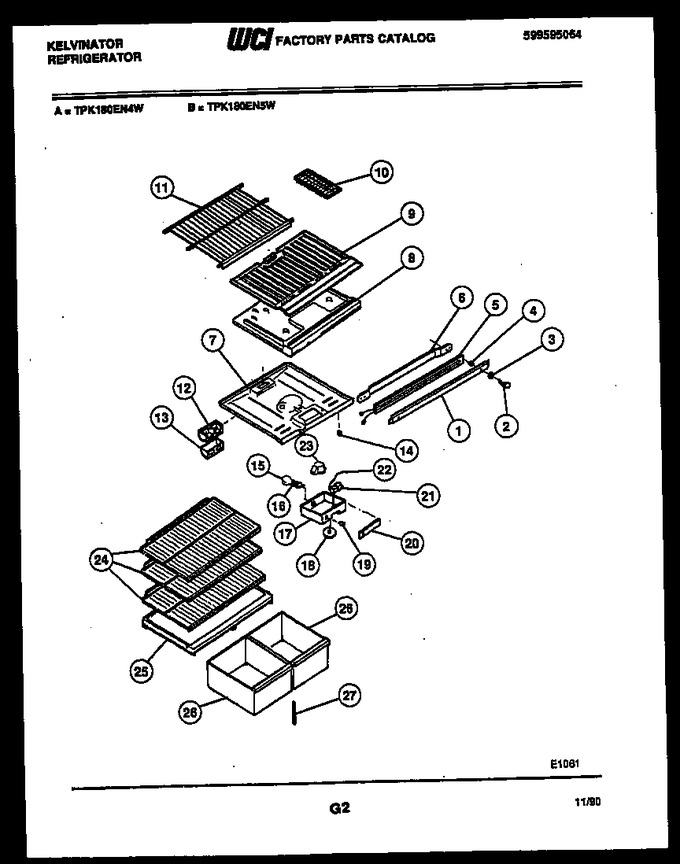

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200370		Mullion, Almond		Appelez-nous	-
2	5308012258		Screw				$ 2.25
3	5303206754		Washer-no. 10 Steel (2)		Appelez-nous	-
4	5303200464		Spacer, Mullion (2)		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	5303016367		Top Panel-refrigerator W/snap Bushing		Appelez-nous	-
8	5303001504		Divider, Styrofoam		Appelez-nous	-
9	5303211427		Bottom Panel, Freezer		Appelez-nous	-
10	5315637618		Ice Tray (2)		Appelez-nous	-
11	G182730-02		Shelf-freezer		Appelez-nous	-
12	5308000071		Air Deflector		Appelez-nous	-
13	5303001546		Cover, Deflector		Appelez-nous	-
14	5309918806		Light Switch			Immediately	$ 21.97
15	5303001179		Light Bulb		Appelez-nous	-
16	5308000129		Light Socket				$ 62.16
17	5303015152		Control Box		Appelez-nous	-
18	5308010011		Knob-temperature Control		Appelez-nous	-
19	5303001670		Switch-energy Saver		Appelez-nous	-
20	G189710		Label-control Box		Appelez-nous	-
21	5303200810		Control-temperature				$ 126.87
22	5308037932		Sleeve-plastic Tube		Appelez-nous	-
23	5303007400		Timer-defrost		Appelez-nous	-
24	5317851102		Shelf-refrigerator (3)		Appelez-nous	-
25	3015045		Cover-pan		Appelez-nous	-
26	3015422		Pan-storage (2)		Appelez-nous	-
27	5303205987		Support - Pan Cover Adjustable				$ 48.41
11A	3201150		Cap-protector (2) (non-illustrated)				$ 4.57
17A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
7A	5303001380		Screw		Appelez-nous	-
7B	5303212518		Snap Bushing (non-illustrated)		Appelez-nous	-
8A	3001383		Wiring Harness, Divider (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
