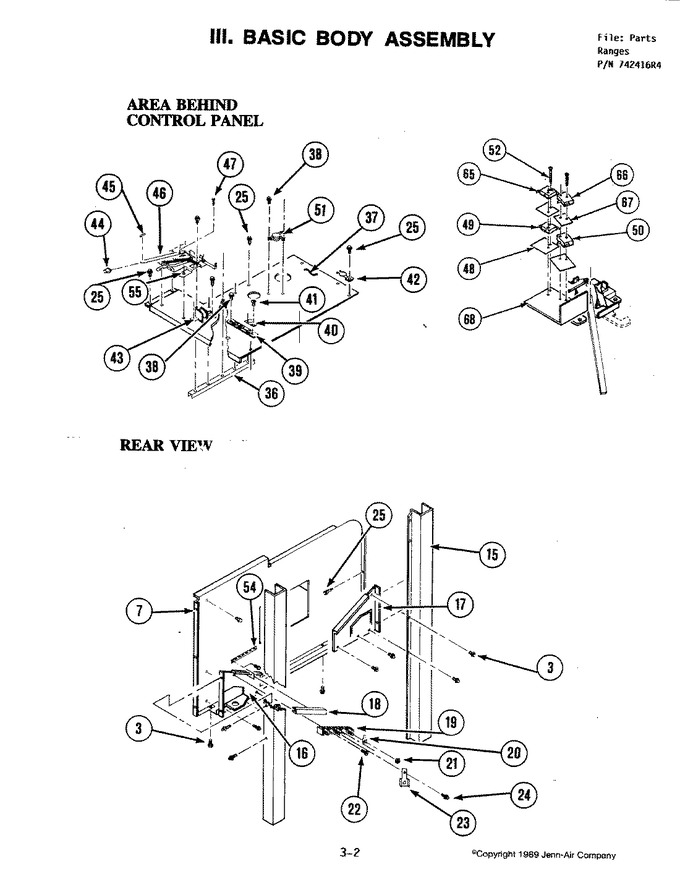

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 702329 | Closure, Front | 1 |
|
- | ||||
| 2 | Y712001 | Container,grease Assembly | 1 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 4 | 712002 | Angle, Mount | 1 |
|
- | ||||
| 5 | WPW10339879 | Tie, Cable (Replaces: 701678) | 1 |
|
$ 7.11 | ||||
| 6 | Y702319 | Panel, Bottom & Side (rt) | 1 |
|
- | ||||
| 7 | W10124350 | Not Required Part Or See Note Cover, Louver | 1 |
|
- | ||||
| 7 | Y702306 | Back, Inner | 1 |
|
- | ||||
| 8 | 702307 | Cover, Rear (lower) | 1 |
|
- | ||||
| 9 | DE81-09758A | Panel, Side (rt) (Replaces: 702300) | 1 |
|
$ 1,127.72 | ||||
| 10 | Y702301 | Panel, Side (lt) | 1 |
|
- | ||||
| 11 | Y703487 | Hinge, Bracket | 1 |
|
- | ||||
| 11 | Y703419 | Hinge | 1 |
|
- | ||||
| 12 | 701666 | Switch, Door | 1 |
|
- | ||||
| 13 | 702658 | Bracket, Hat | 1 |
|
- | ||||
| 14 | 702333 | Cover, Access(r.h) | 1 |
|
- | ||||
| 15 | 702302 | Support, Tube | 1 |
|
- | ||||
| 16 | 702556 | Gussett (rt) | 1 |
|
- | ||||
| 17 | 702557 | Gussett (lt) | 1 |
|
- | ||||
| 18 | 702898 | Insulator | 1 |
|
- | ||||
| 19 | WP8203546 | Block, Terminal (Replaces: Y702284) | 1 |
|
Immediately | $ 27.12 | |||
| 20 | W10124350 | Not Required Part Or See Note Terminal, Male | 1 |
|
- | ||||
| 21 | 707161 | Nut | 1 |
|
- | ||||
| 22 | 701526 | Screw | 1 |
|
- | ||||
| 23 | Y702335 | Strap, Ground | 1 |
|
- | ||||
| 24 | WP71001171 | Screw (Replaces: Y712004) | 1 |
|
$ 6.26 | ||||
| 25 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 26 | 704335 | Screw | 3 |
|
- | ||||
| 26 | 704355 | Switch, Broil Cycle | 3 |
|
- | ||||
| 26 | W10124350 | Not Required Part Or See Note Screw, Truss | 1 |
|
- | ||||
| 27 | 702729 | Bracket | 1 |
|
- | ||||
| 27 | 704337 | Bracket | 3 |
|
- | ||||
| 28 | W10124350 | Not Required Part Or See Note Support, Channel | 1 |
|
- | ||||
| 28 | 712000 | Rail, Support Assembly | 1 |
|
- | ||||
| 29 | 700903 | Anchor Level | 1 |
|
- | ||||
| 30 | W11117769 | Leveler,adjust (Replaces: Y708696) | 1 |
|
Immediately | $ 16.61 | |||
| 31 | 702745 | Spacer | 1 |
|
- | ||||
| 32 | W11772394 | Screw (Replaces: 715790) | 1 |
|
Immediately | $ 10.94 | |||
| 33 | 00702462 | Washer, Conical (Replaces: 702462) | 1 |
|
$ 1,015.54 | ||||
| 34 | 702337 | Trim, Side | 1 |
|
- | ||||
| 35 | 708763 | Clip----s | 1 |
|
- | ||||
| 36 | 702697 | Bracket,stiffener | 1 |
|
- | ||||
| 37 | 702318 | Panel, Top | 1 |
|
- | ||||
| 38 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 39 | Y701623 | Block, Terminal | 1 |
|
- | ||||
| 40 | W10124350 | Not Required Part Or See Note Limiter, Thermal | 1 |
|
- | ||||
| 41 | W10124350 | Not Required Part Or See Note Screw | 1 |
|
- | ||||
| 42 | 702746 | Tie, Mount Cable | 1 |
|
- | ||||
| 43 | Y701686 | Pin, Cotter | 1 |
|
- | ||||
| 43 | Y702526 | Solenoid | 1 |
|
- | ||||
| 44 | 701670 | Knob, Lever | 1 |
|
- | ||||
| 45 | 701671 | Spring, Knob | 1 |
|
- | ||||
| 46 | Y702299 | Latch, Lever | 1 |
|
- | ||||
| 47 | 707407 | Screw | 1 |
|
$ 6.42 | ||||
| 48 | Y702350 | Insulator | 1 |
|
- | ||||
| 49 | Y702359 | Switch, Solenoid Micro | 1 |
|
- | ||||
| 50 | Y702360 | Switch, Solenoid | 1 |
|
- | ||||
| 51 | WP7403P899-60 | Switch, Hi-limit (Replaces: Y702548) | 1 |
|
Immediately | $ 181.29 | |||
| 52 | DE81-04441A | Screw (Replaces: 702380) | 1 |
|
$ 329.62 | ||||
| 53 | 712005 | Washer, Flat | 1 |
|
- | ||||
| 54 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 54 | 702336 | Angle, Oven Support | 1 |
|
- | ||||
| 54 | Y702607 | Block, Terminal | 1 |
|
- | ||||
| 55 | Y703357 | Latch Assy. | 1 |
|
- | ||||
| 56 | Y702476 | Clip, Spring | 1 |
|
- | ||||
| 57 | 702298 | Wire Harn S125 | 1 |
|
- | ||||
| 57 | 703648 | Harness, Backsplash | 1 |
|
- | ||||
| 57 | W10124350 | Not Required Part Or See Note Cord Pig Tail Supply | 1 |
|
- | ||||
| 58 | W10124350 | Not Required Part Or See Note Wire, Way | 1 |
|
- | ||||
| 59 | W10124350 | Not Required Part Or See Note Screw, Hex | 1 |
|
- | ||||
| 60 | W10124350 | Not Required Part Or See Note Enclosure, C/b | 1 |
|
- | ||||
| 61 | W10124350 | Not Required Part Or See Note Breaker, Circuit 20amp | 1 |
|
- | ||||
| 62 | W10124350 | Not Required Part Or See Note Breaker, Circuit 15amp | 1 |
|
- | ||||
| 63 | W10124350 | Not Required Part Or See Note Breacker, Circuit 30amp | 1 |
|
- | ||||
| 64 | W10124350 | Not Required Part Or See Note Screw, Hex | 1 |
|
- | ||||
| 65 | W10124350 | Not Required Part Or See Note Micro, Switch | 1 |
|
- | ||||
| 66 | W10124350 | Not Required Part Or See Note Micro, Switch | 1 |
|
- |
