SELECT A DIAGRAM

01 - Blower Assembly


02 - Body


03 - Control Panel Assembly


04 - Cooling Fan (s120)


05 - Door


06 - Internal Controls


07 - Internal Controls (s120-c)


08 - Oven


09 - Top Assembly

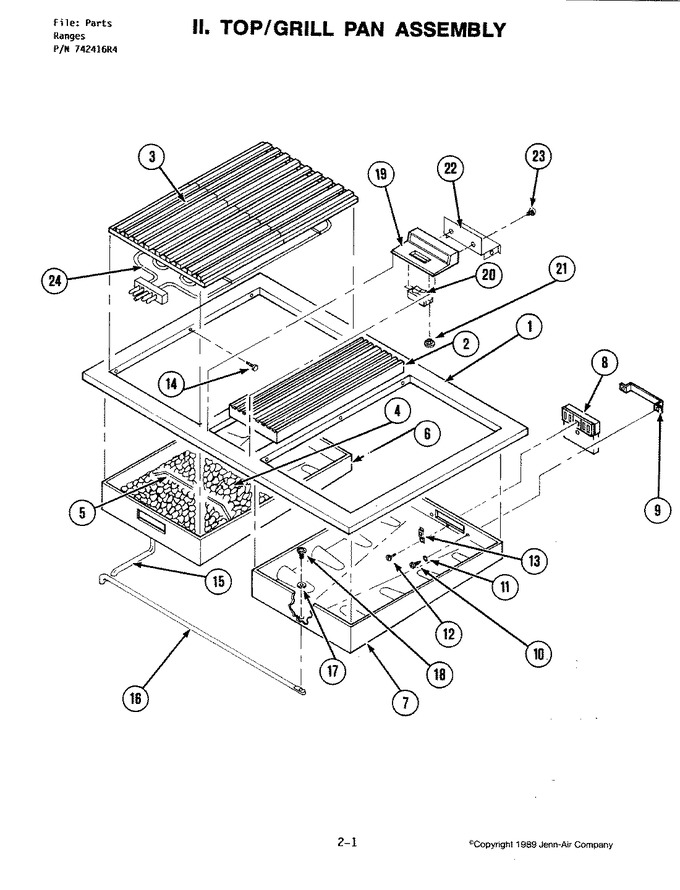

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701853		Top	1	Appelez-nous	-
2	702568		Grill, Air	1	Appelez-nous	-
3	707886		Grate	1	Appelez-nous	-
4	708929		Plate, Rock	1	Appelez-nous	-
5	700819		Support, Rock Plate	1			$ 71.81
6	Y712014		Wire, Yellow	1	Appelez-nous	-
6	712021		Wire,kit	1	Appelez-nous	-
6	Y712017		Wire, Black	1	Appelez-nous	-
6	Y712015		Wire, Red	1	Appelez-nous	-
6	701955		Pan, Grill (lt)	1	Appelez-nous	-
6	WP5708M005-60		Wire, Blue   (Replaces: Y712016)	1			$ 86.45
7	712022K		Wire, Kit   (Replaces: Y712022)	1			$ 194.34
7	WP5708M081-60		Wire, Black   (Replaces: Y712018)	1			$ 33.62
7	WP5708M005-60		Wire, Blue   (Replaces: Y712016)	1			$ 86.45
7	Y701956		Pan, Grill (rt)	1	Appelez-nous	-
7	WP5708M007-60		Wire, Yellow   (Replaces: Y712020)	1			$ 117.23
7	WP5708M008-60		Wire, Red   (Replaces: Y712019)	1			$ 87.19
8	WPY702434		Receptacle (ceramic)   (Replaces: Y702434)	1		Immediately	$ 96.61
9	Y702698		Bracket	1	Appelez-nous	-
10	WP59002061		Screw   (Replaces: Y707172)	1			$ 6.98
11	Y707664		Washer	1	Appelez-nous	-
12	WP489128		Screw   (Replaces: Y707341)	1			$ 9.79
13	74004835		Clip   (Replaces: Y702699)	1			$ 11.37
14	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
15	Y702463		Tube, Drain (left)	1	Appelez-nous	-
16	Y702327		Tube, Drain (right)	1	Appelez-nous	-
17	702747		Washer, Teflon	1	Appelez-nous	-
18	702748		Nut, Drain Tube	1	Appelez-nous	-
19	715381		Escutcheon	1	Appelez-nous	-
20	Y702546		Switch, Rocker	1	Appelez-nous	-
21	7103P166-60		Palnut   (Replaces: 715500)	1			$ 15.91
22	702581		Bracket, Filler	1	Appelez-nous	-
23	WP179051		Screw   (Replaces: 708764)	1		Immediately	$ 7.16
24	WP5700M426-60		Element, Grill   (Replaces: Y700452)	1			$ 382.26
