01 - Access Panel
02 - Blower Motor
03 - Blower Motor
04 - Body
05 - Control Panel
06 - Door
07 - Internal Controls
08 - Oven
09 - Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

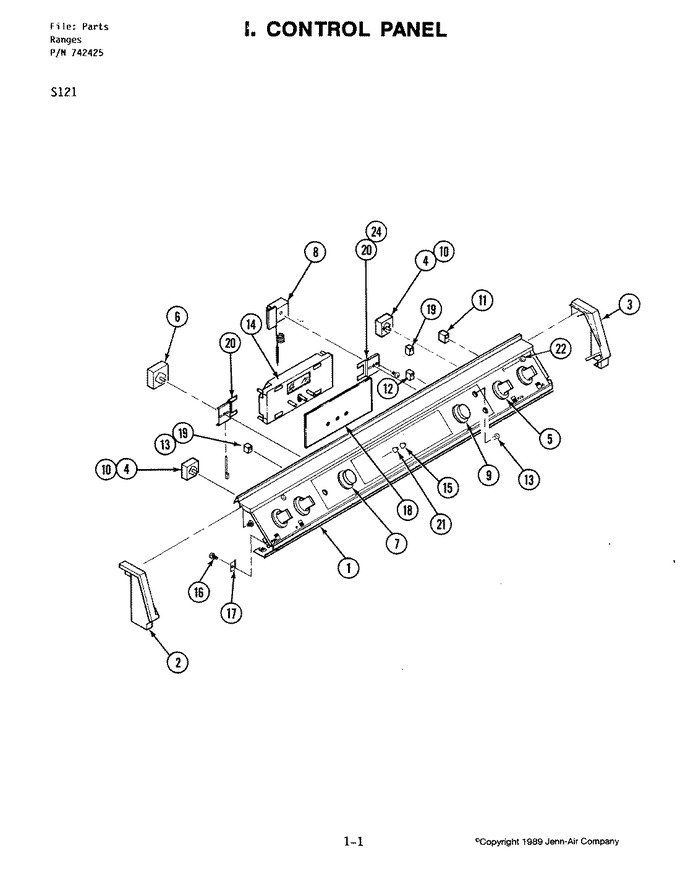

| 1 | 703686 | Panel, Control | 1 |
|
- | ||||
| 2 | 702388 | Cap, End (lt) | 1 |
|
- | ||||
| 3 | Y702387 | Cap, End (rt) | 1 |
|
- | ||||
| 4 | W11120791 | Switch, Infinite (Replaces: 703650) | 1 |
|
Immediately | $ 98.55 | |||
| 5 | 12200034 | Knob, Switch (Replaces: Y703661) | 1 |
|
$ 95.17 | ||||
| 6 | 703271 | Switch, Selector | 1 |
|
- | ||||
| 7 | 12200031 | Knob, Selector-lower (Replaces: Y703501) | 1 |
|
$ 60.55 | ||||
| 8 | 703145 | Thermostat | 1 |
|
- | ||||
| 9 | WPY703499 | Knob, Thermostat (Replaces: Y703499) | 1 |
|
$ 43.52 | ||||
| 10 | 71002058 | Screw (Replaces: Y702124) | 1 |
|
$ 5.82 | ||||
| 11 | Y702614 | Light, Surface Indicator 120v | 1 |
|
- | ||||
| 12 | Y702393 | Light, Indicator-120v | 1 |
|
- | ||||
| 13 | Y702351 | Lens, Pilot Light | 1 |
|
- | ||||
| 14 | 712024 | Clock & Lens Assy. | 1 |
|
- | ||||
| 15 | Y702547 | Knob, Clock | 1 |
|
- | ||||
| 15 | WPW10339879 | Tie, Cable (Replaces: 701678) | 1 |
|
$ 7.11 | ||||
| 16 | Y702976 | Screw, Hex | 1 |
|
- | ||||
| 17 | 702616 | Bracket, Retaining | 1 |
|
- | ||||
| 18 | 712258 | Bezel | 1 |
|
- | ||||
| 18 | 702771 | Lens, Clock | 1 |
|
- | ||||
| 19 | 702878 | Harness, Wire | 1 |
|
- | ||||
| 19 | Y702394 | Light, Indicator 240v | 1 |
|
- | ||||
| 20 | Y701891 | Wire, Black | 1 |
|
- | ||||
| 20 | 702617 | Bracket, Clock | 1 |
|
$ 300.05 | ||||
| 21 | Y702615 | Lens, Pilot Light | 1 |
|
- |
