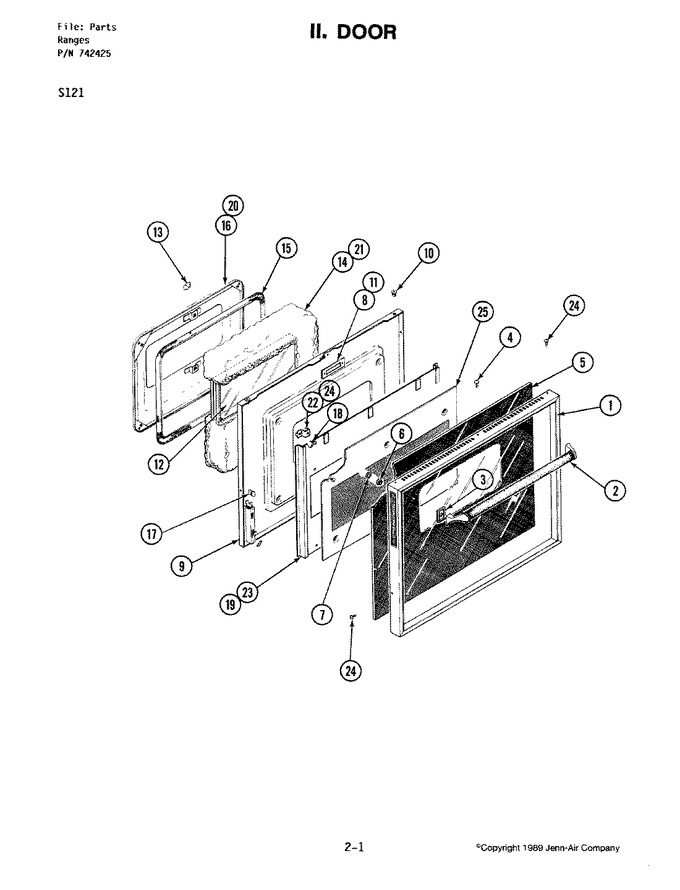

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	703780		Frame, Oven Door	1	Appelez-nous	-
2	Y703429		Handle, Door	1	Appelez-nous	-
3	Y703430		Pad, Mounting	1	Appelez-nous	-
4	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
5	Y703774		Glass, Screened (blk)	1	Appelez-nous	-
6	Y703433		Bushing	1	Appelez-nous	-
7	Y703431		Palnut	1	Appelez-nous	-
8	Y712010		Plate, Latch (upper)	1	Appelez-nous	-
9	712189		Liner, Oven Door Weld	1	Appelez-nous	-
10	701643		Nut, Push In	1	Appelez-nous	-
11	WP210720		Rivet   (Replaces: 701662)	1			$ 12.14
12	701648		Window Pack	1	Appelez-nous	-
13	Y700503		Clip, Retainer	1	Appelez-nous	-
14	702293		Insulation	1	Appelez-nous	-
15	WPY702338		Seal, Oven Door   (Replaces: Y702338)	1		Immediately	$ 172.53
16	712011		Plug, Oven Door Weld	1	Appelez-nous	-
17	Y700834		Clip	1	Appelez-nous	-
18	WPY706189		Screw   (Replaces: 700906)	1		Immediately	$ 6.47
19	Y704223		Bumper, Button	1	Appelez-nous	-
20	701660		Insulation, Top	1	Appelez-nous	-
21	702292		Insulation, Bottom	1	Appelez-nous	-
22	701652		Bracket, Stand-off	1	Appelez-nous	-
23	703782		Baffle	1	Appelez-nous	-
24	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
25	DE81-09358A		Panel, Perforated (upr)   (Replaces: 703784)	1			$ 54.82

    View Diagram in Separate Window       Print Part List
