SELECT A DIAGRAM

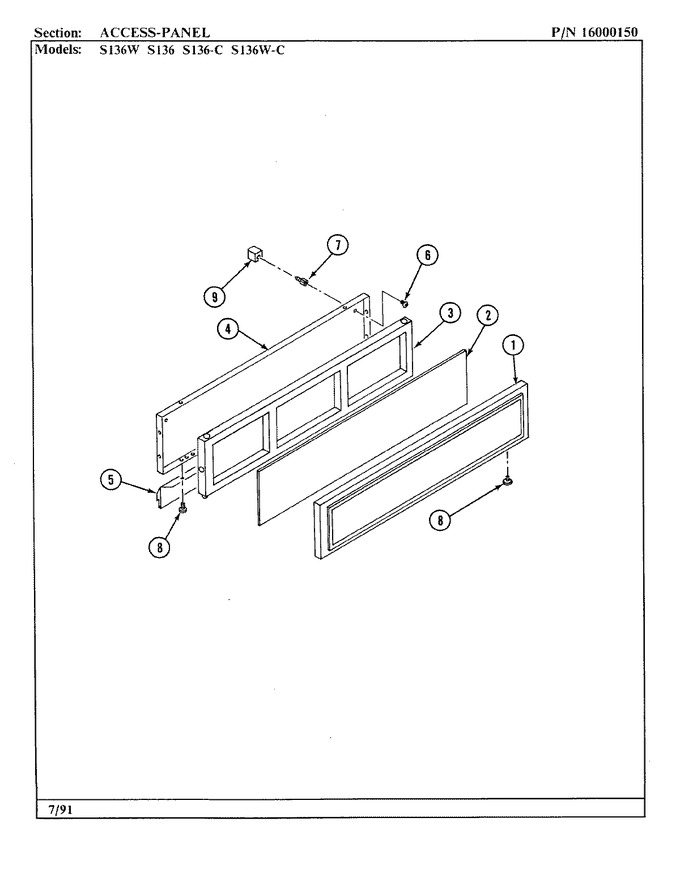

01 - Access Panel
02 - Blower Motor
03 - Blower Motor (cooling)
04 - Body
05 - Control Panel
06 - Door
07 - Internal Controls
08 - Liner
09 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704248 | Frame (blk) | 1 |
|
- | ||||
| 2 | 703435 | Panel, Base | 1 |
|
- | ||||
| 3 | Y702896 | Spacer, Base Door | 1 |
|
- | ||||
| 4 | Y703965 | Liner, Door | 1 |
|
- | ||||
| 5 | Y702744 | Panel, Kick | 1 |
|
- | ||||
| 6 | 71002058 | Screw (Replaces: Y702124) | 1 |
|
$ 5.82 | ||||
| 7 | Y702633 | Stud, Ball | 1 |
|
- | ||||
| 8 | W11233072 | Screw (blk) (Replaces: Y704237) | 1 |
|
Immediately | $ 12.62 | |||
| 9 | 708763 | Clip----s | 1 |
|
- |
