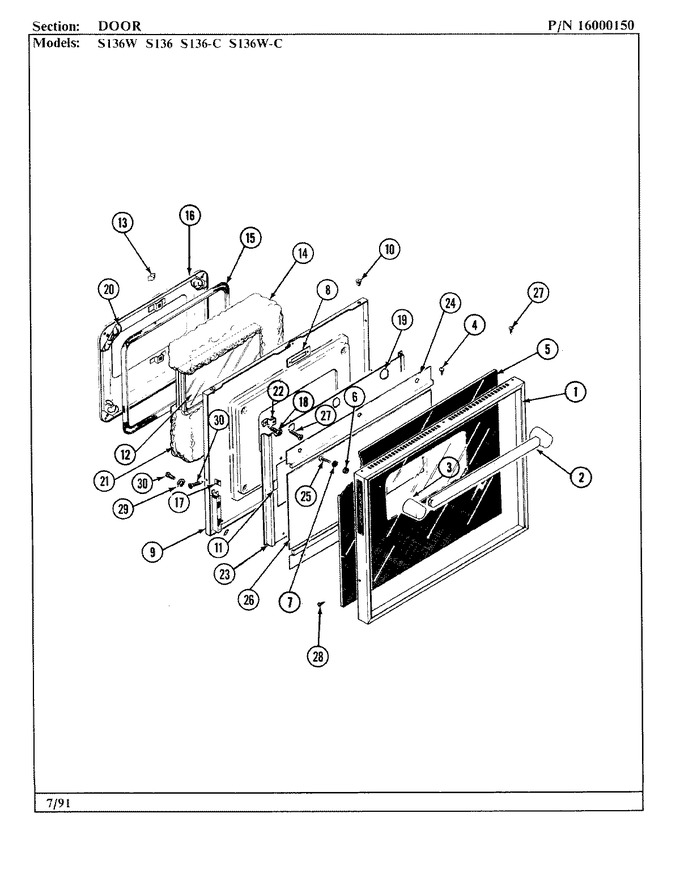

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y705172		Frame (blk)	1	Appelez-nous	-
2	704226		Handle (blk)	1	Appelez-nous	-
3	Y704224		End Cap (blk)	1	Appelez-nous	-
4	WPY706189		Screw (blk)   (Replaces: Y704238)	1		Immediately	$ 6.47
5	Y705292		Glass, Screened	1	Appelez-nous	-
6	Y704230		Washer	1	Appelez-nous	-
7	Y700446		Washer	1			$ 5.27
8	Y712010		Plate, Latch (upper)	1	Appelez-nous	-
9	712567		Liner	1	Appelez-nous	-
10	WP210720		Rivet   (Replaces: 701662)	1			$ 12.14
10	701643		Nut, Push In	1	Appelez-nous	-
11	715938		Pad, Spacer	1	Appelez-nous	-
12	701648		Window Pack	1	Appelez-nous	-
13	Y700503		Clip, Retainer	1	Appelez-nous	-
14	702293		Insulation	1	Appelez-nous	-
15	WPY702338		Seal, Oven Door   (Replaces: Y702338)	1		Immediately	$ 172.53
16	712011		Plug, Oven Door Weld	1	Appelez-nous	-
17	704487		Clip	1	Appelez-nous	-
17	Y700834		Clip	1	Appelez-nous	-
18	WPY706189		Screw   (Replaces: 700906)	1		Immediately	$ 6.47
19	Y704223		Bumper, Button	1	Appelez-nous	-
20	701660		Insulation, Top	1	Appelez-nous	-
21	702292		Insulation, Bottom	1	Appelez-nous	-
22	701652		Bracket, Stand-off	1	Appelez-nous	-
23	703782		Baffle	1	Appelez-nous	-
24	Y704819		Retainer, Glass	1	Appelez-nous	-
25	Y704231		Screw	1	Appelez-nous	-
26	Y704820		Glass, Baffle	1	Appelez-nous	-
27	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
28	Y704488		Screw (black)	1	Appelez-nous	-
29	Y703449		Washer	1	Appelez-nous	-
30	715870		Screw	1	Appelez-nous	-
