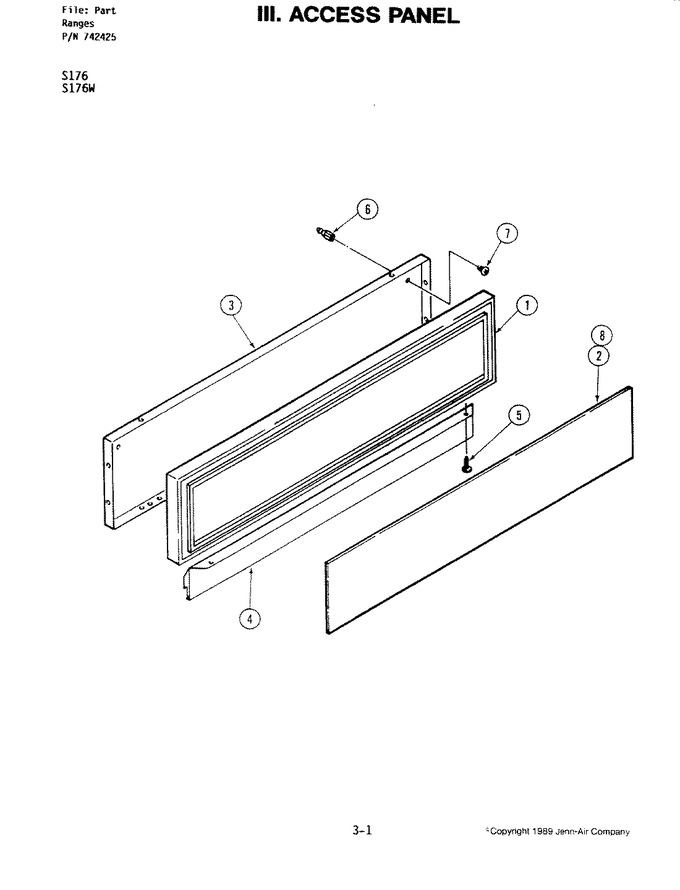

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y704746 | Frame, Base Door (chrm) | 1 |
|
- | ||||
| 2 | Y704747 | Panel, Base (wht) | 1 |
|
- | ||||
| 3 | Y702341 | Liner, Door | 1 |
|
- | ||||
| 4 | Y702744 | Panel, Kick | 1 |
|
- | ||||
| 5 | 71002058 | Screw (Replaces: Y702124) | 1 |
|
$ 5.82 | ||||
| 6 | 708763 | Clip----s | 1 |
|
- | ||||
| 6 | Y702633 | Stud, Ball | 1 |
|
- | ||||
| 7 | W11233072 | Screw (blk) (Replaces: Y704237) | 1 |
|
Immediately | $ 12.62 | |||
| 8 | Y704970 | Tape, Double Stick (wht) | 1 |
|
- |
