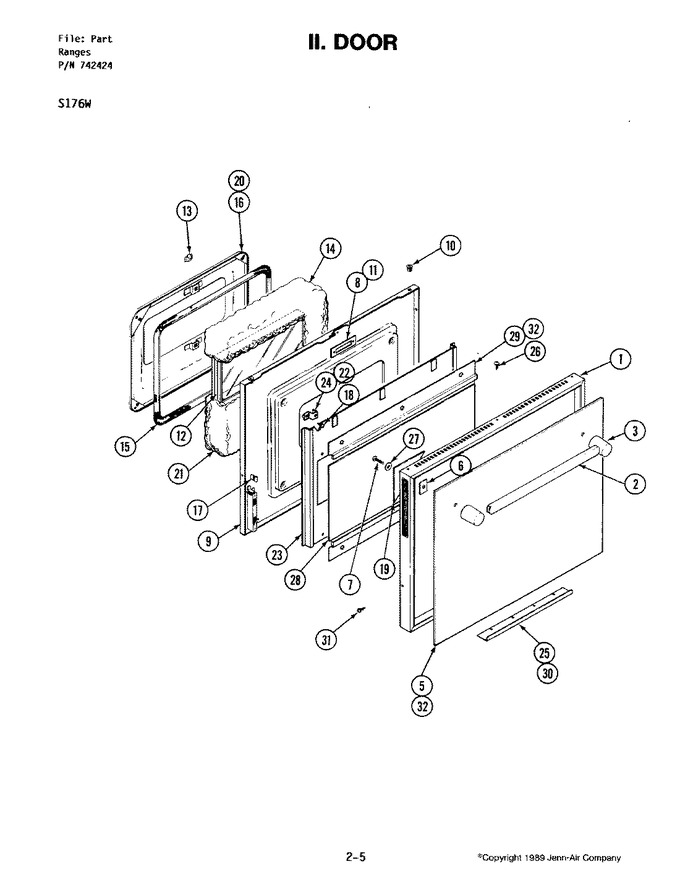

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	705134		Frame	1	Appelez-nous	-
2	704475		Handle (wht)	1	Appelez-nous	-
3	Y704454		End Cap (wht)	1	Appelez-nous	-
4	W11233072		Screw (blk)   (Replaces: Y704237)	1		Immediately	$ 12.62
5	704742		Glass	1	Appelez-nous	-
6	Y704489		Bushing	1	Appelez-nous	-
7	704963		Screw	1	Appelez-nous	-
8	Y712010		Plate, Latch (upper)	1	Appelez-nous	-
9	712567		Liner	1	Appelez-nous	-
10	701643		Nut, Push In	1	Appelez-nous	-
11	WP210720		Rivet   (Replaces: 701662)	1			$ 12.14
12	701648		Window Pack	1	Appelez-nous	-
13	Y700503		Clip, Retainer	1	Appelez-nous	-
14	702293		Insulation	1	Appelez-nous	-
15	WPY702338		Seal, Oven Door   (Replaces: Y702338)	1		Immediately	$ 172.53
16	712494		Plug	1	Appelez-nous	-
17	704487		Clip	1	Appelez-nous	-
18	WPY706189		Screw   (Replaces: 700906)	1		Immediately	$ 6.47
19	704805		Gusset----na	1	Appelez-nous	-
20	701660		Insulation, Top	1	Appelez-nous	-
21	702292		Insulation, Bottom	1	Appelez-nous	-
22	701652		Bracket, Stand-off	1	Appelez-nous	-
23	703782		Baffle	1	Appelez-nous	-
24	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
25	704744		Rail, Glass	1	Appelez-nous	-
26	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
27	701736		Washer	1	Appelez-nous	-
28	Y704820		Glass, Baffle	1	Appelez-nous	-
29	Y704819		Retainer, Glass	1	Appelez-nous	-
30	Y700584		Screw	1	Appelez-nous	-
31	Y704488		Screw (black)	1	Appelez-nous	-
32	704491		Tape, Foam	1	Appelez-nous	-
