SELECT A DIAGRAM

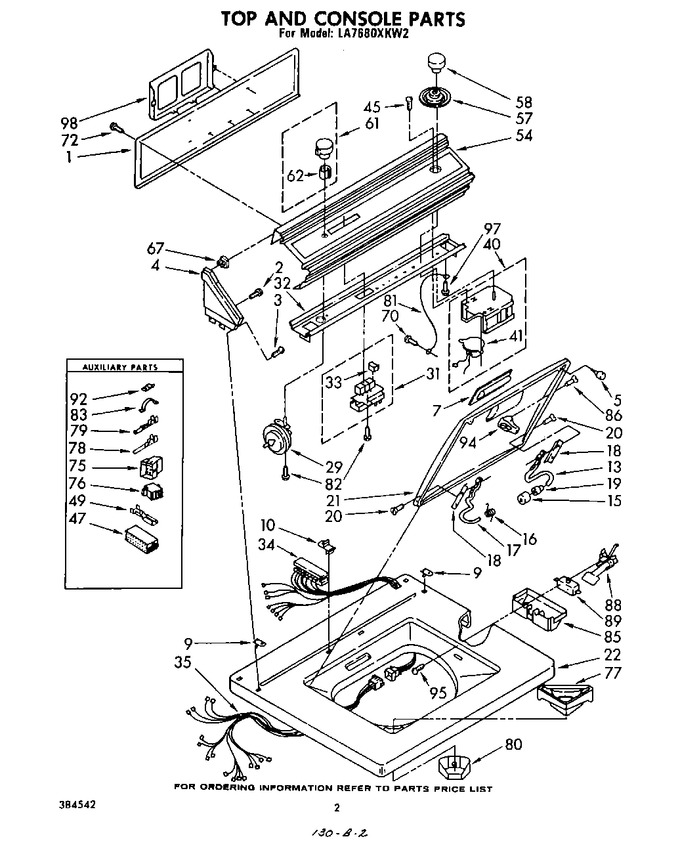

02 - Top And Console


03 - Drive


04 - Water Pump


05 - Cabinet


06 - Tub And Basket


07 - Gearcase


08 - Basket Drive And Brake


09 - Miscellaneous, Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	359372		Panel, Rear		Appelez-nous	-
2	355326		Screw, 13-16 X 5/8		Appelez-nous	-
3	358225		Screw		Appelez-nous	-
4	375305		Cap, End (l.h.) (white)		Appelez-nous	-
4	377283		Cap, End L.h. (golden Harvest)		Appelez-nous	-
4	375315		Cap, End (l.h.) (almond)		Appelez-nous	-
4	375309		Cap, End L.h. (white)		Appelez-nous	-
4	375318		Cap, End (l.h.) (golden Harvest Cap, End (r.h.))		Appelez-nous	-
4	375313		Cap, End (l.h.) (almond)		Appelez-nous	-
5	WP9724509		Bumper, Rubber   (Replaces: 93770)			Immediately	$ 7.14
7	379884		Handle, Lid (white)		Appelez-nous	-
7	379885		Handle, Lid (almond)		Appelez-nous	-
7	379888		Handle, Lid (golden Harvest)		Appelez-nous	-
9	358473		Nut, Push-in (2)				$ 5.84
10	358472		Stop, Push-in Top (1)		Appelez-nous	-
13	WP91770		Hinge, R.h.   (Replaces: 91770)				$ 24.71
15	91605		Bumper		Appelez-nous	-
16	DE81-05611A		Spring, Hinge (l.h.)   (Replaces: 92398)				$ 150.30
17	91099		Hinge, L.h.		Appelez-nous	-
18	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.02
19	WP21258		Bearing, Hinge   (Replaces: 21258)			Immediately	$ 6.87
20	WPW10119828		Screw   (Replaces: 18724)			Immediately	$ 6.47
21	379965		Lid (almond)		Appelez-nous	-
21	379964		Lid (white)		Appelez-nous	-
21	379968		Lid (golden Harvest)		Appelez-nous	-
22	380287		Top (golden Harvest)		Appelez-nous	-
22	380283		Top (white)		Appelez-nous	-
22	380284		Top (almond)		Appelez-nous	-
29	359711		Switch, Water Level		Appelez-nous	-
31	358553		Switch, Water Temperature		Appelez-nous	-
32	359707		Bracket, Control		Appelez-nous	-
33	301008		Push Button (4)		Appelez-nous	-
34	359325		Harness, Console		Appelez-nous	-
35	358116		Harness, Base		Appelez-nous	-
40	380126		Timer Assembly (60 Hz) (mallory) (alternate)		Appelez-nous	-
40	380245		Timer Assembly (60 Hz) (c.c.a.) (alternate)		Appelez-nous	-
41	365941		Motor, Timer (60 Hz.) (use W/mallory Timer)		Appelez-nous	-
41	362681		Motor, Timer (60 Hz.) (use W/c.c.a. Timer)		Appelez-nous	-
45	WP356418		Screw, 10-32 X .31   (Replaces: 96435)				$ 7.13
47	W10876590		Block, Disconnect (black)   (Replaces: 352089)				$ 11.48
47	352090		Block, Disconnect (white)		Appelez-nous	-
49	352088		Terminal, Female				$ 5.83
54	383392		Panel, Control		Appelez-nous	-
57	359254		Dial, Timer		Appelez-nous	-
58	359773		Knob, Timer		Appelez-nous	-
61	690308		Knob Assembly (water Level)		Appelez-nous	-
62	WP688805		Clip, Control Knob   (Replaces: 688805)			Immediately	$ 7.03
67	689559		Nut, Push-in		Appelez-nous	-
70	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
72	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 12.65
75	94612		Cap, Terminal (console Harness)		Appelez-nous	-
76	94611		Plug, Terminal (cabinet Harness)		Appelez-nous	-
77	352821		Bezel, Dispenser		Appelez-nous	-
78	94613		Terminal, (male)		Appelez-nous	-
79	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
80	352827		Tray, Dispenser		Appelez-nous	-
81	3184020		Wire, Ground   (Replaces: 54570)				$ 74.50
82	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.04
83	WP98997		Clip, Harness   (Replaces: 98997)				$ 9.98
85	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
86	354975		Screw & Washer		Appelez-nous	-
88	370959		Switch Actuator Assembly				$ 33.01
89	W10820036		Switch, Lid (alternate)   (Replaces: 367034)			Immediately	$ 27.45
89	00-6163		Switch, Lid (alternate)   (Replaces: 364090)				$ 22.92
89	W10820036		Switch, Lid (alternate)   (Replaces: 364091)			Immediately	$ 27.45
92	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
94	357633		Strike, Lid Switch		Appelez-nous	-
95	354764		Screw & Washer		Appelez-nous	-
97	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
98	357645		Rack, Literature		Appelez-nous	-
	299885		Wire, Splicing 240 Volt		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
