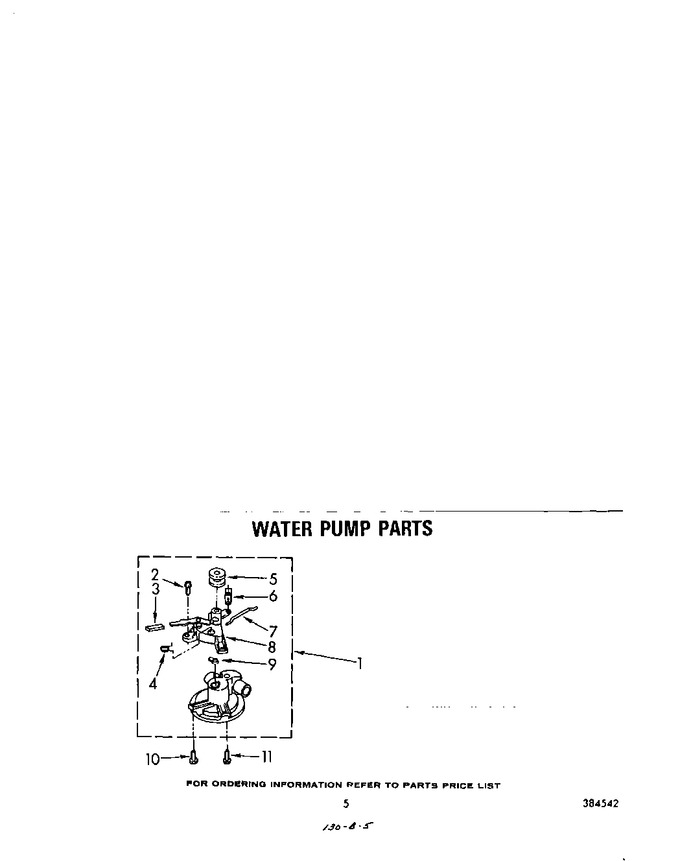

04 - Water Pump
05 - Cabinet
06 - Tub And Basket
07 - Gearcase
08 - Basket Drive And Brake
09 - Miscellaneous, Literature And Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 383957 | Pump Assembly |
|
- | |||||
| 2 | WP273556 | Screw, 10-12 X 5/8 (Replaces: 273556) |
|
Immediately | $ 7.04 | ||||
| 3 | 96175 | Sleeve |
|
- | |||||
| 4 | 96266 | Spring, Toggle |
|
- | |||||
| 5 | 359630 | Pulley |
|
- | |||||
| 6 | 355538 | Lever, Valve |
|
- | |||||
| 7 | 96264 | Rod, Connecting |
|
- | |||||
| 8 | 383750 | Bearing Block Assembly |
|
- | |||||
| 9 | 96265 | Wick, Oil |
|
- | |||||
| 10 | 386011 | Screw, Pump To Gearcase (Replaces: 96867) |
|
- | |||||
| 11 | 355612 | Screw, 5/16-18 X 1-3/8 |
|
- |
