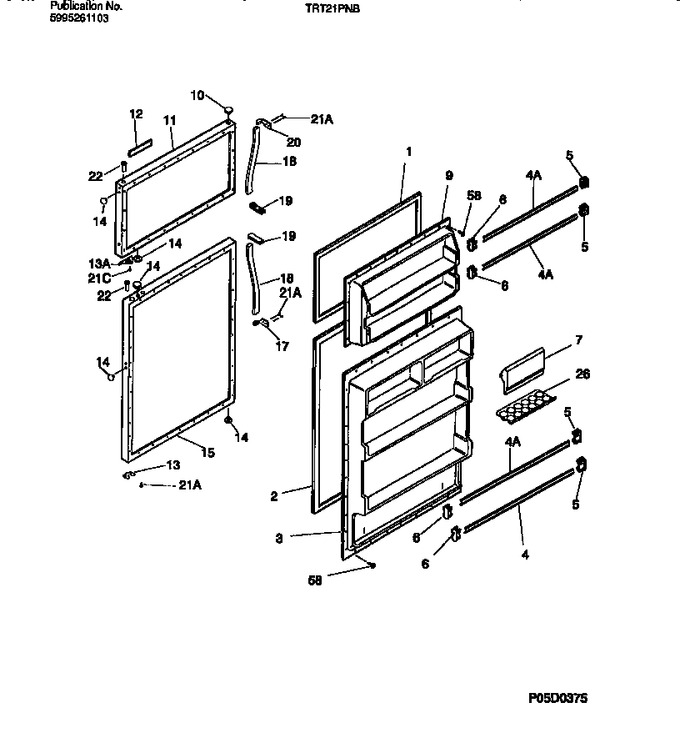

01 - Top Mount Refrigerator


02 - Door


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608903		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	215732403		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	5303212842		Panel-inner Door, Refr		Appelez-nous	-
4	5303281387		Rack-ddor, 25.25`` X 1.58``		Appelez-nous	-
5	5303007295		Support-ddor Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
7	5303303599		Door Dairy		Appelez-nous	-
9	5318540802		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303916888		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	215366311		Frame - Nameplate, Almond		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5318964411		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
17	215364800		Handle End				$ 73.92
18	5303015111		Handle-door		Appelez-nous	-
19	215365000		Handle End, (2)		Appelez-nous	-
20	215364900		Handle End				$ 108.52
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*81480	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	215220318		Label-nameplate, Almond (non-illustrated)		Appelez-nous	-
12B	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated)		Appelez-nous	-
13A	218249002		Door Stop, Almond, Frzr				$ 47.88
18A	5303211209		Insert-handle Grip, Almond, (non-illustrated)		Appelez-nous	-
18A	5303301465		Insert-handle Grip, White, (non-illustrated)		Appelez-nous	-
18B	5303301466		Insert-handle Grip, Black, (non-illustrated)		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
4A	5303281388		Rack-door, 25.56`` X 1.58``		Appelez-nous	-
