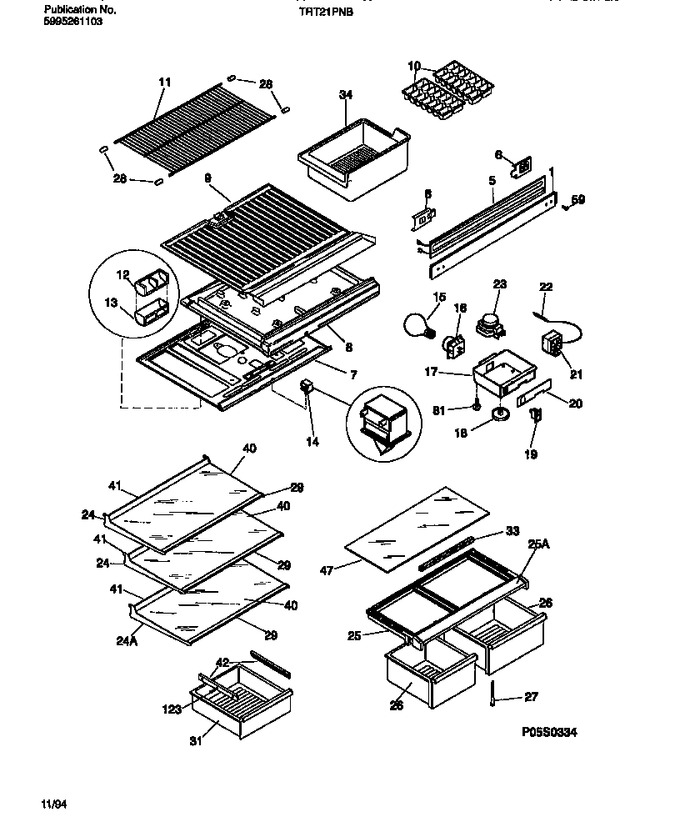

SELECT A DIAGRAM

01 - Top Mount Refrigerator


02 - Door


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218252504		Mullion, Almond		Appelez-nous	-
5	218271402		Heater-mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
8	5308013674		Divider-styrofoam		Appelez-nous	-
9	5303210641		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	530328243		Shelf-freezer, Fixedflat, Full Width, Wire		Appelez-nous	-
12	5308000071		Deflector-air		Appelez-nous	-
13	5303001546		Cover - Air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	5308000129		Socket-light/lamp				$ 62.16
17	5303015152		Box-control		Appelez-nous	-
18	5303300067		Knob-temp Control		Appelez-nous	-
19	5303001670		Switch-energy Saver, Slide		Appelez-nous	-
20	215611400		Label-control Box		Appelez-nous	-
21	5303200810		Control-temperture				$ 126.87
22	5303916855		Sleeve-plastic Tube				$ 60.96
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24	215919118		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5303205638		Cover-crisper Pan		Appelez-nous	-
26	215791924		Pan Cripser, 11.35`` Wide		Appelez-nous	-
27	5303205987		Support-crspr Cover, Adjustable				$ 48.41
28	3201150		Cap-protector				$ 4.57
29	215919505		Trim-shelf, 26.80``, Front		Appelez-nous	-
31	5303304512		Pan-meat		Appelez-nous	-
33	5303200329		Gasket-pan Cover, 13.25``, Rh		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
40	215723546		Glass-shelf, 26.76`` X 15.57``		Appelez-nous	-
41	215919805		Trim-shelf, 26.80``, Rear		Appelez-nous	-
42	5303209272		Hanger-pan/basket, Lh				$ 90.83
47	5303209283		Insert-pan Cover, Glass		Appelez-nous	-
59	240442708		Scrw-hinge/mullion, 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
11A	218159700		Spacer-frzr Shelf (non-illustrated)		Appelez-nous	-
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24A	215919123		Frame-meat Kpt Shlf, Cantilever		Appelez-nous	-
25A	5303280075		Trim-cripser Cover		Appelez-nous	-
26A	5303304670		Pan Crisper, 14.35`` Wide		Appelez-nous	-
42A	5303209273		Hanger-pan/basket, Rh				$ 60.06
7A	5303212518		Bushing, Snap-in, Plastic (incl. In Item 7) (non-illustrated)		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-
8A	3001475		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
