Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3001724 Refrigerator Door - Almond Appelez-nous -
2 3001312 Nameplate Assembly Appelez-nous -
3 5308012007 Hinge Bearing - Upper Appelez-nous -
4 G175666-20 Grip-handle Appelez-nous -
5 5303001014 Handle - End Top Appelez-nous -
6 5303201811 Gasket-refrigerator Appelez-nous -
7 5303007739 Insulation, Bulk Appelez-nous -
8 5303016725 Door Panel - Inner Appelez-nous -
9 3016724 Dairy Door Appelez-nous -
10 5303016720 Door Rack (4) Appelez-nous -
11 5303016721 Support Rs (4) Appelez-nous -
12 5316108004 Support Ls (4) Appelez-nous -
13 5308000790 Bumper, Light Switch Special Order $ 3.86

14 218843801 Screw   (Replaces: 5303001001) Special Order $ 14.41

15 5303001015 Handle - End Bottom Special Order $ 74.29

16 5308011745 Screw Special Order $ 10.38

1A 5315230801 Plug - Door Bottom (non-illustrated) Appelez-nous -
8A 218843801 Screw   (Replaces: 5303001001) Special Order $ 14.41


    View Diagram in Separate Window     Print Icon   Print Part List

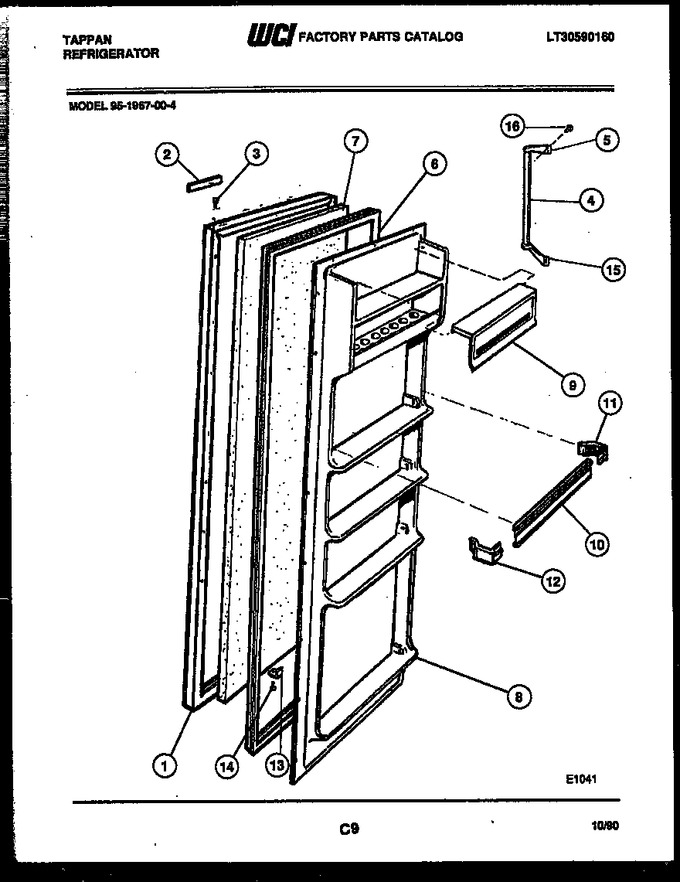

Diagram for 95-1967-23-04
