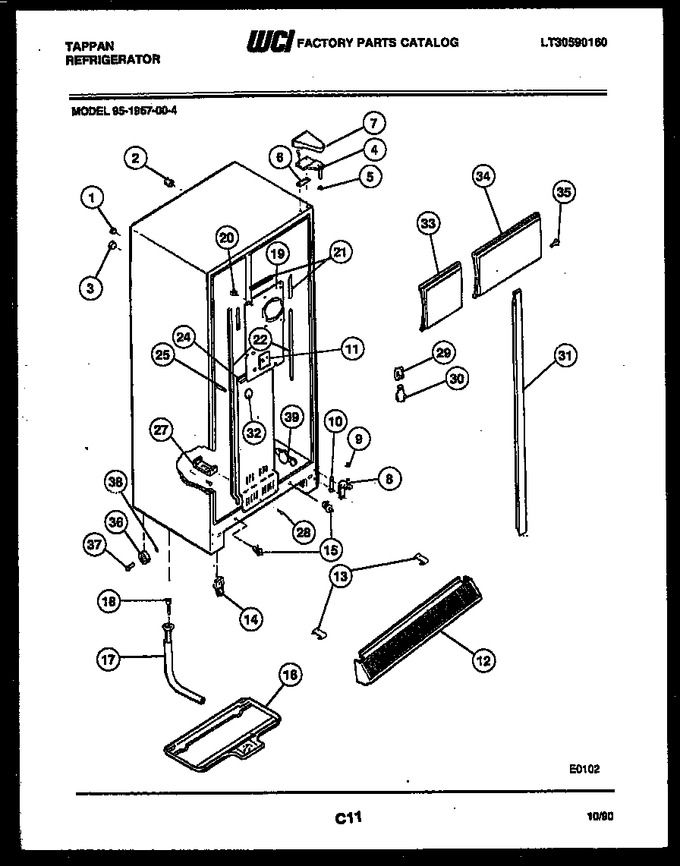

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001287		Ferrule-outer (2)		Appelez-nous	-
2	5303001198		Tube-rubber (4)		Appelez-nous	-
3	5303001286		Ferrule-inner (2)		Appelez-nous	-
4	5308012843		Hinge - Top Rh				$ 71.47
5	5308000186		Washer, Hinge Pin (2)			Immediately	$ 6.02
6	5303001037		Shim, Hinge (2)				$ 12.39
7	5308012933		Hinge Cover - Almond (2)		Appelez-nous	-
8	5303001271		Hinge, Bottom (2)				$ 102.38
9	5303001038		Washer - Hinge Pin (2)				$ 13.34
10	5303001272		Shim, Hinge (6)		Appelez-nous	-
11	3016727		Decorative Plug		Appelez-nous	-
12	5303016726		Grille/kickplate		Appelez-nous	-
13	5308000091		Clip-grille (2)				$ 14.57
14	5308000118		Roller Assembly (2)		Appelez-nous	-
15	5309918810		Light Switch (2)		Appelez-nous	-
16	5308000086		Defrost Pan		Appelez-nous	-
17	5303018640		Drain Outlet & Tube		Appelez-nous	-
18	5308000853		Heat Conductor		Appelez-nous	-
19	5303006543		Coil Cover, Upper		Appelez-nous	-
20	5308000097		Support, Cover (2)		Appelez-nous	-
21	5303001219		Gasket, Cover (2)		Appelez-nous	-
22	5303001233		Gasket-kit Cover		Appelez-nous	-
24	5308017223		Coil Cover-lower		Appelez-nous	-
25	5303001250		Support, Cover (5)		Appelez-nous	-
27	5308000738		Bracket, Cover Mounting		Appelez-nous	-
28	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
29	218906802		Light Socket, Freezer   (Replaces: 5308000815)				$ 17.72
30	5303001179		Light Bulb-freezer		Appelez-nous	-
31	5303916448		Mullion, Almond		Appelez-nous	-
32	5303208309		Plug, Short Test Hole				$ 45.50
33	3016709		Light Shield-freezer		Appelez-nous	-
34	3016710		Light Shield - Refrigerator		Appelez-nous	-
35	5303001213		Support - Refrigerator & Freezer Light Shield (6)		Appelez-nous	-
36	5303001030		Roller, Rear (2)				$ 17.80
37	5308000266		Pin, Roller (2)		Appelez-nous	-
38	5303001028		Push Nut (2)		Appelez-nous	-
39	5316491203		Damper, Meat Keeper		Appelez-nous	-
*40337	5308016571		Plug, Freezer Liner (3)				$ 4.79
*40337	3201957		Ferrule-air		Appelez-nous	-
*40337	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
10A	5308000013		Shoulder Pin (2) (non-illustrated)		Appelez-nous	-
10B	5300077210		Speed Nut (2) (non-illustrated)		Appelez-nous	-
14A	5308017044		Screw Roller Mounting (2) (non-illustrated)				$ 6.34
19A	5308000126		Nut-u Type (2) (non-illustrated)		Appelez-nous	-
27A	5308009617		Lock Washer (non-illustrated)		Appelez-nous	-
27B	5303001230		Screw - Bracket (non-illustrated)		Appelez-nous	-
28A	5303001216		Washer - Coil Cover Support (non-illustrated)		Appelez-nous	-
31A	5300169100		Clip - Mullion (3) (non-illustrated)		Appelez-nous	-
31A	5303001281		Clip-mullion (3) (non-illustrated)		Appelez-nous	-
4A	5303001062		Hinge - Top Lh (non-illustrated)				$ 117.02
4B	241710601		Screw   (Replaces: 5303001479)				$ 13.46
4C	5308012296		Tapping Plate (2) (non-illustrated)				$ 47.44
8A	5303001041		Screw - Hinge Mounting (4) (non-illustrated)		Appelez-nous	-
8B	5303001273		Twin Nut (4) (non-illustrated)		Appelez-nous	-
