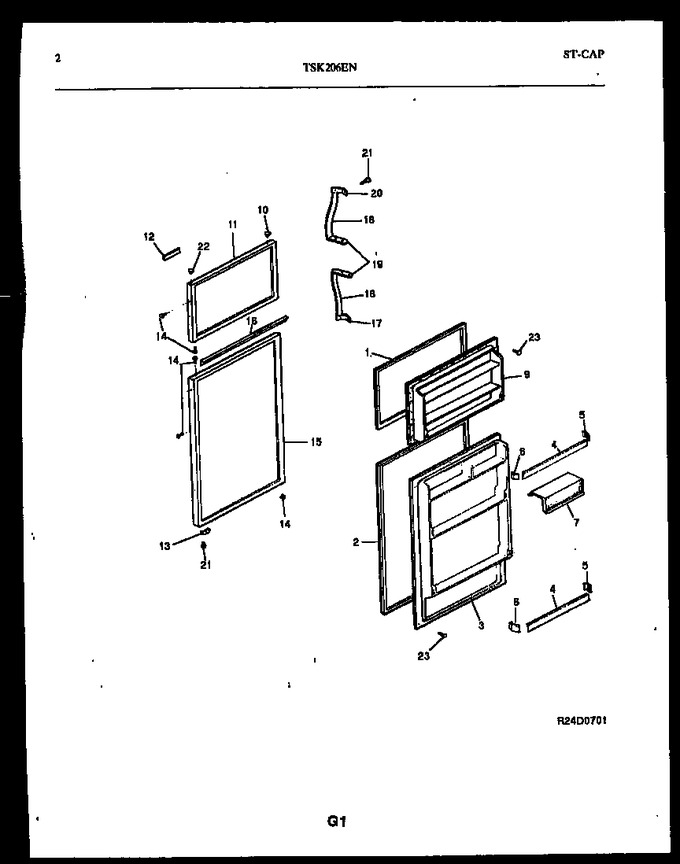

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308016617		Gasket-freezer Door, Magnetic		Appelez-nous	-
2	5308015544		Gasket-refr Door, Magnetic		Appelez-nous	-
3	3016520		Panel-inner Door, Refr		Appelez-nous	-
4	3016516		Rack-door, (4)		Appelez-nous	-
5	5317828701		Support Door Rack Rh (4)				$ 8.18
6	5317828401		Support Door Rack Lh (4)				$ 11.48
7	3015049		Door-dairy (2)		Appelez-nous	-
9	3016517		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Button Plug, Almond, Hinge Brg Hole		Appelez-nous	-
11	3916410		Panel-frzr Door, Almond		Appelez-nous	-
12	3205334		Nameplate-assy		Appelez-nous	-
13	5308000255		Door Stop, Frzr (non Illustrated)				$ 42.20
13	5303212491		Door Stop, Refr		Appelez-nous	-
14	5308000181		Button Plug, Almond, Handle/dr Stop		Appelez-nous	-
15	3916277		Panel-refr Door, Almond		Appelez-nous	-
16	3015602		Trim-door		Appelez-nous	-
17	5318945101		Handle, End-bottom		Appelez-nous	-
18	5303201377		Grip-handle (2)				$ 60.90
19	5318945301		Handle End, (2)		Appelez-nous	-
20	5318945201		Handle End-top		Appelez-nous	-
21	5308011745		Screw				$ 10.38
22	5308012007		Bearing, Hinge (8)		Appelez-nous	-
23	08002748		Screw		Appelez-nous	-
*19009	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
18A	5303200995		Insert-handle Grip, (2) (non-illustrated)		Appelez-nous	-
