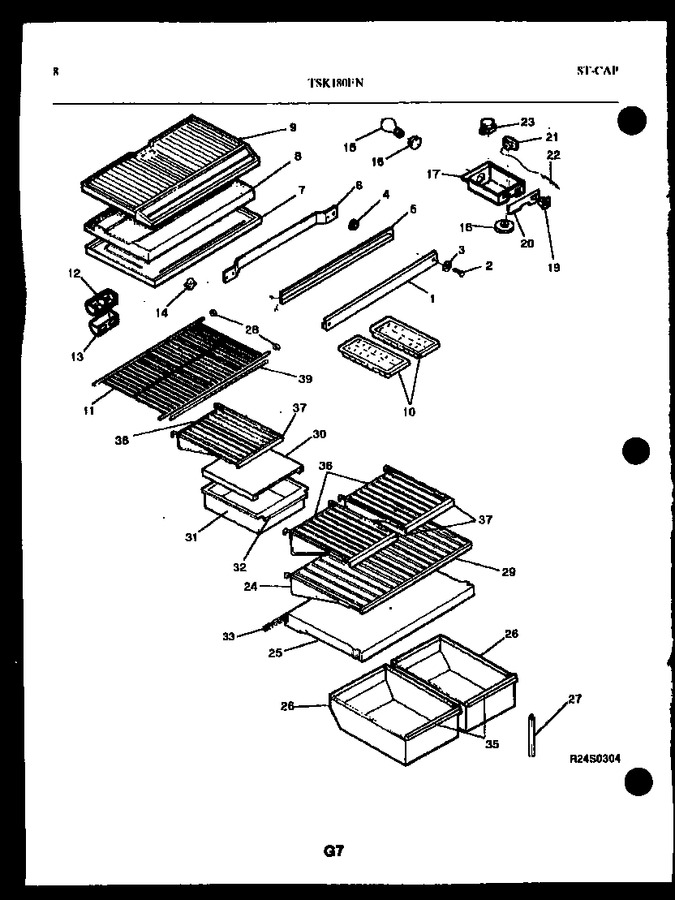

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200370 | Mullion, Almond |
|
- | |||||
| 2 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 5303200464 | Spacer, Mullion Mtg, (2) |
|
- | |||||
| 5 | 5303210351 | Heater-mullion |
|
- | |||||
| 6 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 7 | 5303016367 | Top Panel-refr, W/snap Bushing |
|
- | |||||
| 7 | 5303001380 | Screw |
|
- | |||||
| 7 | 5303212518 | Bushing, Snap-in, Plastic (non-illustrated) |
|
- | |||||
| 8 | 3001383 | Wiring Harness, Control/divider (non-illustrated) |
|
- | |||||
| 8 | 5303001504 | Divider, Styrofoam |
|
- | |||||
| 9 | 5303211427 | Bottom Panel, Freezer |
|
- | |||||
| 10 | 5315637618 | Tray-ice, Plastic |
|
- | |||||
| 11 | 5303210761 | Shelf-freezer |
|
- | |||||
| 12 | 5308000071 | Deflector-air |
|
- | |||||
| 13 | 5303001546 | Cover - Air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp |
|
- | |||||
| 16 | 5308000129 | Socket-light/lamp |
|
$ 62.16 | |||||
| 17 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 17 | 5317672203 | Box-control |
|
- | |||||
| 18 | 5308010011 | Knob-temp Control |
|
- | |||||
| 19 | 5303001670 | Switch-energy Saver |
|
- | |||||
| 20 | 5303270597 | Label-control Box |
|
- | |||||
| 21 | 5303200810 | Control-temperature |
|
$ 126.87 | |||||
| 21 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 22 | 5303916855 | Sleeve-plastic Tube |
|
$ 60.96 | |||||
| 23 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303211252 | Shelf-full, Cantilevr, Refr |
|
- | |||||
| 25 | 3015045 | Cover-crisper Pan |
|
- | |||||
| 26 | 3015046 | Pan-crisper-rh |
|
- | |||||
| 26 | 3015047 | Pan-crisper-lh |
|
- | |||||
| 27 | 5303205987 | Support-crisper Cvr, Adjustable |
|
$ 48.41 | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 29 | 5303211217 | Trim-full Shelf |
|
- | |||||
| 30 | 5308000263 | Cover-meat Pan |
|
- | |||||
| 31 | 5317762306 | Pan-meat |
|
- | |||||
| 32 | 5303270438 | Trim-meat Pan |
|
- | |||||
| 33 | 3015051 | Gasket-crisper Cover |
|
- | |||||
| 35 | 3015059 | Trim-crisper Pan (2) |
|
- | |||||
| 36 | 5303210346 | Shelf-half, Cantilevr, Refr, (3) |
|
- | |||||
| 37 | 5303211218 | Trim-half Shelf, (3) |
|
- | |||||
| 39 | 5303210762 | Trim-frzr Shelf |
|
- | |||||
| 19023 | 5300170910 | Clip-cantilevr Shlf |
|
$ 2.60 | |||||
| *19020 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 |
