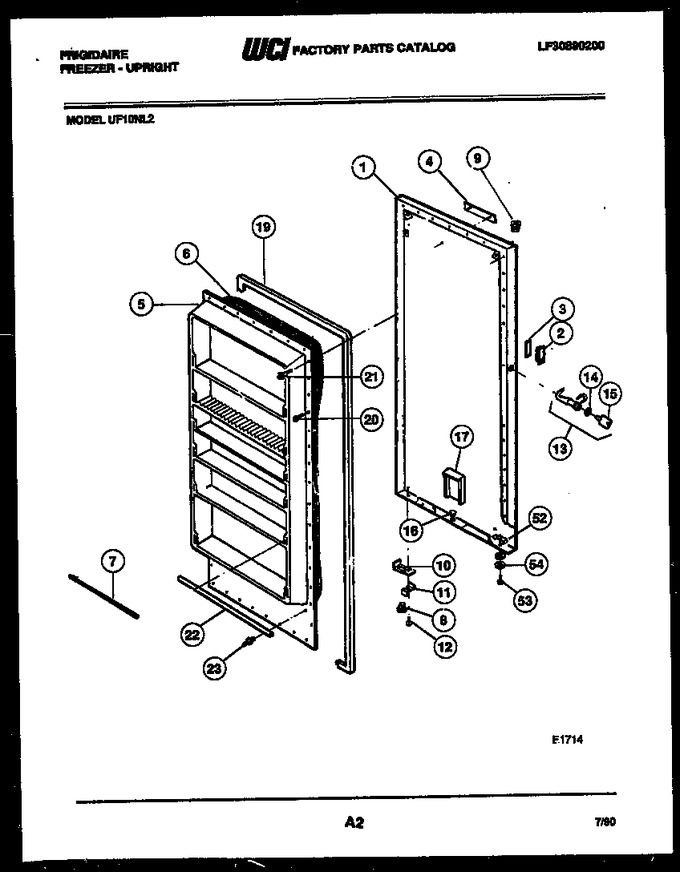

02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204256 | Panel-door (almd) |
|
- | |||||
| 2 | F112637 | Handle Recessed |
|
- | |||||
| 3 | F112639 | Gasket, Handle |
|
- | |||||
| 4 | 3204257 | Nameplate |
|
$ 21.47 | |||||
| 5 | 3204258 | Inner Panel-white |
|
- | |||||
| 6 | 06594525 | Insulation |
|
- | |||||
| 7 | F128141 | Shelf-front Wire (4) |
|
- | |||||
| 8 | 5303210403 | Bearing, Bottom |
|
- | |||||
| 9 | 5306593364 | Bearing-top |
|
- | |||||
| 10 | F91170 | Reinforcement |
|
- | |||||
| 11 | 08016354 | Stop-door |
|
$ 36.07 | |||||
| 12 | 08005520 | Screw-door Stop |
|
- | |||||
| 13 | 5300190358 | Lock-complete |
|
- | |||||
| 14 | 5300114366 | Washer-lock |
|
- | |||||
| 15 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 16 | F117926 | Valve (2) |
|
- | |||||
| 17 | F128421 | Air Duct |
|
- | |||||
| 18 | 5303007739 | Insulation, Door |
|
- | |||||
| 19 | 3206238 | Gasket-door (brown) |
|
- | |||||
| 20 | 08037935 | Screw-door Pnl (20) |
|
- | |||||
| 21 | 08009384 | Screw-panel (16) |
|
- | |||||
| 22 | F125009 | Gasket |
|
- | |||||
| 23 | F300792 | Rivet-gasket (4) |
|
- |
