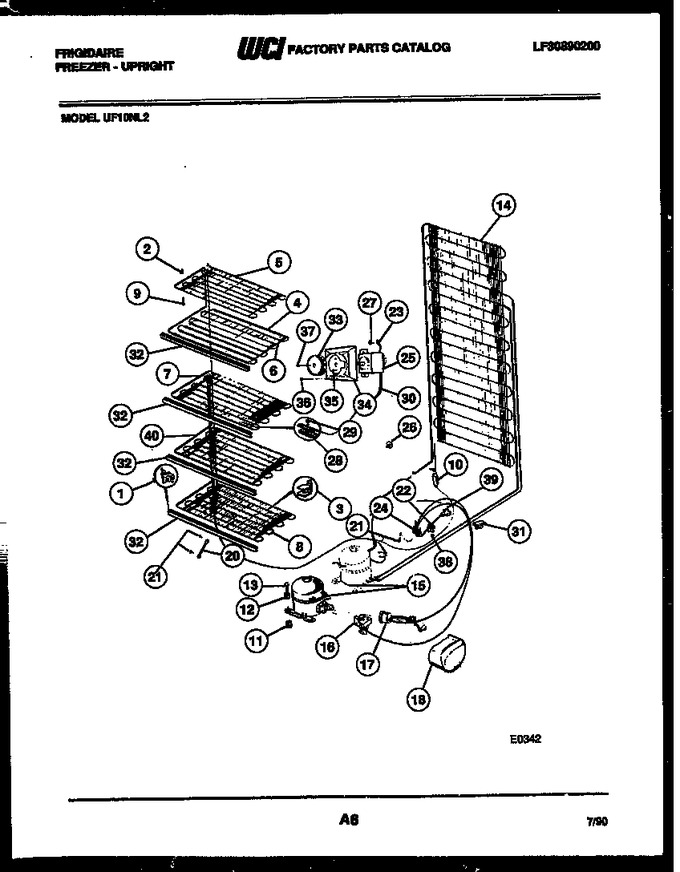

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F300590 | Support-front Lh (3) |
|
- | |||||
| 2 | F81445 | Spacer, Top Grid, Front (2) |
|
- | |||||
| 3 | F117447 | Support Rear (6) |
|
- | |||||
| 4 | 5308010744 | Heat Exchanger |
|
- | |||||
| 5 | 08010734 | Top Grid |
|
- | |||||
| 6 | 08010735 | First Shelf |
|
- | |||||
| 7 | 08010736 | Second Shelf |
|
- | |||||
| 8 | 08010737 | Bottom Shelf |
|
- | |||||
| 9 | F126260 | Screw-top Grid (3) |
|
- | |||||
| 10 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 11 | F59555 | Grommet (4) |
|
- | |||||
| 12 | F59556 | Sleeve (3) |
|
- | |||||
| 13 | F59211 | Screw (3) |
|
- | |||||
| 14 | F124042 | Condenser (not Original Equipment. Service Replacement O |
|
- | |||||
| 15 | 5303916022 | Compressor |
|
- | |||||
| 16 | 5303017753 | Relay |
|
- | |||||
| 17 | 5303206816 | Overload |
|
- | |||||
| 18 | F127561 | Cover-terminal |
|
- | |||||
| 18 | 5303006411 | Cover, Terminal |
|
- | |||||
| 20 | F95424 | Ground Wire |
|
- | |||||
| 21 | F99483 | Screw (3) |
|
- | |||||
| 22 | F116027 | Clamp-cord |
|
- | |||||
| 23 | F125347 | Ground Wire |
|
- | |||||
| 24 | F128536 | Harness-w/ Power Cord |
|
- | |||||
| 25 | 5308016351 | Cold-control |
|
$ 180.40 | |||||
| 26 | F112321 | Retainer-harness (3) |
|
- | |||||
| 27 | F99483 | Screw-ground Wire |
|
- | |||||
| 28 | F96850 | Clamp-capillary |
|
- | |||||
| 29 | F52943 | Screw-clamp |
|
- | |||||
| 30 | F129728 | Sleeve |
|
- | |||||
| 31 | F111846 | Clip (2) |
|
- | |||||
| 32 | F300389 | Front-shelf (3) |
|
- | |||||
| 33 | F127717 | Knob-control |
|
- | |||||
| 34 | F128633 | Housing-control |
|
- | |||||
| 35 | F55160 | Screw, Control To Cover (2) |
|
- | |||||
| 36 | F50149 | Screw-cover To Liner |
|
- | |||||
| 37 | F110410 | Screw Knob |
|
- | |||||
| 38 | 08037935 | Screw |
|
- | |||||
| 39 | Q000086065 | Power Cord |
|
- | |||||
| 1A | F300592 | Support-front Rh (3) |
|
- | |||||
| 2A | F56640 | Spacer-top Grid Rear (6) |
|
- |
