02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts

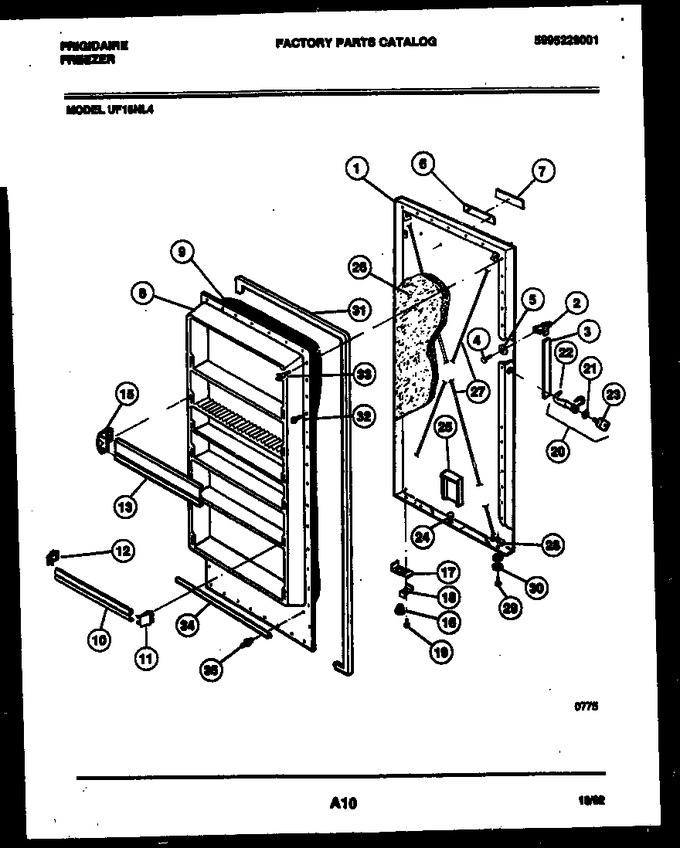

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216011403		Door Panel (almond)		Appelez-nous	-
2	5308016581		End Cap (2)				$ 18.45
3	3016894		Grip Handle		Appelez-nous	-
4	08006582		Screw Handle (2)		Appelez-nous	-
5	08016593		Washer Screw (2)		Appelez-nous	-
6	08037409		Frame		Appelez-nous	-
7	08037949		Nameplate		Appelez-nous	-
8	216012611		Panel-inner (white)		Appelez-nous	-
9	06594525		Insulation		Appelez-nous	-
10	3017749		Shelf Front Narrow (4)		Appelez-nous	-
11	5303925377		End Cap Rh Narrow (4)   (Replaces: 5308015541)			Immediately	$ 46.07
12	5303925377		End Cap Lh Narrow (4)   (Replaces: 5308015542)			Immediately	$ 46.07
13	5303209259		Shelf Front Wide		Appelez-nous	-
15	5308015540		End Cap Lh Wide		Appelez-nous	-
16	5303210403		Bearing, Bottom		Appelez-nous	-
16	5306593364		Bearing-top		Appelez-nous	-
17	5300091170		Reinforcement, Door Stop		Appelez-nous	-
18	06593882		Door Stop		Appelez-nous	-
19	08005520		Screw-door Stop		Appelez-nous	-
20	5303925107		Lock-complete		Appelez-nous	-
21	5300114366		Washer-lock		Appelez-nous	-
22	216013800		Lock Hook		Appelez-nous	-
23	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
24	5309950074		Valve, Breather				$ 12.48
25	5303212700		Air Duct Breather		Appelez-nous	-
26	5303007739		Insulation, Door		Appelez-nous	-
27	08037953		Wire Adjusting (2)		Appelez-nous	-
28	05879859		Bracket		Appelez-nous	-
29	5300057906		Screw, Bracket		Appelez-nous	-
30	09950839		Washer, Bracket		Appelez-nous	-
31	3206247		Gasket Door (brown)		Appelez-nous	-
32	216858001		Screw Door Panel (26)   (Replaces: 5303161215)			Immediately	$ 10.85
33	08009384		Screw-panel (16)		Appelez-nous	-
34	5308016355		Gasket		Appelez-nous	-
35	5303212828		Clip, Gasket (5)				$ 16.63
13A	5308015539		End Cap Rh Wide (non-illustrated)		Appelez-nous	-
