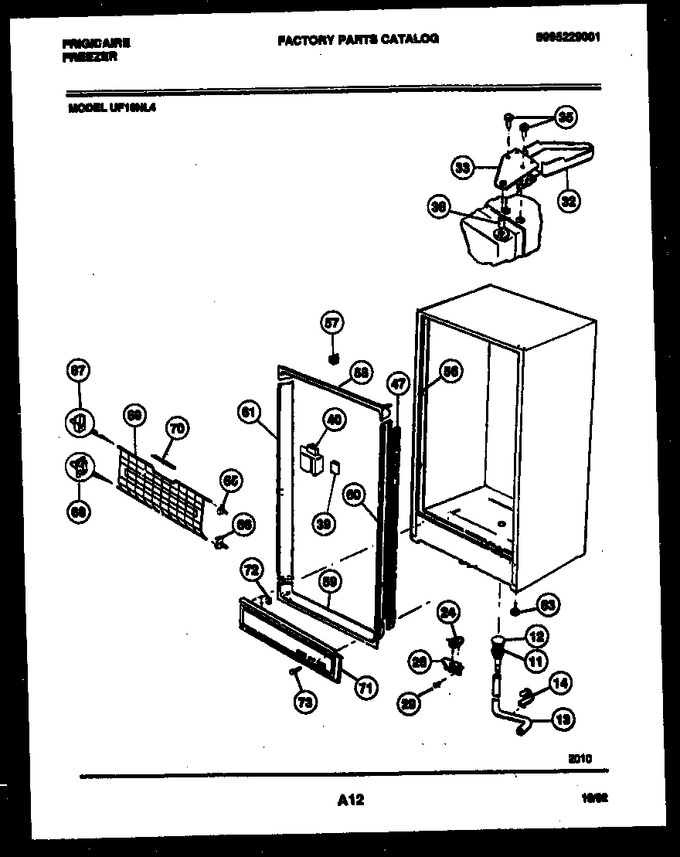

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
12	5306593887		Plug-drain		Appelez-nous	-
13	5308037944		Hose Drain		Appelez-nous	-
14	06593405		Clamp		Appelez-nous	-
24	5303210424		Ramp, Door Closer		Appelez-nous	-
26	5303210385		Hinge Bottom		Appelez-nous	-
29	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
32	5303271446		Cover-hinge (almond)		Appelez-nous	-
33	5303925086		Hinge, Top		Appelez-nous	-
35	5303212937		Screw-top Hinge		Appelez-nous	-
39	216013700		Clip Lock		Appelez-nous	-
40	216013600		Latch Catch		Appelez-nous	-
47	06594525		Insulation		Appelez-nous	-
56	06594680		Clip, Breaker		Appelez-nous	-
57	08037937		Spacer-top Breaker (2)		Appelez-nous	-
58	5308005501		Breaker Top		Appelez-nous	-
59	5308005502		Breaker Bottom		Appelez-nous	-
60	5300300738		Breaker Hinge		Appelez-nous	-
61	216014100		Breaker Lock Side		Appelez-nous	-
63	5303205540		Leveling Leg (4)		Appelez-nous	-
65	06599973		Support, Top Rh				$ 6.49
66	06599975		Support, Bottom Rh				$ 5.99
67	06599974		Support, Top Lh		Appelez-nous	-
68	06599976		Support, Bottom Lh		Appelez-nous	-
69	08005507		Drop Front		Appelez-nous	-
70	06599971		Handle Drop Front		Appelez-nous	-
71	09950591		Toe Grille		Appelez-nous	-
72	5300118003		Bumper (3)		Appelez-nous	-
73	5309950066		Pin Fastener (2)		Appelez-nous	-
