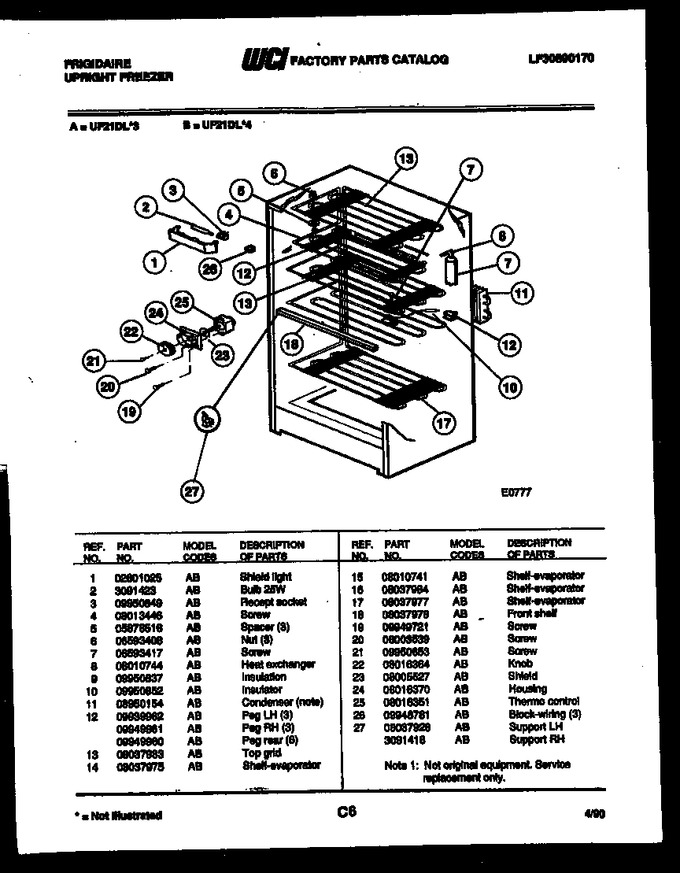

SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelf Parts


05 - System Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	02601025		Light Shield		Appelez-nous	-
2	3091423		Bulb 25w		Appelez-nous	-
3	09950849		Socket		Appelez-nous	-
4	08013446		Screw		Appelez-nous	-
5	05878516		Spacer		Appelez-nous	-
6	06593408		Nut (3)		Appelez-nous	-
7	06593417		Screw		Appelez-nous	-
8	08010744		Heat Exchanger		Appelez-nous	-
9	09950837		Insulation		Appelez-nous	-
10	09950852		Insulator		Appelez-nous	-
11	08950154		Condenser (not Original Equipment. Service Replacement		Appelez-nous	-
12	09939962		Peg Lh (3)		Appelez-nous	-
13	08037983		Top Grid		Appelez-nous	-
14	08037975		Shelf-evaporator		Appelez-nous	-
15	08010741		Shelf-evaporator		Appelez-nous	-
16	08037984		Shelf-evaporator		Appelez-nous	-
17	08037977		Shelf-evaporator		Appelez-nous	-
18	08037978		Front Shelf		Appelez-nous	-
19	09949721		Screw		Appelez-nous	-
20	08003539		Screw		Appelez-nous	-
21	09950853		Screw, Knob		Appelez-nous	-
22	08016364		Knob		Appelez-nous	-
23	08005527		Shield		Appelez-nous	-
24	08016370		Housing		Appelez-nous	-
25	08016351		Thermo Control		Appelez-nous	-
26	09948781		Block-wiring (3)		Appelez-nous	-
27	297001500		Support Lh   (Replaces: 08037928)				$ 18.08
12A	09949961		Peg Rh (3)		Appelez-nous	-
12B	09949960		Support, Rear		Appelez-nous	-
27A	297001600		Support Rh   (Replaces: 3091418)				$ 18.08
