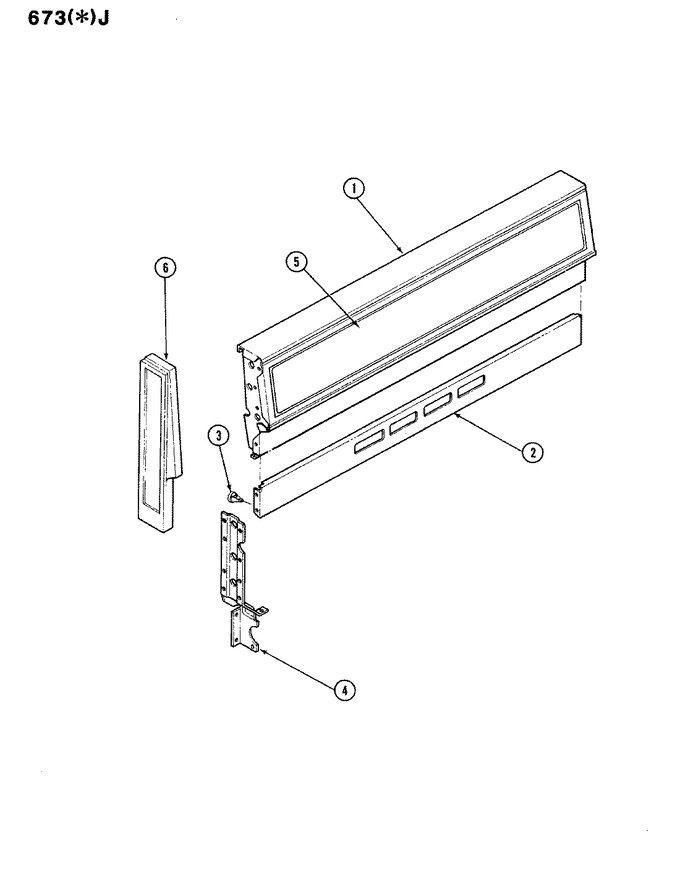

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 1 | 2601W299-84 | Panel Bkgd Alm | 1 |
|
- | ||||
| 1 | 2601W299-81 | Panel Bkgd Wht | 1 |
|
- | ||||
| 2 | 2620W018-90 | + Panel, Bkgd Lower | 1 |
|
- | ||||
| 3 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 | ||||
| 3 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 4 | 3807W010-80 | Support, Bkg Left | 1 |
|
- | ||||
| 4 | 3807F012-80 | Support | 1 |
|
- | ||||
| 5 | 7703P153-60 | Trim, Bkgd Insert | 1 |
|
- | ||||
| 6 | 7726P020-60 | End Cap, Backguard (rt-blk) | 1 |
|
- | ||||
| 6 | 7726P009-60 | End Cap, Backguard (lt-blk) | 1 |
|
- |
