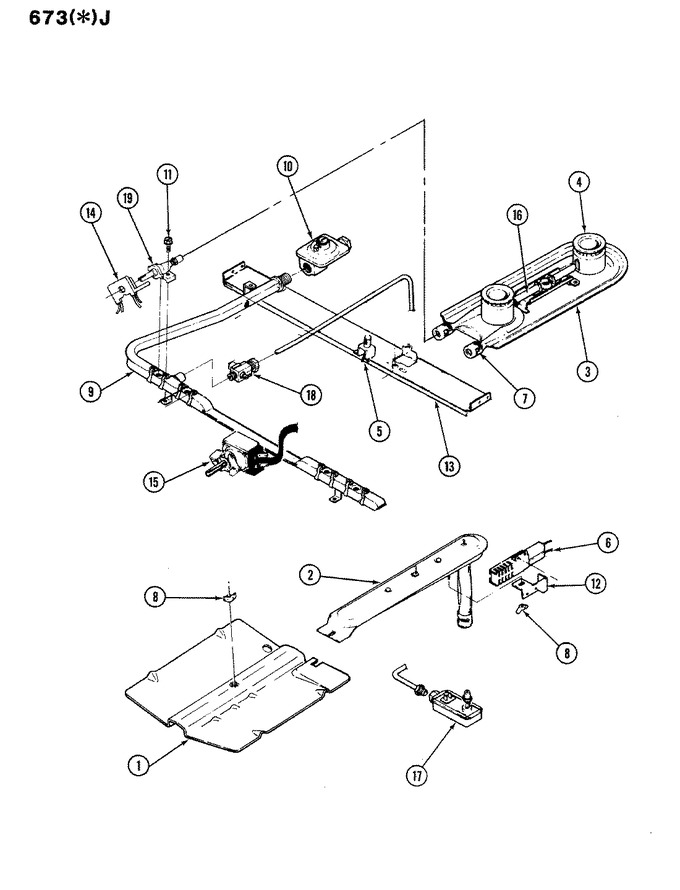

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Control System
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F181-45 | Baffle, Oven Burner | 1 |
|
- | ||||
| 1 | 3801F179-45 | Bracket, Burner Lighter | 1 |
|
- | ||||
| 2 | 7505P101-60 | Burner | 1 |
|
- | ||||
| 3 | 3412A004-23 | Uni-burner Assy | 1 |
|
- | ||||
| 4 | W10124350 | Not Required Part Or See Note | 1-2 |
|
- | ||||
| 4 | 4005F006-80 | Cover, Ignitor | 1 |
|
- | ||||
| 4 | 4005F173-51 | Cover, Valve Terminal | 1 |
|
- | ||||
| 4 | 7504P001-60 | Cap, Burner | 1 |
|
- | ||||
| 4 | 4005F304-51 | Cover, Wire | 3 |
|
- | ||||
| 4 | 4005F167-80 | Cover, Module | 1 |
|
- | ||||
| 5 | 7432P008-60 | Igniter, Top (lt) | 1 |
|
- | ||||
| 5 | 7432P015-60 | Igniter, Top Burner | 1 |
|
$ 53.77 | ||||
| 6 | 12400035 | Igniter, Bake Burner (Replaces: 7432P052-60) | 1-2 |
|
Immediately | $ 60.44 | |||
| 6 | 12400035 | Igniter Bake (Replaces: 7432P062-60) | 3 |
|
Immediately | $ 60.44 | |||
| 6 | WP7711P135-60 | Knob, Valve (Replaces: 7711P135-60) | 1 |
|
$ 25.06 | ||||
| 6 | 7711P137-60 | Knob, Thermostat | 1 |
|
- | ||||
| 7 | 7431P006-60 | Module, Spark | 1 |
|
- | ||||
| 7 | 3411F004-34 | Mixer, Air | 1 |
|
- | ||||
| 8 | 7103P030-60 | Nut, Wing | 1 |
|
$ 6.37 | ||||
| 9 | 7513P043-60 | Pipe, Manifold----na | 1 |
|
- | ||||
| 9 | W10124350 | Not Required Part Or See Note | 1-2 |
|
- | ||||
| 9 | 3830F006-45 | Raceway Wire | 1 |
|
- | ||||
| 10 | 3804F001-44 | Retainer, Burner Cap Threaded | 1 |
|
- | ||||
| 10 | 7510P002-60 | Regulator, Pressure | 1 |
|
- | ||||
| 11 | 3604F030-51 | Shield, Themostat | 1 |
|
- | ||||
| 11 | 3604F042-51 | Shield Wire | 1 |
|
- | ||||
| 11 | 7101P043-60 | Screw, Control Valve | 1 |
|
- | ||||
| 12 | 3807F120-34 | Support | 1 |
|
- | ||||
| 13 | 3807F347-51 | Support, Top Burner | 1 |
|
- | ||||
| 14 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 15 | 7515P032-60 | Thermostat | 1 |
|
- | ||||
| 16 | 7506P006-60 | Tube, Flash | 1 |
|
- | ||||
| 16 | 3414F049-44 | Tubing, 3/8`` X 54.5`` | 1 |
|
- | ||||
| 17 | 7501P133-60 | Valve | 1 |
|
$ 174.27 | ||||
| 18 | 7502P002-60 | Valve, Shut Off | 1 |
|
- | ||||
| 19 | 7502P109-60 | Valve, Top Burner | 1-17 |
|
- | ||||
| 19 | 7502P222-60 | Valve | 18-23 |
|
- | ||||
| 19 | 7502P174-60 | Valve, Top Burner | 24 |
|
- |
