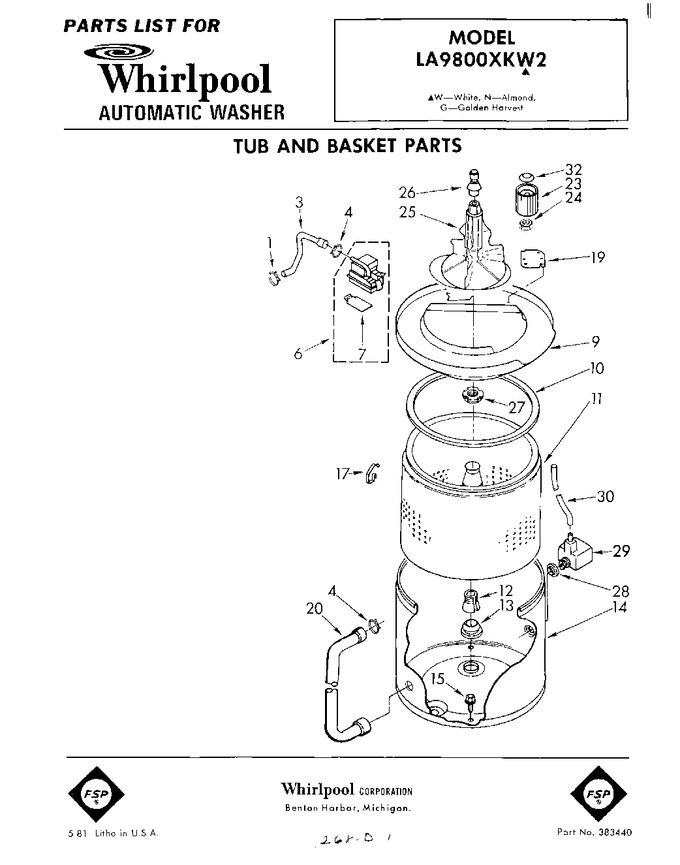

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP596669		Clamp, Hose   (Replaces: 272846)			Immediately	$ 7.56
3	356349		Hose, Water Inlet		Appelez-nous	-
4	WP596669		Clamp, Hose   (Replaces: 272847)			Immediately	$ 7.56
6	366072		Inlet, Water		Appelez-nous	-
7	355584		Flapper		Appelez-nous	-
9	381971		Ring, Tub (includes Illus. 19)		Appelez-nous	-
10	359757		Seal, Tub Ring		Appelez-nous	-
11	359704		Basket		Appelez-nous	-
12	WP389140		Block, Drive   (Replaces: 357782)			Immediately	$ 24.74
13	W10814296		Gasket, Centerpost   (Replaces: 96690)			Immediately	$ 8.26
14	359668		Tub		Appelez-nous	-
15	WP358237		Screw, Tub   (Replaces: 356973)			Immediately	$ 7.97
17	359763		Clip, Tub Ring (4)		Appelez-nous	-
19	355852		Plate, Snubber		Appelez-nous	-
20	352169		Hose, Dispenser		Appelez-nous	-
23	356863		Cap, Agitator		Appelez-nous	-
24	357732		Nut, Lock		Appelez-nous	-
25	358370		Agitator		Appelez-nous	-
26	369516		Stud & Washer		Appelez-nous	-
27	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 8.00
28	351830		Seal, Air Dome				$ 5.84
29	360804		Air Dome		Appelez-nous	-
30	WP353244		Hose, Pressure Switch   (Replaces: 353243)			Immediately	$ 53.94
32	358773		Insert, Agitator Cap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
