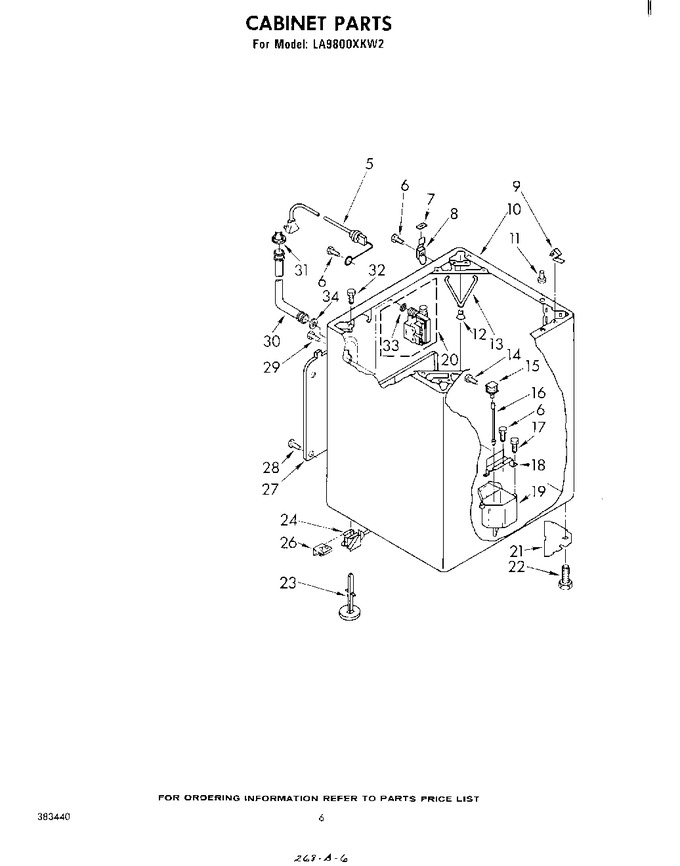

01 - Tub And Basket
02 - Top And Console
03 - Drive
04 - Cabinet
05 - Water System
06 - Gearcase
07 - Basket Drive And Brake
08 - Miscellaneous , Literature And Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 92667 | Cord, Power |
|
- | |||||
| 6 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 7 | 18849 | Pad, Hinge |
|
$ 18.13 | |||||
| 8 | 92657 | Hinge, L.h. |
|
- | |||||
| 8 | 18775 | Hinge, R.h. |
|
- | |||||
| 9 | WP18776 | Lock, Front Top (Replaces: 18776) |
|
Immediately | $ 11.41 | ||||
| 10 | 379102 | Cabinet (almond) |
|
- | |||||
| 10 | 379105 | Cabinet (golden Harvest) |
|
- | |||||
| 10 | 379101 | Cabinet (white) |
|
- | |||||
| 11 | 98669 | Locator, Top |
|
$ 12.03 | |||||
| 12 | 358336 | Snubber |
|
Immediately | $ 4.80 | ||||
| 13 | 358336 | Spring, Snubber (Replaces: 357977) |
|
Immediately | $ 4.80 | ||||
| 14 | 96141 | Screw, 10-16 X 5/16 |
|
- | |||||
| 15 | 88464 | Solenoid (alternate) |
|
- | |||||
| 15 | 87170 | Solenoid (alternate) |
|
- | |||||
| 16 | 82506 | Rod & Stopper |
|
$ 6.96 | |||||
| 17 | WP98165 | Screw, 8-18 X 5/8 (Replaces: 98165) |
|
$ 7.20 | |||||
| 18 | 93492 | Bracket, Dispenser |
|
- | |||||
| 19 | 95916 | Reservoir |
|
- | |||||
| 20 | 358277 | Valve, Mixing (alternate) |
|
Immediately | $ 78.87 | ||||
| 20 | 358971 | Valve, Mixing (alternate) (serviced Only As Complete Assemblies) |
|
- | |||||
| 21 | 356459 | Plate, Gusset (2) |
|
- | |||||
| 22 | WP367594 | Foot, Front (2) (Replaces: 367594) |
|
Immediately | $ 18.46 | ||||
| 23 | WP358594 | Foot, Rear (2) (Replaces: 358594) |
|
$ 12.24 | |||||
| 24 | 359059 | Link, Leveling |
|
- | |||||
| 26 | WP359364 | Clip, Leveling Mechanism (2) (Replaces: 359364) |
|
Immediately | $ 7.06 | ||||
| 27 | 85279 | Panel, Rear |
|
- | |||||
| 28 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.07 | ||||
| 29 | WP3351614 | Screw, 10 X 3/8 (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 30 | WP89503 | Hose, Inlet (2) (Replaces: 81339) |
|
Immediately | $ 21.68 | ||||
| 31 | 285452A | Screen, Filter (2) (Replaces: 355521) |
|
Immediately | $ 8.31 | ||||
| 32 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 359262) |
|
Immediately | $ 7.07 | ||||
| 33 | WP96160 | Screen, Filter (Replaces: 96160) |
|
$ 10.54 | |||||
| 34 | WP16123 | Washer, Rubber (4) (Replaces: 16123) |
|
$ 6.93 |
