View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Door

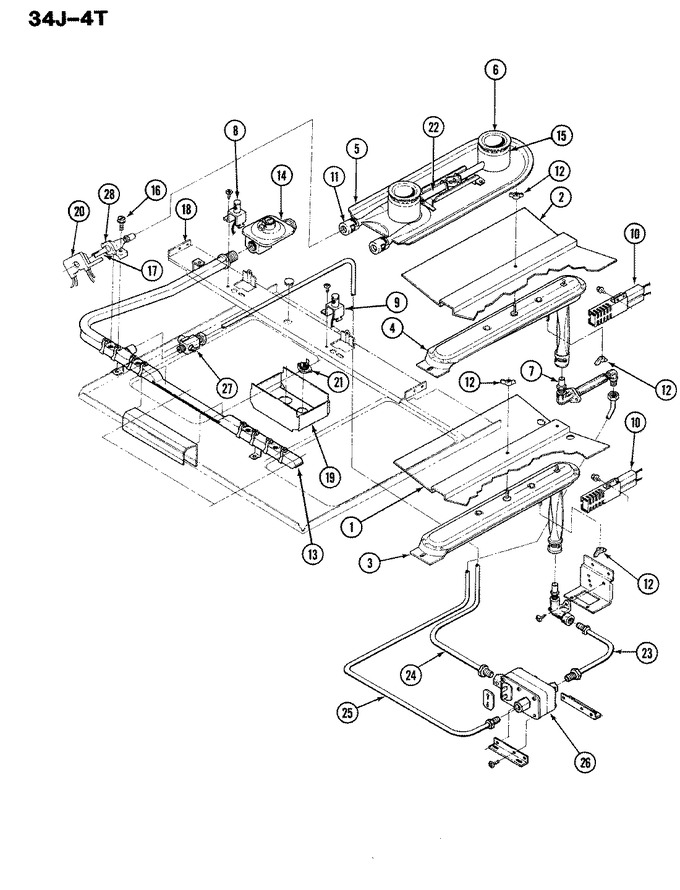

03 - Gas Controls
04 - Top Assembly/body
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W184-15 | Baffle | 01 |
|
- | ||||
| 2 | 3801F179-45 | Bracket, Burner Lighter | 01 |
|
- | ||||
| 2 | 3601F181-45 | Baffle, Oven Burner | 01 |
|
- | ||||
| 3 | 3403D027-45 | Burner, Oven | 25 |
|
- | ||||
| 3 | 7505P101-60 | Burner | 01 |
|
- | ||||
| 3 | 3403A015-45 | Burner Oven | 18 |
|
- | ||||
| 4 | 7505P100-60 | Burner, Bake & Broil | 01 |
|
- | ||||
| 4 | 3403A016-45 | Burner Assy Broil | 18 |
|
- | ||||
| 4 | 3403D028-45 | Burner, Broil | 25 |
|
- | ||||
| 5 | 3412A004-19 | Burner, Top | 25 |
|
- | ||||
| 5 | 3412A004-23 | Uni-burner Assy | 01 |
|
- | ||||
| 6 | 4005F174-80 | Cover, Module | 01 |
|
- | ||||
| 6 | 7504P001-60 | Cap, Burner | 01 |
|
- | ||||
| 7 | 7507P028-60 | Fitting, Broil Burner | 01 |
|
- | ||||
| 8 | 7432P008-60 | Igniter, Top (lt) | 01 |
|
- | ||||
| 9 | 7432P015-60 | Igniter, Top Burner | 01 |
|
$ 53.77 | ||||
| 10 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 10 |
|
Immediately | $ 60.44 | |||
| 10 | 12400035 | Igniter, Bake Burner (Replaces: 7432P052-60) | 01 |
|
Immediately | $ 60.44 | |||
| 11 | 7431P006-60 | Module, Spark | 01 |
|
- | ||||
| 11 | 3411F004-34 | Mixer, Air | 01 |
|
- | ||||
| 12 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 13 | 7513P044-60 | Pipe, Manifold | 01 |
|
- | ||||
| 13 | 3605F019-45 | Plate, Fitting | 01 |
|
- | ||||
| 13 | 7513P103-60 | Pipe Manifold | 18 |
|
- | ||||
| 14 | 7510P004-60 | Regulator, Pressure | 01 |
|
- | ||||
| 15 | 3804F001-44 | Retainer, Burner Cap Threaded | 01 |
|
- | ||||
| 16 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 16 | 7101P296-60 | Screw | 18 |
|
- | ||||
| 16 | 3411F006-35 | Mixer, Air | 18 |
|
- | ||||
| 16 | 3411F006-34 | Mixer Air Oven Burner | 01 |
|
- | ||||
| 17 | 7214P003-60 | Sleeve | 01 |
|
- | ||||
| 18 | 3807F347-51 | Support, Top Burner | 01 |
|
- | ||||
| 19 | 3807F219-51 | Support, Therm Disc | 01 |
|
- | ||||
| 20 | 7403P282-60 | Switch, Top Ignitor | 31 |
|
- | ||||
| 20 | 7403P216-60 | Switch, Top Burner | 18 |
|
- | ||||
| 20 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) | 01 |
|
$ 118.82 | ||||
| 20 | 7403P258-60 | Switch | 26 |
|
- | ||||
| 21 | 7403P187-60 | Switch, Hi Limit | 01 |
|
- | ||||
| 22 | 7506P006-60 | Tube, Flash | 01 |
|
- | ||||
| 23 | Y0936104 | 3/8 X 8 Tubing | 01 |
|
- | ||||
| 24 | Y0936103 | 3/8 X 45 Tubing | 01 |
|
- | ||||
| 25 | 3414F048-44 | Tubing, 3/8 X 51-1/2 | 01 |
|
- | ||||
| 25 | 3414F057-44 | Tubing, 3/8 X 20-3/4 | 01 |
|
- | ||||
| 25 | Y0936102 | 3/8 X 72 Tubing | 01 |
|
- | ||||
| 26 | 7501P034-60 | Valve, Broil & Bake | 01 |
|
- | ||||
| 26 | 7501P095-60 | Valve, Broil & Bake - Nat | 19 |
|
- | ||||
| 27 | 7502P002-60 | Valve, Shut Off | 01 |
|
- | ||||
| 28 | 7502P111-60 | Valve, Burner | 01 |
|
- | ||||
| 28 | 7502P224-60 | Valve | 18 |
|
- |
