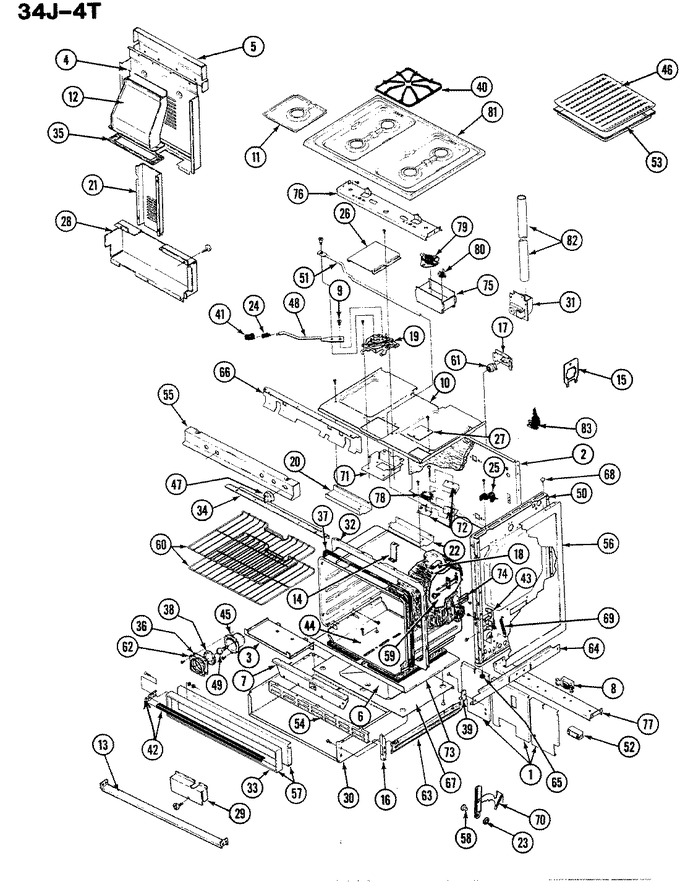

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F066-45		Back, Broiler Section	01	Appelez-nous	-
2	4002F094-80		Back, Main	01	Appelez-nous	-
2	4002F144-80		Back, Main	10	Appelez-nous	-
3	WP7101P126-60		Screw   (Replaces: 7101P273-60)	01		Immediately	$ 6.85
3	3601W130-45		Baffle, Bake & Broil	01	Appelez-nous	-
4	3601F112-51		Baffle, Flue Box	01	Appelez-nous	-
5	3601F107-51		Baffle, Flue Box Top	01	Appelez-nous	-
6	3601F116-45		Baffle	01	Appelez-nous	-
7	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	01		Immediately	$ 12.62
7	3601W125-15		Baffle, Ovn Front	01	Appelez-nous	-
7	WP7101P126-60		Screw   (Replaces: 7101P058-60)	01		Immediately	$ 6.85
7	3601W125-19		Baffle Oven Front	25	Appelez-nous	-
7	3601F106-51		Baffle, Side Panel	01	Appelez-nous	-
8	7412P005-60		Ballast	01	Appelez-nous	-
8	7401P015-60		Block, Terminal	01	Appelez-nous	-
8	7401P011-60		Block, Disconnect	01	Appelez-nous	-
9	7116P003-60		Bolt	01	Appelez-nous	-
10	4011F178-80		Bottom, Burner Box	16	Appelez-nous	-
10	2205F020-15		Bottom, Oven	22	Appelez-nous	-
10	4011F200-80		Bottom Burner Box	35	Appelez-nous	-
10	W10124403		Bottom, Oven	01	Appelez-nous	-
10	4011F157-80		Bottom, Burner Box	01	Appelez-nous	-
10	2205F020-21		Bottom, Oven	25	Appelez-nous	-
11	1430283		Bowl, Drip Tray   (Replaces: 7725P016-60)	01			$ 95.86
12	4006W026-15		Box, Flue	01	Appelez-nous	-
13	3802F076-51		Brace, Inner Side	01	Appelez-nous	-
13	3802F050-45		Brace, Inner Side	01	Appelez-nous	-
14	3801F093-45		Bracket, Burner Box	01	Appelez-nous	-
14	WP3387230		Screw, No.10 X .5 Tya   (Replaces: 7101P274-60)	01		Immediately	$ 7.69
15	3801F022-45		Bracket, Disconnect	01	Appelez-nous	-
16	3801F115-51		Bracket, Drawer	01	Appelez-nous	-
17	3801F024-51		Bracket	01	Appelez-nous	-
18	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	24		Immediately	$ 4.69
18	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
18	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)	24			$ 26.33
18	3801F198-51		Bracket, Tie-down	01	Appelez-nous	-
18	3801F049-34		Bracket,control Panel (l)	01	Appelez-nous	-
18	3801F047-34		Bracket,control Panel (r)	01	Appelez-nous	-
19	8002P021-60		Catch, Door Lock	01	Appelez-nous	-
20	3818F025-45		Channel, Air	01	Appelez-nous	-
21	3818F032-80		Channel - Air Duct	01	Appelez-nous	-
22	3818F027-45		Channel, Switch	01	Appelez-nous	-
22	3805F002-34		Clamp, Window Assy.	01	Appelez-nous	-
23	7112P019-60		Clip, Hinge Pin	01	Appelez-nous	-
24	7112P003-60		Clip, Latch Handle	01	Appelez-nous	-
25	7112P029-60		Clip	01	Appelez-nous	-
25	7112P030-60		Clip, Top Retainer	01	Appelez-nous	-
26	4005F137-80		Cover, Catch Assy.	01	Appelez-nous	-
27	4005F139-51		Cover, Switch	01	Appelez-nous	-
28	4005F174-80		Cover, Module	01	Appelez-nous	-
28	4005F396-80		Cover Module	27	Appelez-nous	-
29	4005F258-51		Cover, Oven Valve	01	Appelez-nous	-
30	3405F008-80		Drawer, Service	01	Appelez-nous	-
31	7427P002-60		Fan Assembly	01	Appelez-nous	-
31	W10124350		Not Required Part Or See Note	27	Appelez-nous	-
32	W10124350		Not Required Part Or See Note Frame (not Replaceable)	01	Appelez-nous	-
33	W10124350		Not Required Part Or See Note Frame, Drawer (incl W/panel)	01	Appelez-nous	-
34	4012F013-80		Front, Burner Box	01	Appelez-nous	-
34	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	01			$ 15.94
35	7201P014-60		Gasket, Housing	01	Appelez-nous	-
35	7201P013-60		Gasket	01	Appelez-nous	-
36	7201P015-60		Gasket, Lamp Retainer	01	Appelez-nous	-
37	7201P036-60		Gasket, Oven	01			$ 118.90
37	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	01			$ 6.47
37	WP7101P126-60		Screw   (Replaces: 7101P064-60)	01		Immediately	$ 6.85
37	7103P077-60		Nut	01	Appelez-nous	-
38	7902P057-60		Glass, Lamp Guard	01	Appelez-nous	-
39	7101P013-60		Screw, Special	01	Appelez-nous	-
39	8016P005-60		Glide, Front	01	Appelez-nous	-
40	7518P008-60		Grate	01	Appelez-nous	-
40	2003W023-00		Grate (blk)	37	Appelez-nous	-
41	7701P068-60		Handle, Latch (blk)	01	Appelez-nous	-
42	7701P047-60		Handle, Door	01	Appelez-nous	-
43	WP4159193		Screw   (Replaces: 7101P112-60)	01			$ 4.29
43	3418A029-34		Hinge Assy. (lt)	01			$ 48.47
43	3418A030-34		Hinge Assy. (rt)	01	Appelez-nous	-
44	4001F060-45		Housing, Bake Burner	10	Appelez-nous	-
44	4001F036-45		Housing, Bake Burner	01	Appelez-nous	-
45	4001F020-19		Housing, Lamp	25	Appelez-nous	-
45	4001F020-23		Housing, Lamp	01	Appelez-nous	-
46	Y3413F01619		Insert, Broil Pan	40	Appelez-nous	-
46	3413F002-23		Insert, Broil Pan	01	Appelez-nous	-
47	WP7711P135-60		Knob, Valve   (Replaces: 7733P038-60)	01			$ 25.06
47	7733P059-60		Knob	29	Appelez-nous	-
47	7733P053-60		Knob, Valve	26	Appelez-nous	-
48	8009P010-60		Lever, Door Lock	01	Appelez-nous	-
48	WP4159193		Screw   (Replaces: 7101P018-60)	01			$ 4.29
48	8009P019-60		Lever, Door Lock	35	Appelez-nous	-
49	40A15		Bulb, Oven   (Replaces: 7407P026-60)	01		Immediately	$ 1.98
50	4009W038-80		Lining Assy, Inner Side	01	Appelez-nous	-
50	4009W074-80		Lining, Assy Inner Side	24	Appelez-nous	-
51	7807P012-60		Link, Door Lock	35	Appelez-nous	-
51	7807P004-60		Link, Switch	01	Appelez-nous	-
52	7431P006-60		Module, Spark	01	Appelez-nous	-
53	Y3401F02019		Pan, Broil	40	Appelez-nous	-
53	4396923		Pan, Broil   (Replaces: 3401F004-23)	01		Immediately	$ 52.04
54	2614F008-80		Panel, Lower Front	01	Appelez-nous	-
55	7712A026-60		Trim Assy, Manifold	01	Appelez-nous	-
56	2618F052-70		Panel, Side Black	01	Appelez-nous	-
56	2618F073-70		Panel, Side (black)	06	Appelez-nous	-
57	5425A021-70K		Drawer, Service	01	Appelez-nous	-
58	7113P002-60		Pin, Hinge	01			$ 9.05
59	12001655		Probe, Oven Sensor   (Replaces: 7430P004-60)	01		Immediately	$ 41.01
59	12001655		Probe, Oven Sensor   (Replaces: 7430P009-60)	39		Immediately	$ 41.01
60	7801P031-60		Rack, Oven	01	Appelez-nous	-
61	7408P002-60		Receptacle, Lamp	01	Appelez-nous	-
62	3804F010-50		Retainer	01	Appelez-nous	-
62	3804F012-45		Retainer, Lamp Guard	01	Appelez-nous	-
63	3406F026-80		Runner, Inner	09	Appelez-nous	-
63	3406F020-80		Runner, Inner	01	Appelez-nous	-
64	3406F025-51		Runner,outer	01	Appelez-nous	-
64	3406F027-51		Runner, Outer	09	Appelez-nous	-
65	Y7101P25460		Leg, Leveling	01	Appelez-nous	-
65	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
65	3604F016-51		Shield	01	Appelez-nous	-
66	3604F085-51		Shield, Manifold Cov	01	Appelez-nous	-
67	3604F083-45		Shield, Svc Drawer	01	Appelez-nous	-
68	8003P010-60		Bumper, Main Top	06	Appelez-nous	-
68	8010P048-60		Spacer, Main Top	01	Appelez-nous	-
69	WP7803P058-60		Spring, Ov Dr   (Replaces: 7803P055-60)	01			$ 16.55
70	3420A033-34		Stop, Oven Door	01	Appelez-nous	-
71	3807F408-45		Support, Catch Assy.	16	Appelez-nous	-
71	3807F195-45		Support, Catch Assy.	01	Appelez-nous	-
72	7101P031-60		Screw	01	Appelez-nous	-
72	3807F193-45		Support, Lock Switch	01	Appelez-nous	-
73	3807W207-45		Support, Ov Bot Bar Assy	01	Appelez-nous	-
74	3807F226-34		Prop, Main Top	01	Appelez-nous	-
74	3807F205-45		Support, Oven Rear	01	Appelez-nous	-
75	W10124350		Not Required Part Or See Note	27	Appelez-nous	-
75	3807F219-51		Support, Therm Disc	01	Appelez-nous	-
76	3807F347-51		Support, Top Burner	01	Appelez-nous	-
77	3807F329-45		Support, Valve	01	Appelez-nous	-
78	7403P099-60		Switch, Ovn Lock Asy----na	27	Appelez-nous	-
78	7403P077-60		Switch----na	01	Appelez-nous	-
79	7403P188-60		Switch	01	Appelez-nous	-
79	7403P087-60		Switch, H.l. Fan	10	Appelez-nous	-
80	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
81	2001F035-00		Top, Main Black	01	Appelez-nous	-
81	7746P025-60		Trim, Main Top (left)	01	Appelez-nous	-
81	7746P026-60		Trim, Main Top (right)	01	Appelez-nous	-
82	8026P006-60		Tube, Air	01	Appelez-nous	-
83	7402P014-60		Cord, Power	01	Appelez-nous	-
