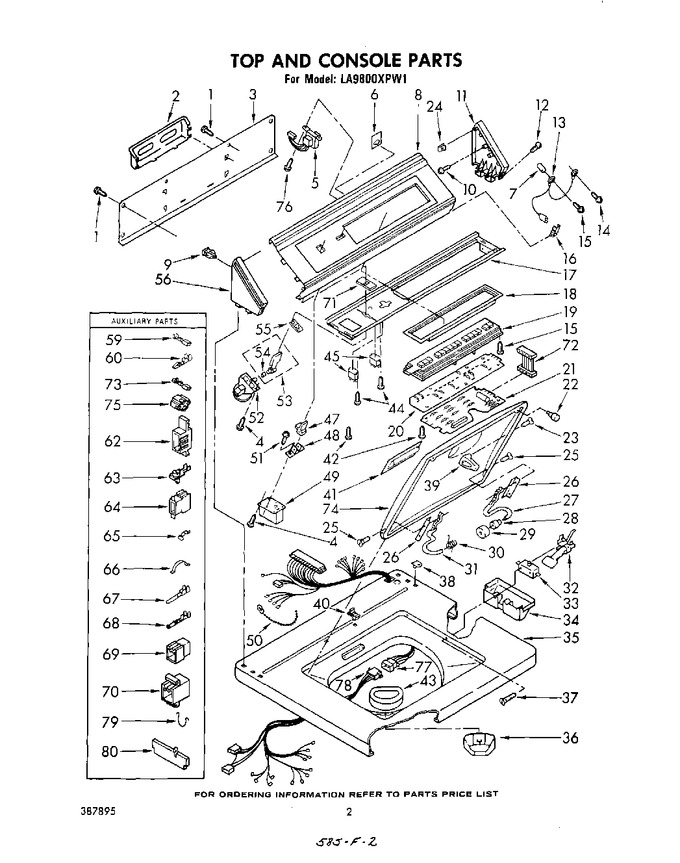

02 - Top And Console


03 - Drive


04 - Water Pump


05 - Cabinet


06 - Tub And Basket


07 - Gearcase


08 - Basket Drive And Brake


09 - Water System


10 - Miscellaneous , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 12.65
2	63020		Rack, Literature				$ 30.32
3	386367		Panel, Rear Console		Appelez-nous	-
4	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
5	60814		Transformer, Power		Appelez-nous	-
6	359525		Barrier, Harness		Appelez-nous	-
7	W10491983		Cap, Screw   (Replaces: 359702)		Appelez-nous	-
8	386796		Panel, Console		Appelez-nous	-
9	689559		Nut, End Cap (3)		Appelez-nous	-
10	355326		Screw, 13-16 X 5/8		Appelez-nous	-
11	63795		Cap, End. (r.h.)				$ 14.10
12	WP388326		Screw, 8-18   (Replaces: 64211)				$ 7.30
13	357535		Wire, Ground		Appelez-nous	-
14	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
16	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
17	386840		Bracket, Control		Appelez-nous	-
18	359787		Trim, Frame		Appelez-nous	-
19	385220		Module, Touch		Appelez-nous	-
20	61130		Display Assembly		Appelez-nous	-
21	61266		Microcomputer Assembly		Appelez-nous	-
22	WP9724509		Bumper, Rubber (2)   (Replaces: 93770)			Immediately	$ 7.14
23	354975		Screw & Washer		Appelez-nous	-
24	98084		Clip, End Cap (1)		Appelez-nous	-
25	WPW10119828		Screw, Hinge Mounting (4)   (Replaces: 18724)			Immediately	$ 6.47
26	WP21097		Pad, Hinge (2)   (Replaces: 21097)				$ 7.02
27	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 24.71
28	WP21258		Bearing, Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
29	91605		Bumper, Lid Hinge		Appelez-nous	-
30	DE81-05611A		Spring, Lid   (Replaces: 92398)				$ 150.30
31	91099		Hinge, Lid (l.h.)		Appelez-nous	-
32	370959		Actuator, Switch				$ 33.01
33	W10820036		Switch, Lid (alt.)   (Replaces: 367034)			Immediately	$ 27.45
33	W10820036		Switch, Lid   (Replaces: 660308)			Immediately	$ 27.45
33	00-6163		Switch, Lid (alt.)   (Replaces: 364090)				$ 22.92
33	W10820036		Switch, Lid (alt.)   (Replaces: 364091)			Immediately	$ 27.45
34	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
35	386322		Top (platinum)		Appelez-nous	-
35	386323		Top (golden Harvest)		Appelez-nous	-
35	386320		Top (almond)		Appelez-nous	-
35	386321		Top (toast)		Appelez-nous	-
35	386319		Top (white)		Appelez-nous	-
36	352827		Tray, Dispenser		Appelez-nous	-
37	354764		Screw & Washer		Appelez-nous	-
38	358473		Nut, Push-in (2)				$ 5.84
39	357633		Strike, Lid Switch		Appelez-nous	-
40	358472		Stop, Push-in Top		Appelez-nous	-
41	379888		Handle, Lid (golden Harvest)		Appelez-nous	-
41	379884		Handle, Lid (white)		Appelez-nous	-
41	379891		Handle, Lid (platinum)		Appelez-nous	-
41	379890		Handle, Lid (toast)		Appelez-nous	-
41	379885		Handle, Lid (almond)		Appelez-nous	-
42	690756		Screw (11)		Appelez-nous	-
43	352821		Bezel, Dispenser		Appelez-nous	-
44	339583		Screw, 6-20 X 1/2		Appelez-nous	-
45	384674		Relay, Hi & Lo Motor (2)		Appelez-nous	-
47	358564		Lever, Push To Start		Appelez-nous	-
48	358563		Pivot, Lever		Appelez-nous	-
49	383731		Relay Push To Start		Appelez-nous	-
50	WPW10339879		Tie, Harness Wire   (Replaces: 384031)				$ 7.11
51	WPW10068250		Screw, 8 X 5/16   (Replaces: 358644)				$ 3.66
52	359774		Switch, Water Level		Appelez-nous	-
53	358559		Lever, Water Level		Appelez-nous	-
54	599530307		Clip   (Replaces: 90015)		Appelez-nous	-
55	359068		Spacer, Slide		Appelez-nous	-
56	63789		Cap, End (l.h.)		Appelez-nous	-
59	308569		Terminal (use W/60688 Connector)		Appelez-nous	-
60	60279		Terminal, Edge Connector		Appelez-nous	-
62	96894		Plug, Terminal (15 Way)		Appelez-nous	-
63	357695		Ring, Grounding		Appelez-nous	-
64	96895		Cap, Terminal (15 Way)		Appelez-nous	-
65	WP98997		Clip, Harness   (Replaces: 98997)				$ 9.98
66	WP90016		Clip   (Replaces: 90016)				$ 10.19
67	94613		Terminal		Appelez-nous	-
68	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
69	94697		Cap, Terminal (use W/94613 Terminal)		Appelez-nous	-
70	94696		Plug, Terminal (use W/94614 Terminal)		Appelez-nous	-
71	358516		Slide, Switch		Appelez-nous	-
72	60862		Harness, Display Assembly		Appelez-nous	-
73	690367		Terminal		Appelez-nous	-
74	382800		Lid (toast)		Appelez-nous	-
74	379953		Lid (golden Harvest)		Appelez-nous	-
74	382801		Lid (platinum)		Appelez-nous	-
74	379949		Lid (white)		Appelez-nous	-
74	379950		Lid (almond)		Appelez-nous	-
75	359267		Terminal		Appelez-nous	-
76	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 12.65
77	385222		Harness, Console		Appelez-nous	-
78	359299		Harness, Base		Appelez-nous	-
79	16515		Clip, Harness				$ 17.60
80	60816		Edge Connector (18-circuit) (uses 60279 Terminal)		Appelez-nous	-
