SELECT A DIAGRAM

02 - Top And Console


03 - Drive


04 - Water Pump

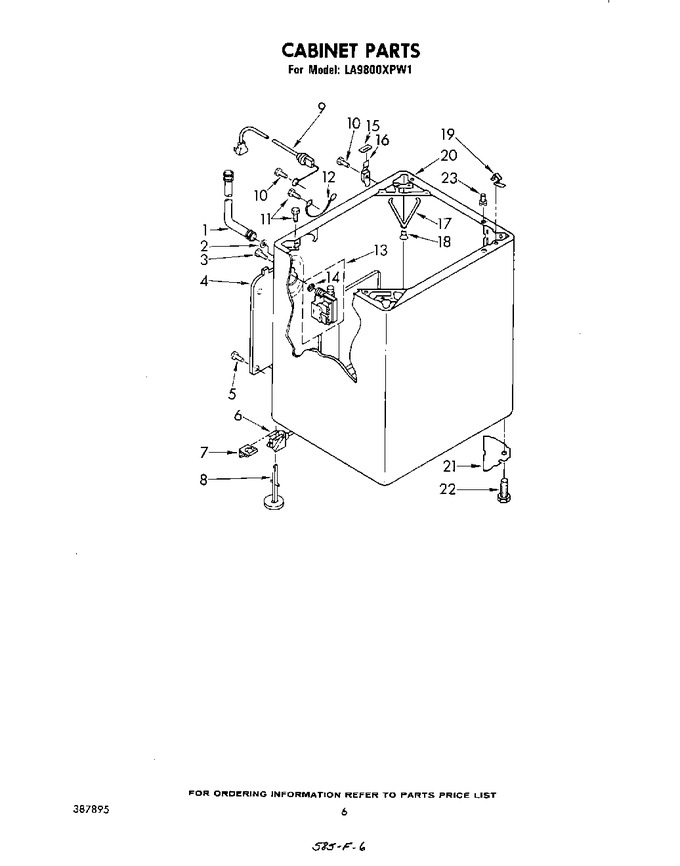

05 - Cabinet


06 - Tub And Basket


07 - Gearcase


08 - Basket Drive And Brake


09 - Water System


10 - Miscellaneous , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP89503		Hose, Inlet   (Replaces: 81339)			Immediately	$ 21.68
2	WP16123		Washer, Rubber (4)   (Replaces: 16123)				$ 6.93
3	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
4	85279		Panel, Rear		Appelez-nous	-
5	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
6	359059		Link, Leveling		Appelez-nous	-
7	WP359364		Clip, Leveling Mechanism (2)   (Replaces: 359364)			Immediately	$ 7.06
8	WP358594		Foot, Rear (2)   (Replaces: 358594)				$ 12.24
9	92667		Cord, Power		Appelez-nous	-
10	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
11	WP681414		Screw, 10-16 X 1/2   (Replaces: 359262)			Immediately	$ 7.07
12	364089		Wire, Ground		Appelez-nous	-
13	660749		Valve, Mixing		Appelez-nous	-
13	358971		Valve, Mixing (alt.) (serviced Only As Complete Assemblies)		Appelez-nous	-
13	358277		Valve, Mixing (alt.)			Immediately	$ 78.87
14	WP96160		Screen, Filter   (Replaces: 96160)				$ 10.54
15	18849		Pad, Hinge (2)				$ 18.13
16	92657		Hinge, L.h.		Appelez-nous	-
16	18775		Hinge, R.h.		Appelez-nous	-
17	358336		Spring, Snubber   (Replaces: 357977)			Immediately	$ 4.80
18	358336		Snubber			Immediately	$ 4.80
19	WP18776		Lock, Front Top   (Replaces: 18776)			Immediately	$ 11.41
20	384793		Cabinet (white)		Appelez-nous	-
20	386478		Cabinet (platinum)		Appelez-nous	-
20	386477		Cabinet (toast)		Appelez-nous	-
20	384797		Cabinet (golden Harvest)		Appelez-nous	-
20	384794		Cabinet (almond)		Appelez-nous	-
21	356459		Plate, Gusset		Appelez-nous	-
22	WP367594		Foot, Front (2)   (Replaces: 367594)			Immediately	$ 18.46
23	98669		Locator, Top				$ 12.03

    View Diagram in Separate Window       Print Part List
