SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Control System
04 - Door\drawer
New Model Search:

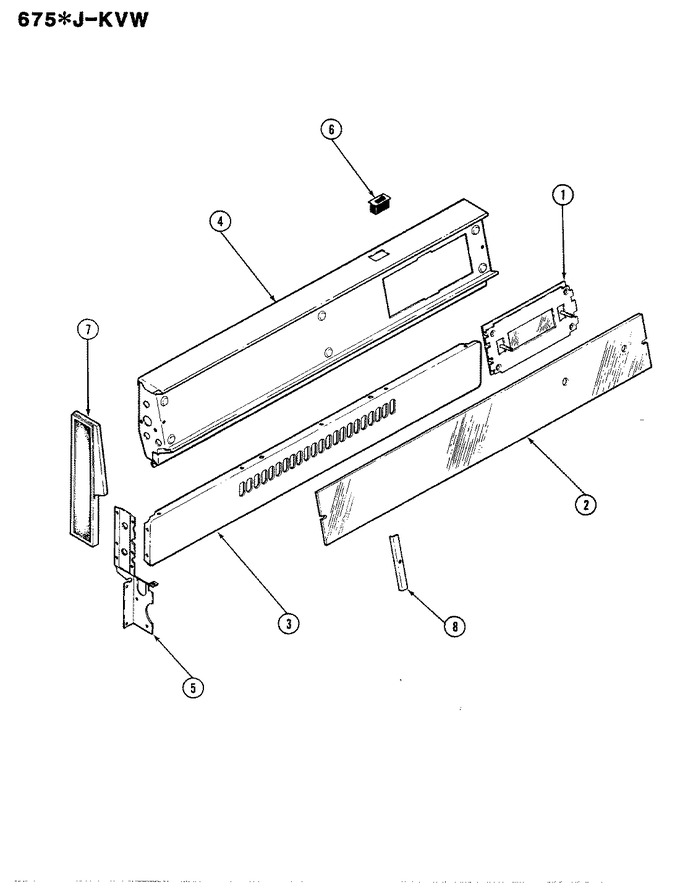

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005J106 | Cover, Bkgd Wire | 1 |
|
- | ||||
| 1 | 7602P063-60 | Clock | 1 |
|
- | ||||
| 1 | 7602P044-60 | + Clock | 1 |
|
- | ||||
| 2 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 2 | 7711P126-60 | Knob, Clock | 1 |
|
- | ||||
| 2 | 7902P286-60 | Glass, Bkgd | 1 |
|
- | ||||
| 3 | 2620W018-00 | Panel, Bkgd Lower | 1 |
|
- | ||||
| 4 | 2601W199-84 | Panel, Backguard | 1 |
|
- | ||||
| 4 | 2601W199-81 | Panel, Backguard White | 1 |
|
- | ||||
| 4 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 5 | 3807F012-80 | Support | 1 |
|
- | ||||
| 5 | 3807F010-80 | Support | 1 |
|
- | ||||
| 6 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 7 | 7726P008-60 | Trim, Bkgd. (lt) | 1 |
|
- | ||||
| 7 | 7726P019-60 | Trim, Bkgd. | 1 |
|
- | ||||
| 8 | 7720P088-60 | Trim, Glass Ret | 1 |
|
- |
