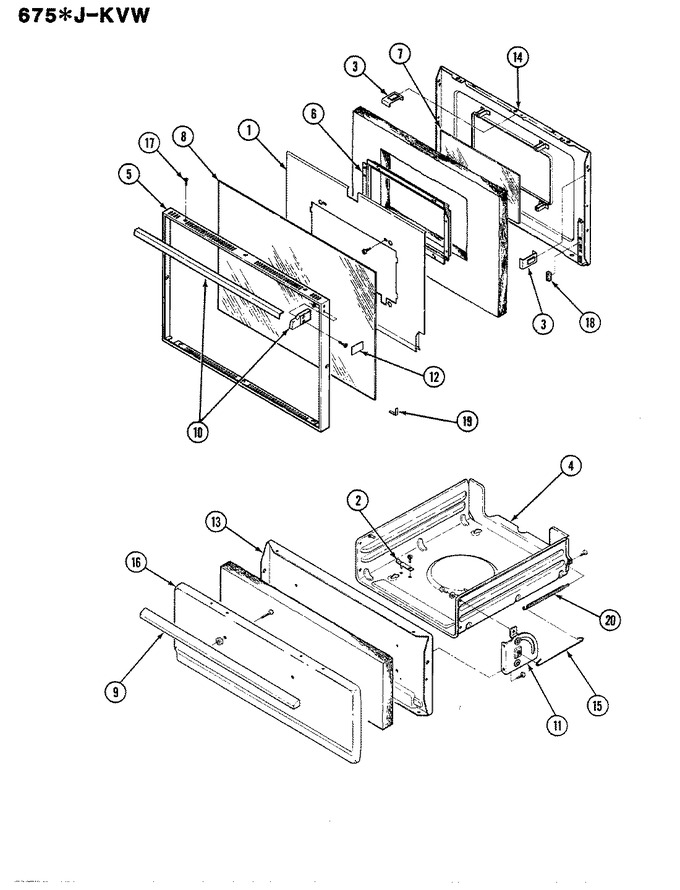

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F094-51 | Baffle, Oven Door | 1 |
|
- | ||||
| 2 | 8002P001-60 | Catch | 1 |
|
- | ||||
| 3 | 7112P034-60 | Clip, Door | 1 |
|
- | ||||
| 4 | 3407W009-11 | Drawer, Broiler | 1 |
|
- | ||||
| 5 | 7706P178-60 | Frame, Door | 1 |
|
- | ||||
| 6 | 7201P017-60 | Gasket, Window | 1 |
|
$ 52.69 | ||||
| 6 | 3603F013-80 | Frame, Window----na | 1 |
|
- | ||||
| 7 | 7902P035-60 | Glass, Door Inner | 1 |
|
- | ||||
| 8 | 7902P274-60 | Glass, Door | 1 |
|
- | ||||
| 9 | 7701P030-60 | Handle, Door (chr) | 1 |
|
- | ||||
| 10 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 11 | 3418A062-34 | Hinge, Broiler (rt) | 1 |
|
- | ||||
| 11 | 3418A063-34 | Hinge, Broiler (lt) | 1 |
|
- | ||||
| 12 | 7728P012-60 | Insert, Oven Door Handle | 1 |
|
- | ||||
| 13 | 2404F021-23 | Lining, Broiler | 1 |
|
- | ||||
| 14 | 2402W091-23 | Lining Assy, Ov Dr | 1 |
|
- | ||||
| 14 | 2402W091-16 | Lining Assy, Ov Dr | 1 |
|
- | ||||
| 15 | 7807P001-60 | Link, Broiler | 1 |
|
- | ||||
| 16 | 2416F025-71 | Panel, Drawer (wht) | 1 |
|
- | ||||
| 16 | 2416F025-74 | Panel, Drawer (alm) | 1 |
|
- | ||||
| 17 | 7101P123-60 | Screw | 1 |
|
- | ||||
| 18 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 19 | 8010P002-60 | Spacer, Handle | 1-33 |
|
- | ||||
| 19 | 8010P045-60 | Spacer, Glass Corner | 1 |
|
- | ||||
| 19 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 1-33 |
|
Immediately | $ 7.69 | |||
| 19 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 34 |
|
$ 5.82 | ||||
| 20 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 20 | 7803P014-60 | Spring | 1 |
|
- | ||||
| 20 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 |
