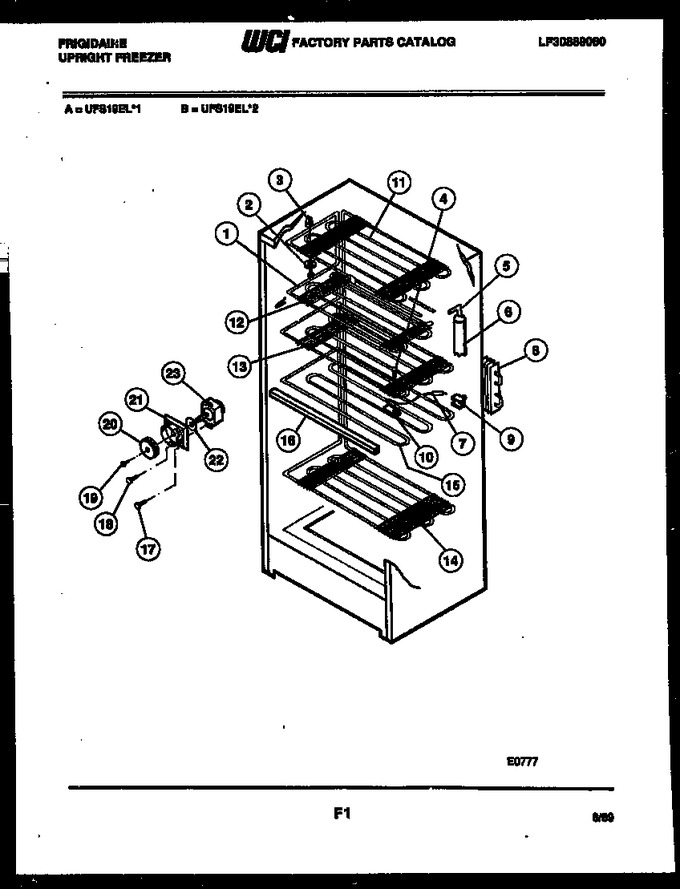

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08013446		Screw (3)		Appelez-nous	-
2	05878516		Spacer		Appelez-nous	-
3	06593408		Nut (3)		Appelez-nous	-
4	06593417		Screw		Appelez-nous	-
5	08010753		Heat Exchanger		Appelez-nous	-
6	09950837		Insulation		Appelez-nous	-
7	09950852		Insulator		Appelez-nous	-
8	08000459		Condenser (not Original Equipment. Service Replacement O		Appelez-nous	-
9	297001500		Front Peg Lh (3)   (Replaces: 08037928)				$ 18.08
10	06594662		Clamp		Appelez-nous	-
11	08037974		Shelf-evaporator		Appelez-nous	-
12	08037975		Shelf-evaporator		Appelez-nous	-
13	08037976		Shelf-evaporator		Appelez-nous	-
14	08037977		Shelf-evap Bottom		Appelez-nous	-
16	08037978		Trim Shelf		Appelez-nous	-
17	09949721		Screw		Appelez-nous	-
18	08003539		Screw (2)		Appelez-nous	-
19	09950853		Screw, Knob		Appelez-nous	-
20	08016364		Knob		Appelez-nous	-
21	08016370		Housing		Appelez-nous	-
22	08005527		Shield		Appelez-nous	-
23	08016351		Thermo Control		Appelez-nous	-
*19620	08001190		Roller Kit (not Original Equipment. Customer Purchase Op		Appelez-nous	-
9A	09949961		Front Peg Rh (3)		Appelez-nous	-
9B	09949960		Support, Rear		Appelez-nous	-
