02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System Parts
New Model Search:

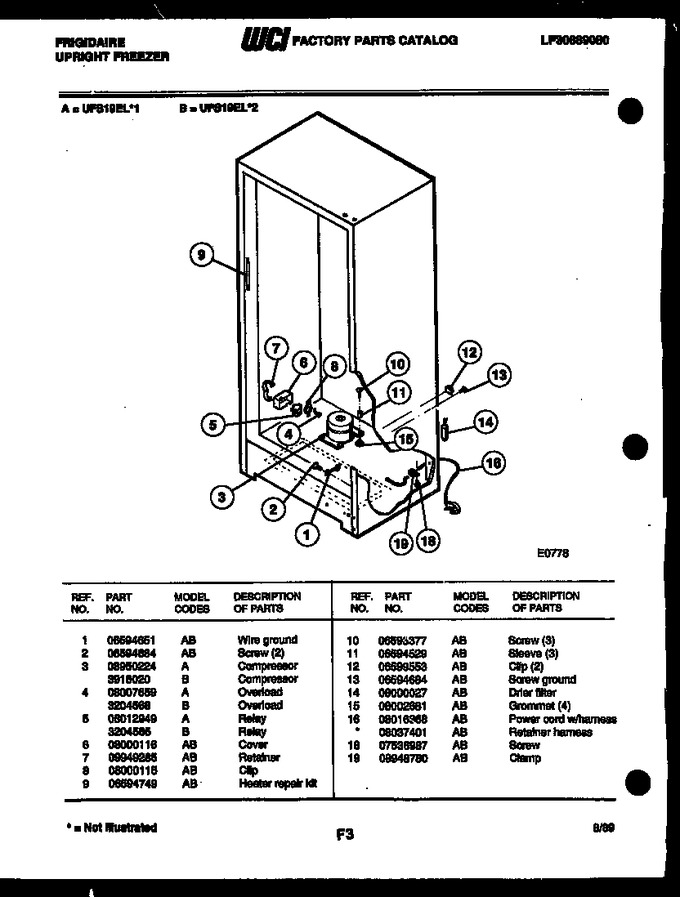

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 06594651 | Wire, Ground |
|
- | |||||
| 2 | 06594684 | Screw |
|
- | |||||
| 3 | 3916020 | Compressor |
|
- | |||||
| 4 | 3204568 | Overload |
|
- | |||||
| 5 | 3204565 | Relay |
|
- | |||||
| 6 | 08000116 | Cover |
|
- | |||||
| 7 | 09949285 | Retainer |
|
- | |||||
| 8 | 08000115 | Clip |
|
- | |||||
| 9 | 06594749 | Heater Repair Kit |
|
- | |||||
| 10 | 06593377 | Screw (3) |
|
- | |||||
| 11 | 06594529 | Sleeve (3) |
|
- | |||||
| 12 | 06599553 | Clip, Wires |
|
- | |||||
| 13 | 06594684 | Screw |
|
- | |||||
| 14 | 08000027 | Drier-filter |
|
- | |||||
| 15 | 08002681 | Grommet (4) |
|
- | |||||
| 16 | 08016368 | Power Cord W/ Harness |
|
- | |||||
| 18 | 07536987 | Screw |
|
- | |||||
| 19 | 09948780 | Clamp |
|
- | |||||
| 16A | 08037401 | Retainer Harness (non-illustrated) |
|
$ 2.85 |
