SELECT A DIAGRAM

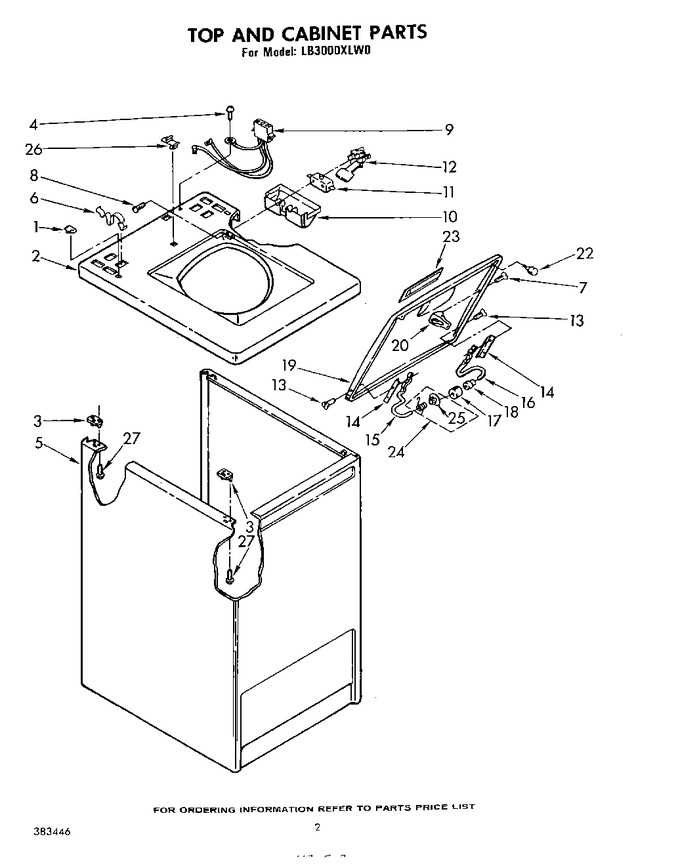

02 - Top And Cabinet , Literature And Optional


03 - Control And Rear Panel


04 - Agitator, Basket And Tub


05 - Miscellaneous


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Wiring Harness


08 - Machine Base


09 - Break And Drive Tube


10 - Gearcase


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	358473		Nut, Push-in (2)				$ 5.84
2	384063		Top (white)		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 6.92
4	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
5	62583		Cabinet (white)		Appelez-nous	-
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.02
7	354975		Screw & Washer		Appelez-nous	-
8	354764		Screw & Washer, Lid Switch (2)		Appelez-nous	-
9	62937		Harness, Lid Switch				$ 73.44
10	WP359231		Shield, Lid Switch   (Replaces: 359231)				$ 7.58
11	W10820036		Switch, Lid   (Replaces: 359230)			Immediately	$ 27.45
12	370959		Actuator, Lid Switch				$ 33.01
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 18724)			Immediately	$ 6.47
14	WP21097		Pad, Lid Hinge (2)   (Replaces: 21097)				$ 7.02
15	WP54584		Hinge, Lid (l.h.)   (Replaces: 54584)				$ 30.09
16	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 24.71
17	19119		Bumper, Lid Hinge				$ 5.75
18	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
19	373491		Lid (white)		Appelez-nous	-
20	357633		Strike, Lid Switch		Appelez-nous	-
22	WP9724509		Bumper, Lid (2)   (Replaces: 93770)			Immediately	$ 7.14
23	WP686711		Handle, Lid (white)   (Replaces: 94941)			Immediately	$ 7.16
24	53749		Spring & Button, Lid		Appelez-nous	-
25	54690		Plug, Button		Appelez-nous	-
26	358472		Stop, Push-in Top		Appelez-nous	-
27	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86
27	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
27	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)				$ 93.95
27	383446		List, Repair Parts		Appelez-nous	-
27	350941		Leveler (thinner)		Appelez-nous	-
27	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
27	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
27	799351		Thinner (1 Gal.)		Appelez-nous	-
27	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
27	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 82.45
27	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 384435)			Immediately	$ 7.07
27	358770		Guide, Laundry		Appelez-nous	-
27	378950		Sheet, Installation Instructions		Appelez-nous	-
27	383157		Instructions, Operating		Appelez-nous	-
27	383356		Label, Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
