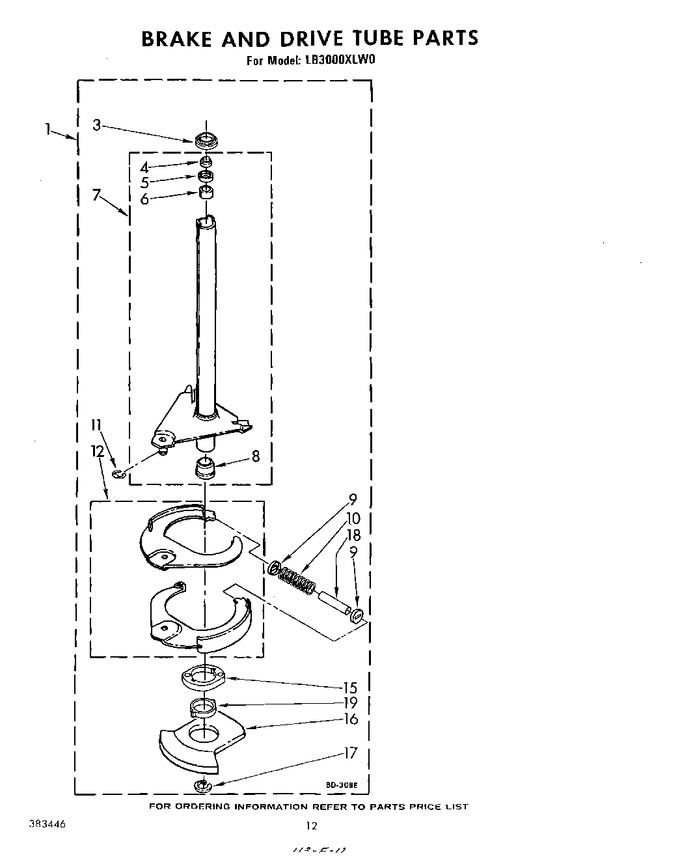

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10820043 | Brake & Tube (complete) (Replaces: 62706) |
|
Immediately | $ 195.58 | ||||
| 3 | WP62658 | Ring, Thrust (Replaces: 62658) |
|
Immediately | $ 11.17 | ||||
| 4 | WP91939 | Seal. Oil (Replaces: 91939) |
|
Immediately | $ 6.47 | ||||
| 5 | WP356427 | Seal, Drive Tube (Replaces: 356427) |
|
Immediately | $ 6.47 | ||||
| 6 | 356937 | Spacer, Agitator Shaft |
|
- | |||||
| 7 | W10820043 | Tube, Basket Drive (includes Illus. 4, 5, 6 & 8) (Replaces: 62659) |
|
Immediately | $ 195.58 | ||||
| 8 | 62703 | ``t`` Bearing, Spin Tube |
|
Immediately | $ 277.74 | ||||
| 9 | 285658 | Cap, Brake Spring (2) (Replaces: 62648) |
|
$ 9.61 | |||||
| 10 | WP62647 | Spring, Brake (Replaces: 62995) |
|
$ 6.16 | |||||
| 11 | WP354987 | Ring, Retaining (Replaces: 354987) |
|
Immediately | $ 10.58 | ||||
| 12 | W10820043 | Brake Shoe (Replaces: 62656) |
|
Immediately | $ 195.58 | ||||
| 15 | WP8546461 | Cam, Brake Release (Replaces: 63023) |
|
$ 7.48 | |||||
| 16 | 285790 | Driver, Brake Cam (Replaces: 62705) |
|
Immediately | $ 38.92 | ||||
| 17 | W11033823 | Ring, Retaining (Replaces: 90368) |
|
$ 11.21 | |||||
| 18 | 285658 | Sleeve, Brake Spring (Replaces: 62909) |
|
$ 9.61 | |||||
| 19 | WP63022 | Sleeve, Cam (Replaces: 63022) |
|
$ 41.30 | |||||
| 19 | 285208 | Lubricant (use Only In Brake Shoe Assembly On Roller & Pin |
|
$ 41.86 |
