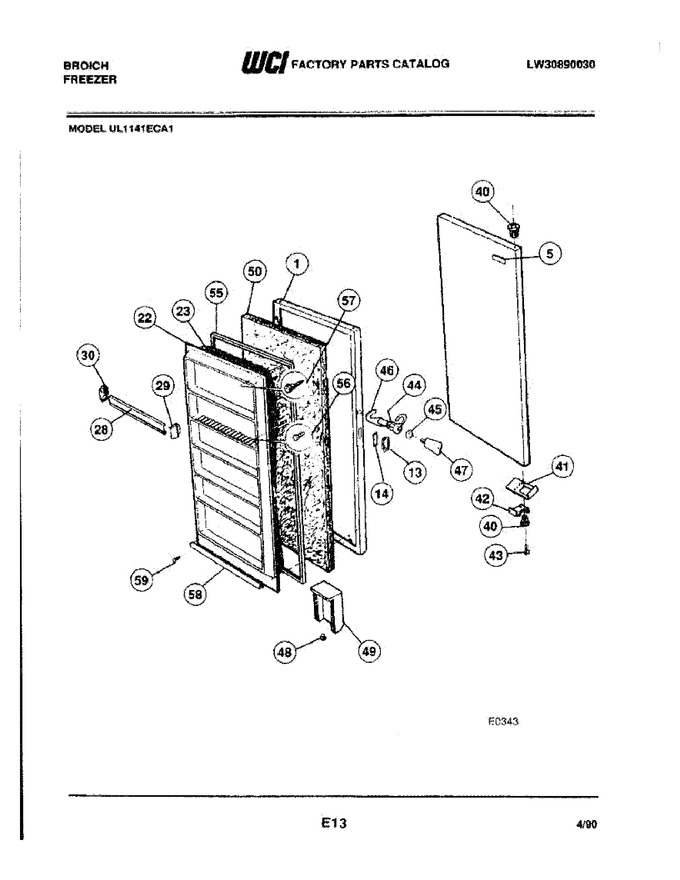

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017735		Door Panel (almd)		Appelez-nous	-
5	3206040		Nameplate		Appelez-nous	-
13	08037982		Handle Recessed		Appelez-nous	-
14	08009392		Gasket Handle		Appelez-nous	-
22	F000129634		Panel Inner		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	3017745		Shelf Front Narrow		Appelez-nous	-
29	F91776		End Cap Rh Narrow		Appelez-nous	-
30	F91776		End Cap Lh Narrow		Appelez-nous	-
40	08016490		Bearing-bottom		Appelez-nous	-
40	5306593364		Bearing-top		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5300190358		Lock-complete		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	3202005		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve, Breather				$ 12.48
49	5300128421		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
55	3206239		Gasket-door		Appelez-nous	-
56	216858001		Screw-door Panel   (Replaces: 5303161215)			Immediately	$ 10.85
57	08009384		Screw-panel		Appelez-nous	-
58	F125009		Gasket		Appelez-nous	-
59	5303091422		Rivet Gasket		Appelez-nous	-
