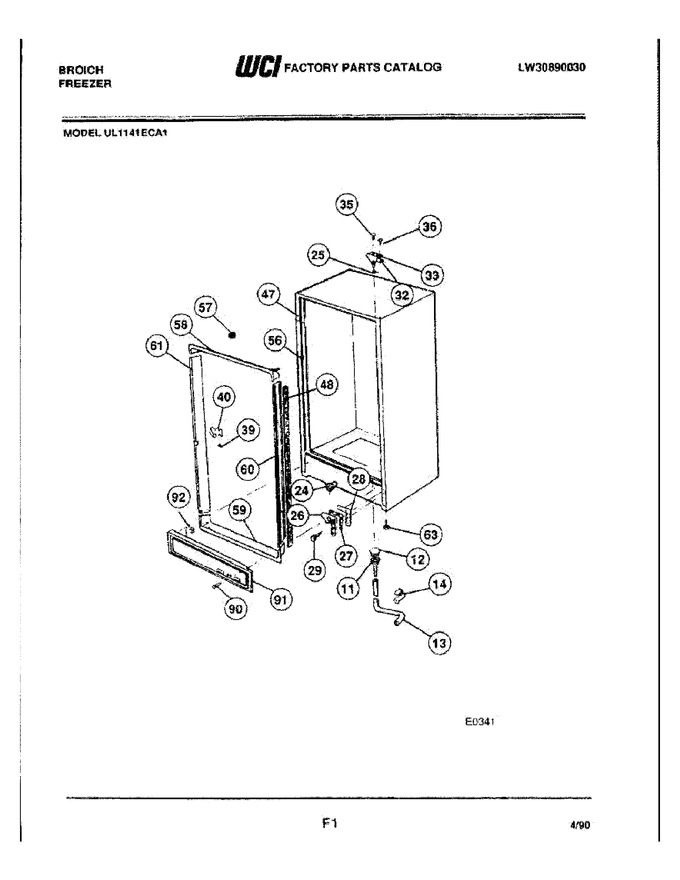

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
24	F000900253		Ramp Door Closer		Appelez-nous	-
25	08016490		Bearing Hinge		Appelez-nous	-
26	5306594549		Hinge-bottom		Appelez-nous	-
27	5303207296		Spacer		Appelez-nous	-
28	06594550		Plate		Appelez-nous	-
29	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
32	06593894		Plate		Appelez-nous	-
33	5308037946		Hinge-top				$ 56.91
35	06593898		Screw		Appelez-nous	-
36	08037848		Screw Top Hinge-rear		Appelez-nous	-
39	216858001		Screw-latch Catch   (Replaces: 5303161215)			Immediately	$ 10.85
40	5309949966		Latch-catch		Appelez-nous	-
47	09950831		Insulation		Appelez-nous	-
48	09950831		Insulation		Appelez-nous	-
56	06594680		Clip, Breaker		Appelez-nous	-
57	08037937		Spacer Top Breaker		Appelez-nous	-
58	08009374		Breaker-top		Appelez-nous	-
59	08009375		Breaker-bottom		Appelez-nous	-
60	08009376		Breaker-hinge		Appelez-nous	-
61	5312297264		Breaker Lock Side		Appelez-nous	-
63	5303205540		Leveling Leg		Appelez-nous	-
90	F125041		Pin Fastener		Appelez-nous	-
91	3206061		Toe Grille		Appelez-nous	-
92	5300118003		Bumper		Appelez-nous	-
