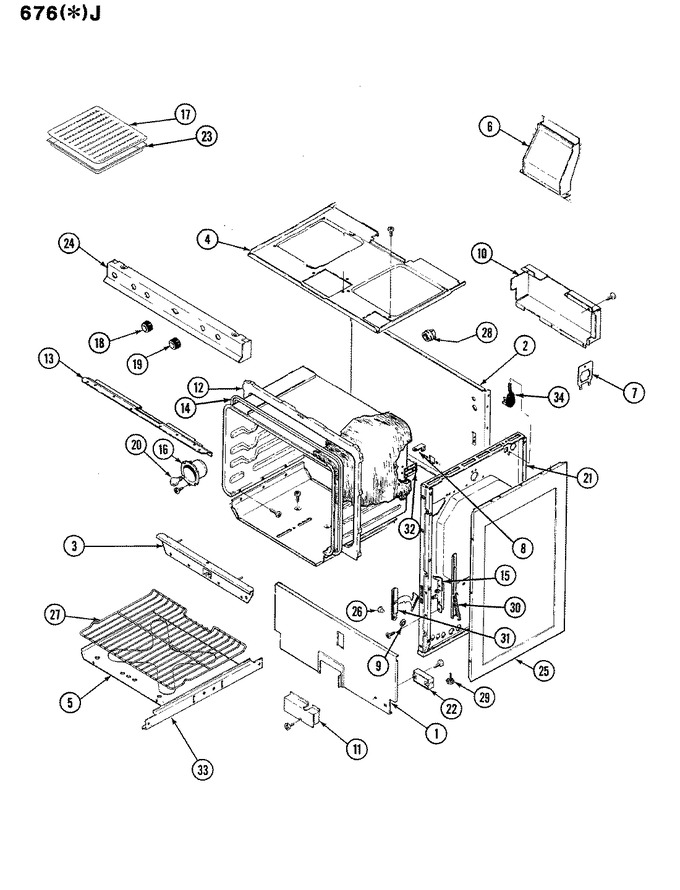

01 - Body
02 - Control Panel
03 - Control System
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F097-45 | Back, Broiler Section | 1-37 |
|
- | ||||
| 1 | 4002F123-45 | Back, Broil | 38 |
|
- | ||||
| 2 | 4002F094-80 | Back, Main | 1 |
|
- | ||||
| 3 | 3601W124-16 | Baffle, Ovn Front | 1 |
|
- | ||||
| 3 | 7401P010-60 | Block, Upper Discont | 1 |
|
- | ||||
| 3 | 4011F146-80 | Bottom, Broiler | 1 |
|
- | ||||
| 3 | 7401P006-60 | Block, Disconnect | 1 |
|
- | ||||
| 3 | 3601F059-45 | Baffle, Oven Top | 1 |
|
- | ||||
| 3 | 3601W124-23 | Baffle, Oven Frt | 1 |
|
- | ||||
| 4 | 4011F095-80 | Bottom, Burner Box | 1 |
|
- | ||||
| 5 | 2205F012-24 | Bottom, Oven | 1 |
|
- | ||||
| 5 | 2205F012-17 | Bottom, Oven | 1 |
|
- | ||||
| 6 | 4006W026-80 | Box, Flue | 1 |
|
- | ||||
| 7 | 3801F021-45 | Bracket | 1 |
|
- | ||||
| 8 | 3801F101-80 | Bracket, Tie Down | 1 |
|
- | ||||
| 8 | 3801F049-34 | Bracket,control Panel (l) | 1 |
|
- | ||||
| 8 | 3801F205-45 | Bracket, Module Support | 38 |
|
- | ||||
| 8 | 3801F180-45 | Bracket, Spark Module | 1-37 |
|
- | ||||
| 8 | 3801F047-34 | Bracket,control Panel (r) | 1 |
|
- | ||||
| 9 | 7112P030-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 9 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 9 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 10 | 4005F167-80 | Cover, Module | 1 |
|
- | ||||
| 10 | 4005F088-80 | Cover | 1 |
|
- | ||||
| 11 | 4005F173-51 | Cover, Valve Terminal | 1 |
|
- | ||||
| 11 | 2201F034-23 | Front, Oven Lower | 1 |
|
- | ||||
| 12 | 2201F060-23 | Front, Oven Upper | 1 |
|
- | ||||
| 13 | 4012F019-80 | Front, Burner Box | 1 |
|
- | ||||
| 14 | 7212P001-60 | Seal | 1 |
|
- | ||||
| 14 | 3418F029-34 | Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 15 | 3418F030-34 | Hinge, Oven Door (rt) | 1 |
|
- | ||||
| 16 | 4001F016-23 | Housing, Lamp | 1 |
|
- | ||||
| 17 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 18 | 7711P185-60 | Knob, Therm | 1 |
|
- | ||||
| 19 | 7711P173-60 | Knob, Valve | 1 |
|
- | ||||
| 20 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 20 | 4009F044-45 | Lining, Side Broiler Comp. | 1 |
|
- | ||||
| 21 | 4009W040-80 | Lining, Inner Side | 1 |
|
- | ||||
| 22 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 22 | 7431P006-60 | Module, Spark | 1-37 |
|
- | ||||
| 22 | 7431P016-60 | Module, Spark | 38 |
|
- | ||||
| 23 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 24 | 7712A060-60 | Trim Assy, Manifold | 1 |
|
- | ||||
| 25 | 2618F052-71 | Panel, Side (wht) | 1 |
|
- | ||||
| 25 | 2618F052-74 | Panel, Side (alm) | 1 |
|
- | ||||
| 25 | 2618F052-77 | Panel, Side (avoc) | 1 |
|
- | ||||
| 25 | 2618F052-78 | Panel, Side Coffee | 1 |
|
- | ||||
| 26 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 27 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 28 | 3804F010-50 | Retainer | 1 |
|
- | ||||
| 28 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 29 | 4005F088-80 | Cover | 1 |
|
- | ||||
| 29 | Y7101P25460 | Leg, Leveling | 1 |
|
- | ||||
| 30 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 31 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 32 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 33 | 3404A014-51 | Track, Broiler Dwr Left | 1 |
|
- | ||||
| 33 | 3404A013-51 | Track, Broiler Dwr Right | 1 |
|
- | ||||
| 34 | 8112P033-60 | Manual, Use & Care | 27 |
|
- | ||||
| 34 | 8112P008-60 | Manual, Use & Care | 1-26 |
|
- | ||||
| 34 | 7402P024-60 | Cord, Power | 1 |
|
- |
