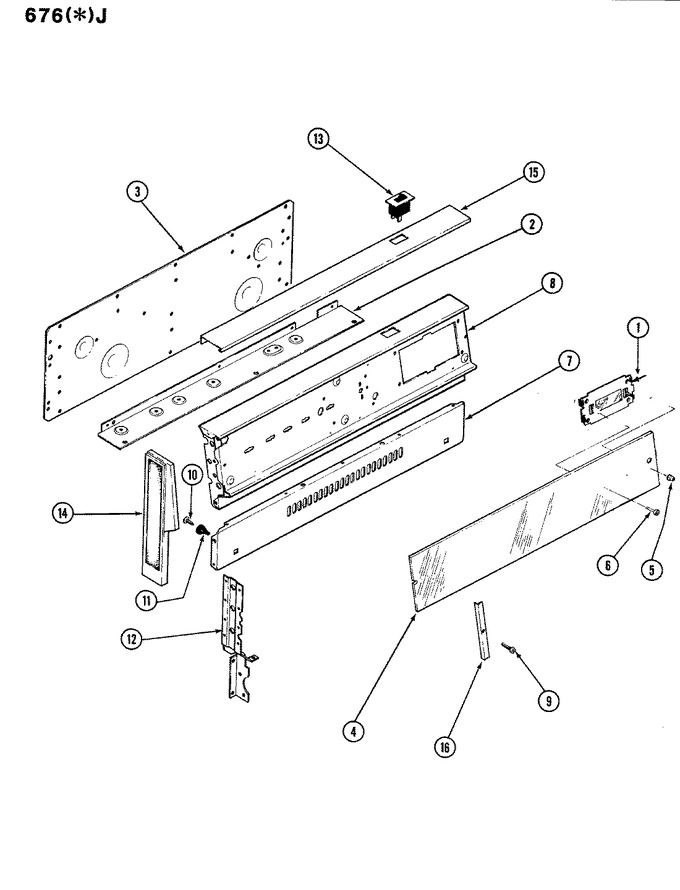

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Control System
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P057-60 | Clock | 1-37 |
|
- | ||||
| 1 | 7602P097-60 | Clock | 38 |
|
- | ||||
| 2 | 4005F034-80 | Cover, Bottom | 1 |
|
- | ||||
| 3 | 4005F195-80 | Cover, Backguard Wire | 1 |
|
- | ||||
| 4 | 7902P219-60 | Glass, Backguard | 1 |
|
- | ||||
| 5 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 6 | 7711P171-60 | Knob, Clock (button-blk) | 1 |
|
$ 19.90 | ||||
| 7 | 2620W018-90 | + Panel, Bkgd Lower | 1 |
|
- | ||||
| 8 | 2601W199-88 | Panel, Bkgd Coffee | 1 |
|
- | ||||
| 8 | 2601W199-84 | Panel, Backguard | 1 |
|
- | ||||
| 8 | 2601W199-86 | Panel, Bkgd Hvt Wheat | 1 |
|
- | ||||
| 8 | 2601W199-87 | Panel, Bkgd Avocado | 1 |
|
- | ||||
| 8 | 2601W199-81 | Panel, Backguard White | 1 |
|
- | ||||
| 9 | 7101P008-60 | Screw | 1 |
|
- | ||||
| 10 | WP4159193 | Screw (Replaces: 7101P115-60) | 1 |
|
$ 4.29 | ||||
| 11 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 12 | 3807F010-80 | Support | 1 |
|
- | ||||
| 12 | 3807F012-80 | Support | 1 |
|
- | ||||
| 13 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 14 | 7726P032-60 | Trim, Bkgd End (rt) | 1 |
|
- | ||||
| 14 | 7726P031-60 | Trim, Bkgd End (lt) | 1 |
|
- | ||||
| 15 | 7715P015-60 | Trim, Backguard Top | 1 |
|
- | ||||
| 16 | 7720P088-60 | Trim, Glass Ret | 1 |
|
- |
