SELECT A DIAGRAM

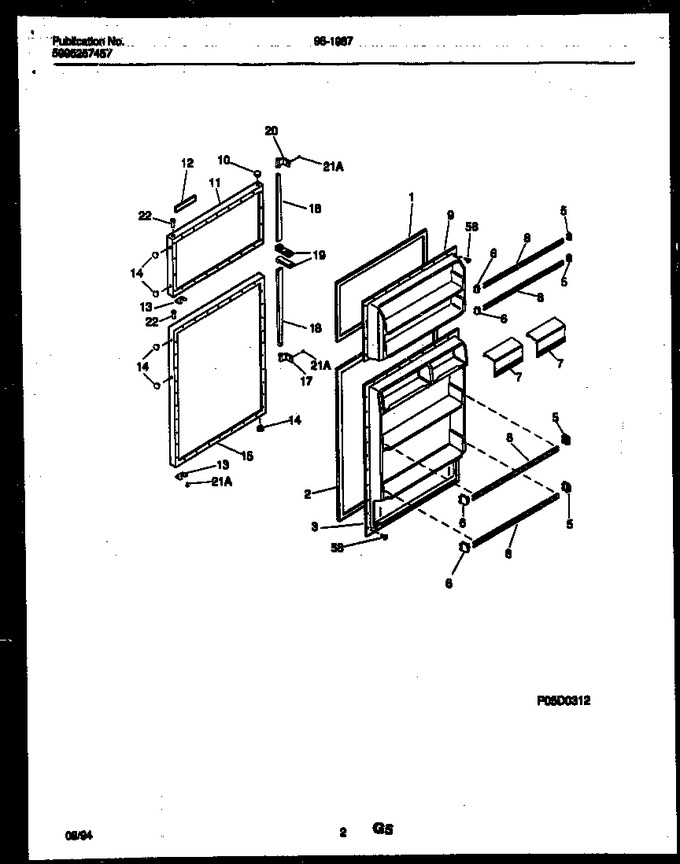

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001486 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5308015544 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5303289935 | Panel-inner Door, Refr |
|
- | |||||
| 5 | 5303001410 | Support-door Rack, Rh, (4) |
|
- | |||||
| 6 | 5303001411 | Support-door Rack, Lh, (4) |
|
- | |||||
| 7 | 5303001415 | Door-dairy |
|
- | |||||
| 8 | 5303016720 | Rack-door |
|
- | |||||
| 9 | 3001485 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5317869011 | Panel-frzr Door, Almond |
|
- | |||||
| 12 | 3001312 | Frame-nameplate |
|
- | |||||
| 13 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5317869411 | Panel-refr Door, Almond |
|
- | |||||
| 17 | 5303001295 | Handle - End Bottom |
|
- | |||||
| 18 | 5303916805 | Handle-door, Black |
|
- | |||||
| 19 | 5303001296 | Handle-end Cap |
|
$ 86.36 | |||||
| 20 | 5303001297 | Handle End Top |
|
$ 70.22 | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *10630 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
