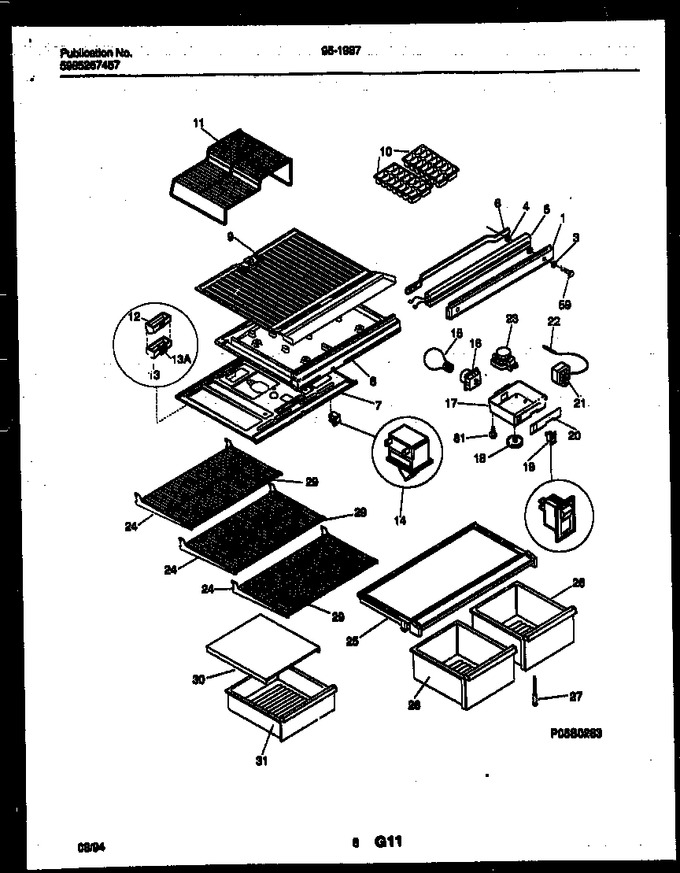

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200370 | Mullion, Almond |
|
- | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 5303200464 | Spacer-mullion Mtg, Steel |
|
- | |||||
| 5 | 5303270834 | Heater-mullion |
|
- | |||||
| 6 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 7 | 5303016367 | Top Panel-refr, W/snap Bushing |
|
- | |||||
| 8 | 5303001504 | Divider, Styrofoam |
|
- | |||||
| 9 | 5303211427 | Bottom Panel-frzr |
|
- | |||||
| 10 | 5303001324 | Tray-ice, Plastic |
|
- | |||||
| 11 | 3018155 | Shelf-freezer |
|
- | |||||
| 12 | 5308014667 | Deflector, Air |
|
- | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp |
|
- | |||||
| 16 | 5308000129 | Socket-light/lamp |
|
$ 62.16 | |||||
| 17 | 3001454 | Box-control |
|
- | |||||
| 18 | 5317478101 | Knob-temp Control |
|
- | |||||
| 19 | 5303001670 | Switch-energy Saver |
|
- | |||||
| 20 | 5303001339 | Label-control Box |
|
- | |||||
| 21 | 5308015762 | Control, Temperature |
|
- | |||||
| 22 | 5303916855 | Sleeve-plastic Tube |
|
$ 60.96 | |||||
| 23 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303001491 | Shelf-cantilever, Full, (3) |
|
- | |||||
| 25 | 5303001493 | Cover-crisper Pan |
|
- | |||||
| 26 | 5303001436 | Pan-crisper, Lh |
|
- | |||||
| 26 | 5303001437 | Pan-crisper, Rh |
|
- | |||||
| 27 | 5303205987 | Support-crisper Cvr, Adjustable |
|
$ 48.41 | |||||
| 29 | 3001492 | Trim-full Shelf, (3) |
|
- | |||||
| 30 | 3001495 | Cover, Meat Pan |
|
- | |||||
| 31 | 5303001494 | Pan-meat |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 12A | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 13A | 5303200590 | Extension, Air Deflector, With Insulation |
|
- | |||||
| 17A | 5308016567 | Nut-anchor (non-illustrated) |
|
- | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 7B | 5303212518 | Bushing, Snap-in, Plastic (non-illustrated) |
|
- | |||||
| 8A | 3001383 | Harness-wiring, Control/divider,(non-illustrated) |
|
- |
