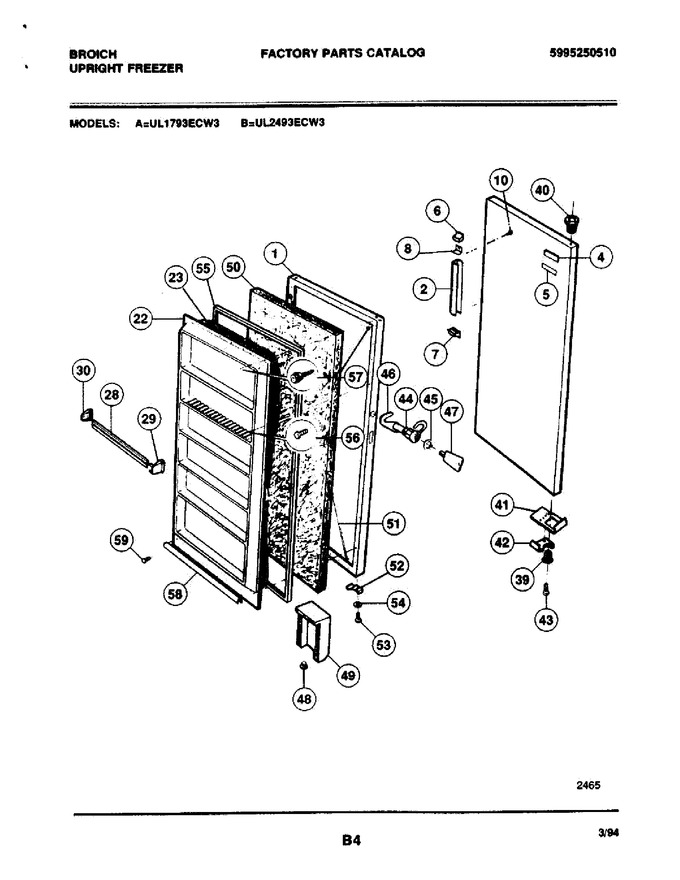

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216011601		Panel-outer Door		Appelez-nous	-
2	3206060		Handle Door		Appelez-nous	-
4	5303297073		Frame		Appelez-nous	-
5	5303297032		Nameplate		Appelez-nous	-
6	3206043		End Cap, Top		Appelez-nous	-
7	3206044		End Cap, Bottom		Appelez-nous	-
8	5300119930		Retainer Handle		Appelez-nous	-
10	5303285470		Screw-handle		Appelez-nous	-
22	216048801		Panel-inner-white		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	216155000		Shelf Front-wide		Appelez-nous	-
29	216257800		End Cap-rh-wide (6)		Appelez-nous	-
30	216257900		End Cap-lh-wide (6)		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5306593364		Bearing-top		Appelez-nous	-
41	5300091170		Reinforcement-door		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5303925107		Lock-complete		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	216013800		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve Breather (2)				$ 12.48
49	5303212700		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037986		Wire, Adjusting (2)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket (2)		Appelez-nous	-
54	09950839		Washer, Bracket (2)		Appelez-nous	-
55	3206261		Gasket Door				$ 254.52
56	216858001		Screw Door Panel (26)   (Replaces: 5303161215)			Immediately	$ 10.85
57	216022800		Screw, Panel (24)		Appelez-nous	-
58	5308016356		Gasket-white		Appelez-nous	-
59	5303212828		Clip, Gasket (5)				$ 16.63
	08016583		Washer		Appelez-nous	-
