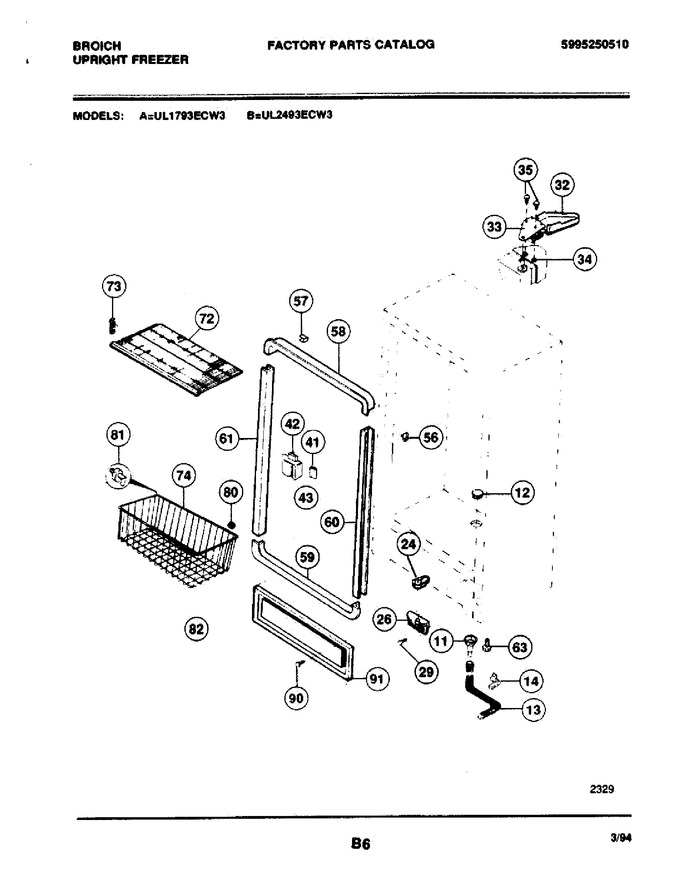

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
12	5306593887		Plug, Drain, Liner		Appelez-nous	-
13	216269600		Hose-drain		Appelez-nous	-
14	216273000		Clamp-drain Hose				$ 22.42
24	5303210424		Ramp, Door Closer		Appelez-nous	-
26	216247400		Hinge-bottom		Appelez-nous	-
29	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
32	5303212912		Cover, Hinge-white		Appelez-nous	-
33	5303212935		Hinge, Top		Appelez-nous	-
34	5303294372		Nut Insert				$ 43.68
35	5303212937		Screw-top Hinge		Appelez-nous	-
41	216013700		Clip Lock		Appelez-nous	-
42	216013600		Support, Lock		Appelez-nous	-
43	5309918806		Switch, Light			Immediately	$ 21.97
56	06594680		Clip, Breaker		Appelez-nous	-
57	08037937		Spacer-top Breaker (2)		Appelez-nous	-
60	216107501		Breaker Hinge		Appelez-nous	-
61	216107601		Breaker, Lock Side		Appelez-nous	-
63	205363701		Leveling Leg Adj. (4)		Appelez-nous	-
72	216260600		Dry Shelf		Appelez-nous	-
73	08016352		Support Dry Shelf (3)		Appelez-nous	-
74	216157200		Basket W/o Trim				$ 102.32
80	5305878546		Basket Stop (2)				$ 7.23
81	09948791		Stop, Basket		Appelez-nous	-
82	08009560		Glide Basket (4)				$ 35.25
90	5303302714		Pin Fastener (2)		Appelez-nous	-
91	3206063		Toe Grille		Appelez-nous	-
